HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000WE

HFM-SFI Fuel Injection/ignition System PE07.51-U-2000WE
- Interior compartment

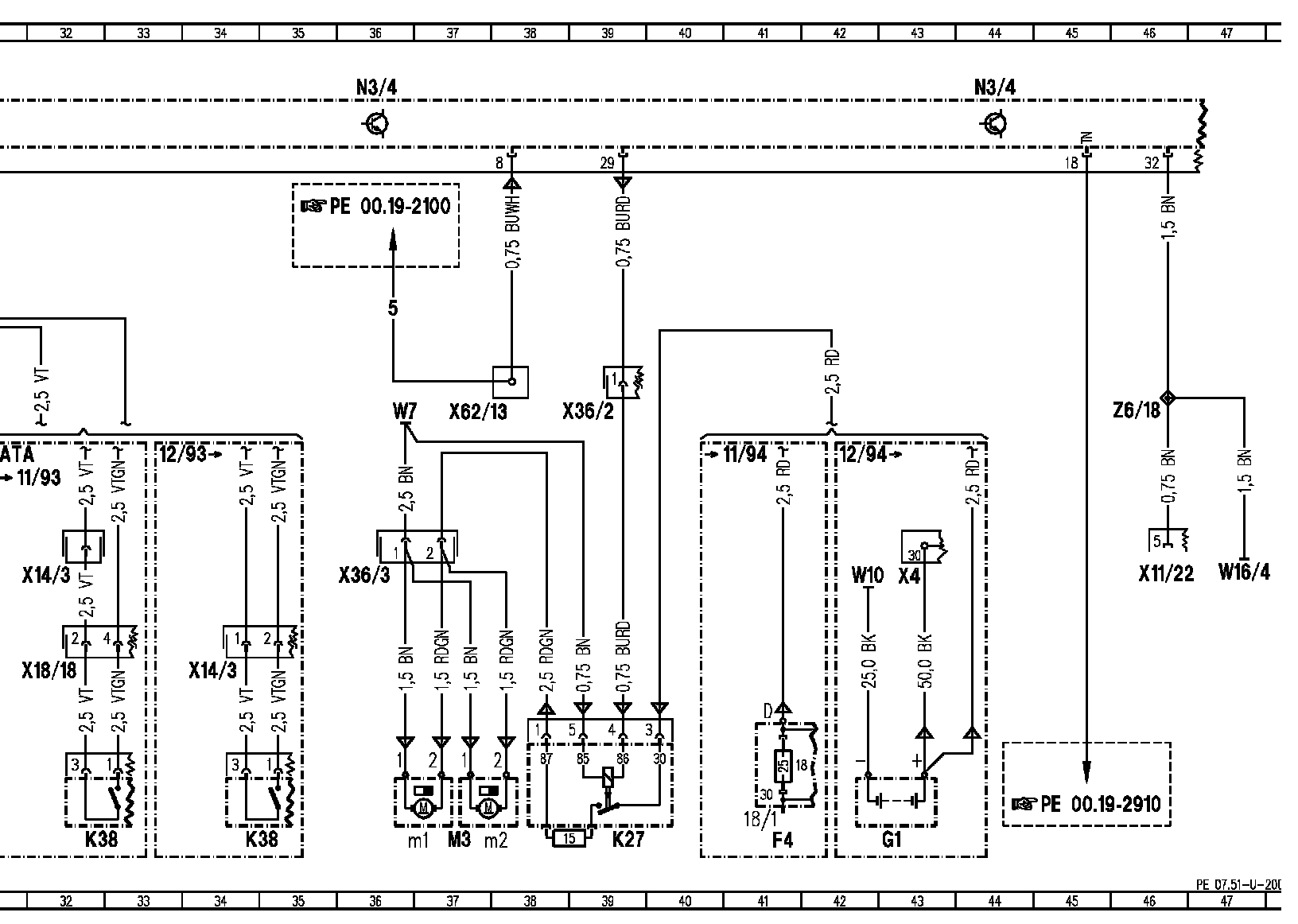

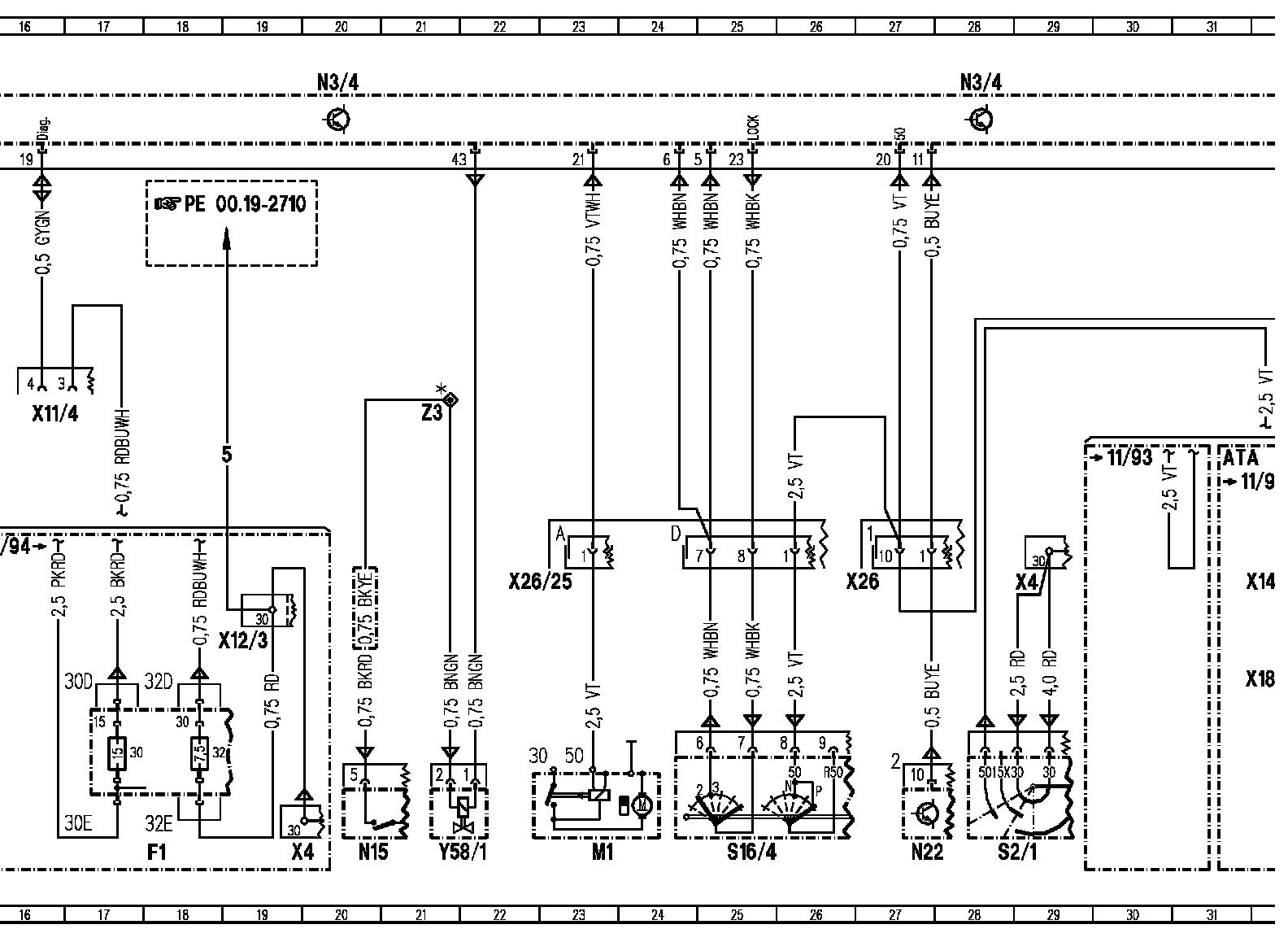

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

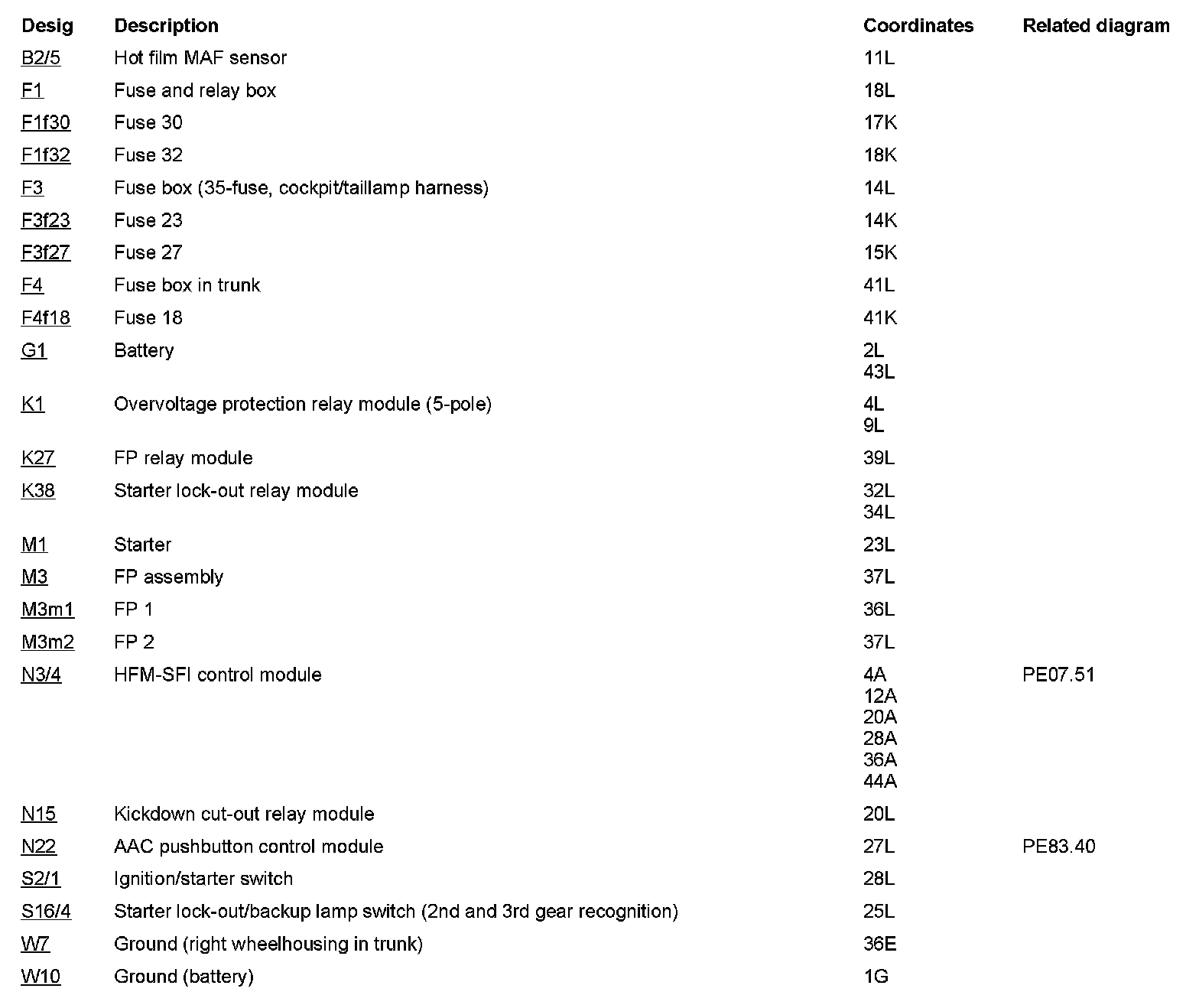

Component Description/Coordinates, B2/5 To W10:

Component Description/Coordinates, W16/4 To Z6/18:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
