HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000WF

HFM-SFI Fuel Injection/ignition System PE07.51-U-2000WF
- Engine compartment

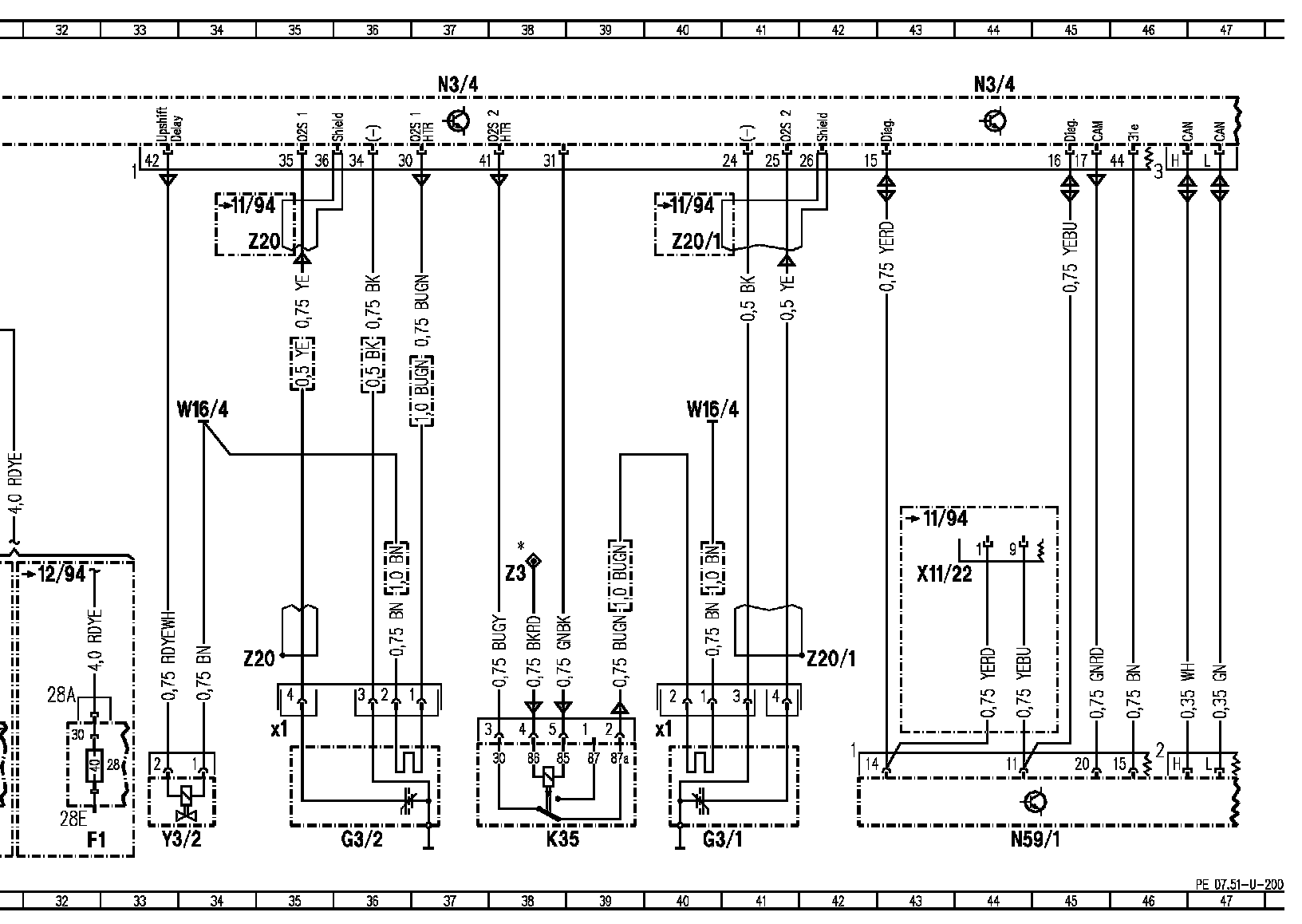

Wiring Diagram, Part 1:

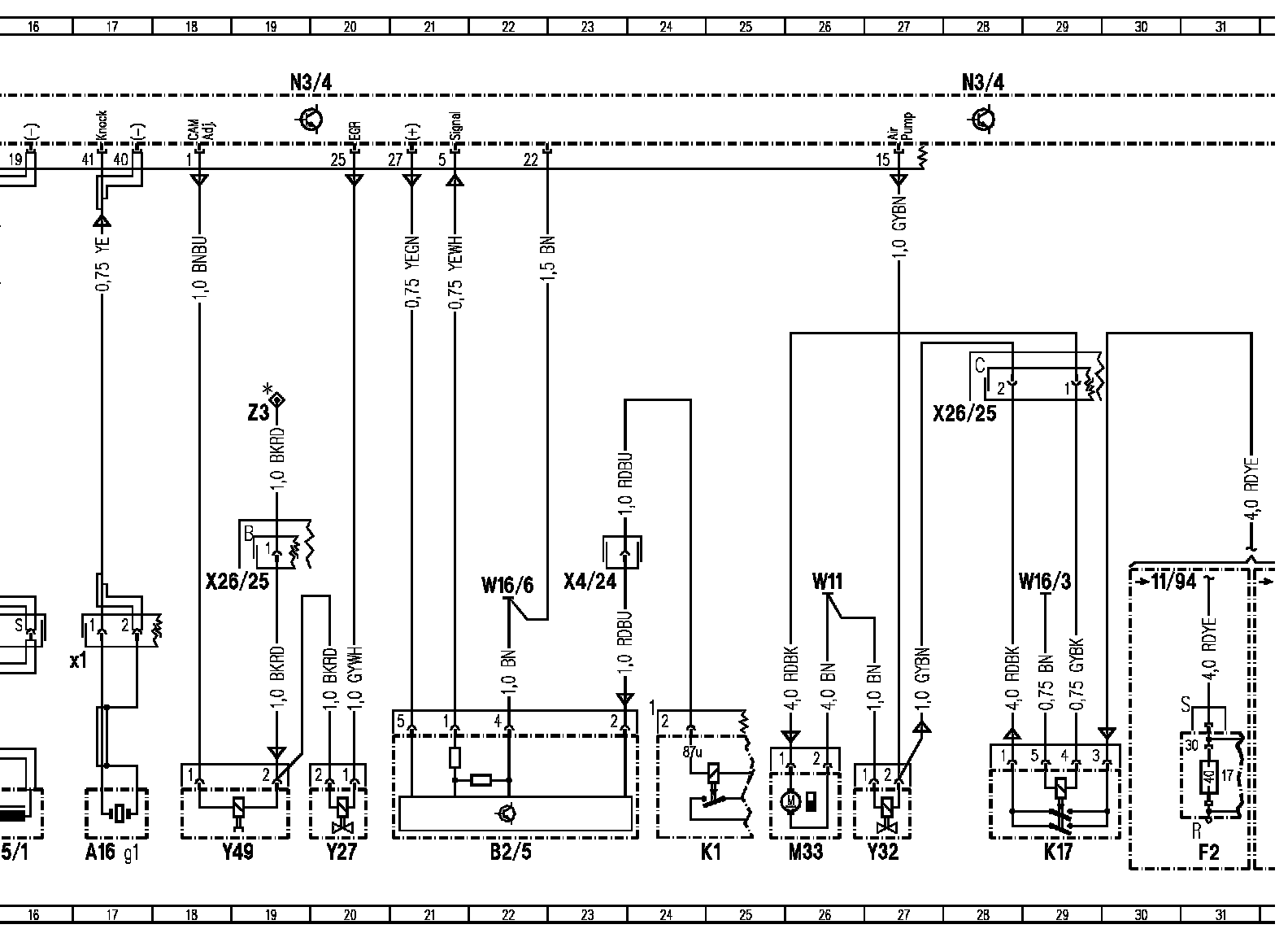

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Component Description/Coordinates, A16x1 To N3/4:

Component Description/Coordinates, N59/1 To Z96:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
