Headlamp Cleaning System (HCS) PE82.15-U-2000WA



Headlamp Cleaning System (HCS) PE82.15-U-2000WA

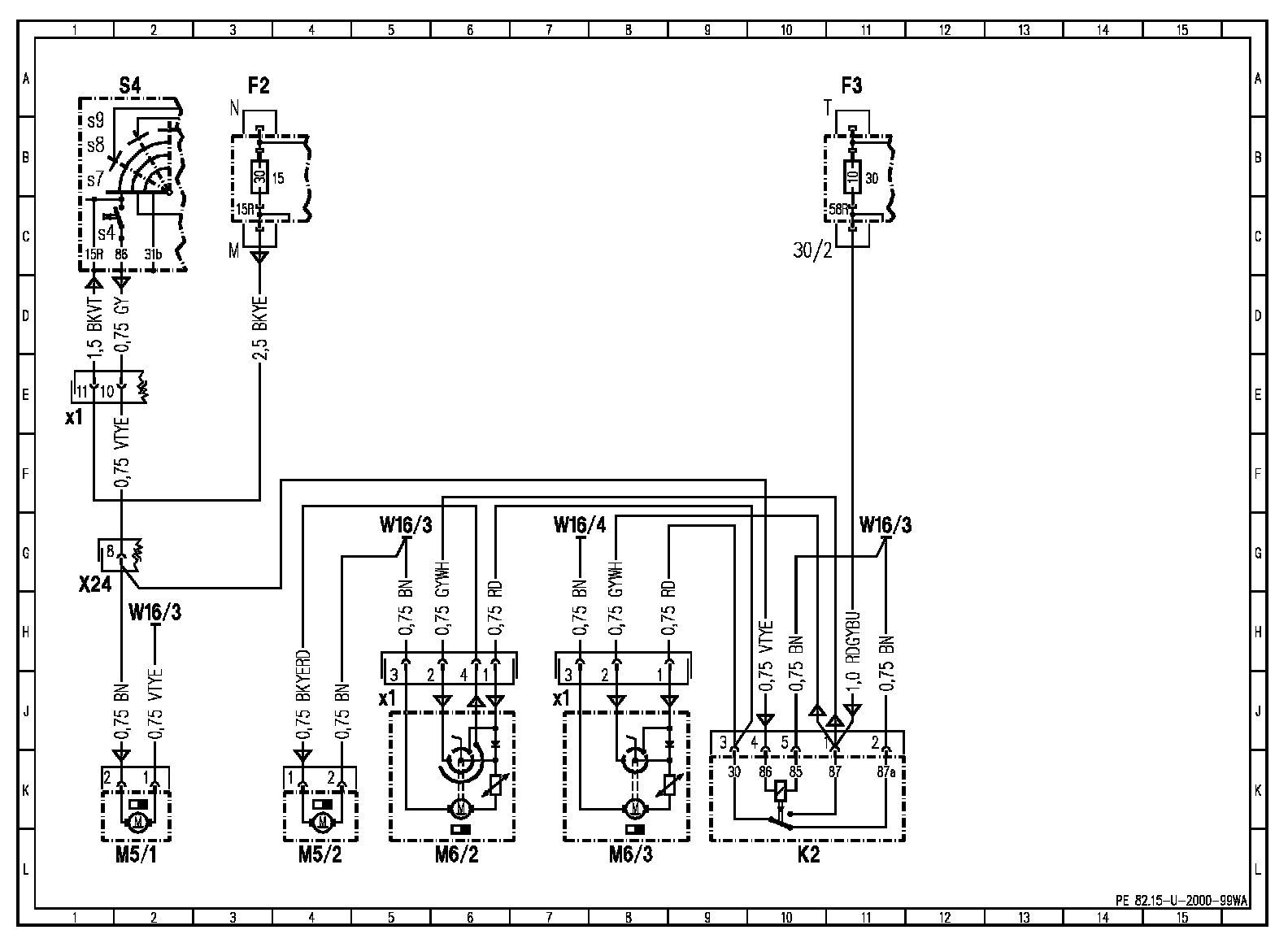

Wiring Diagram:

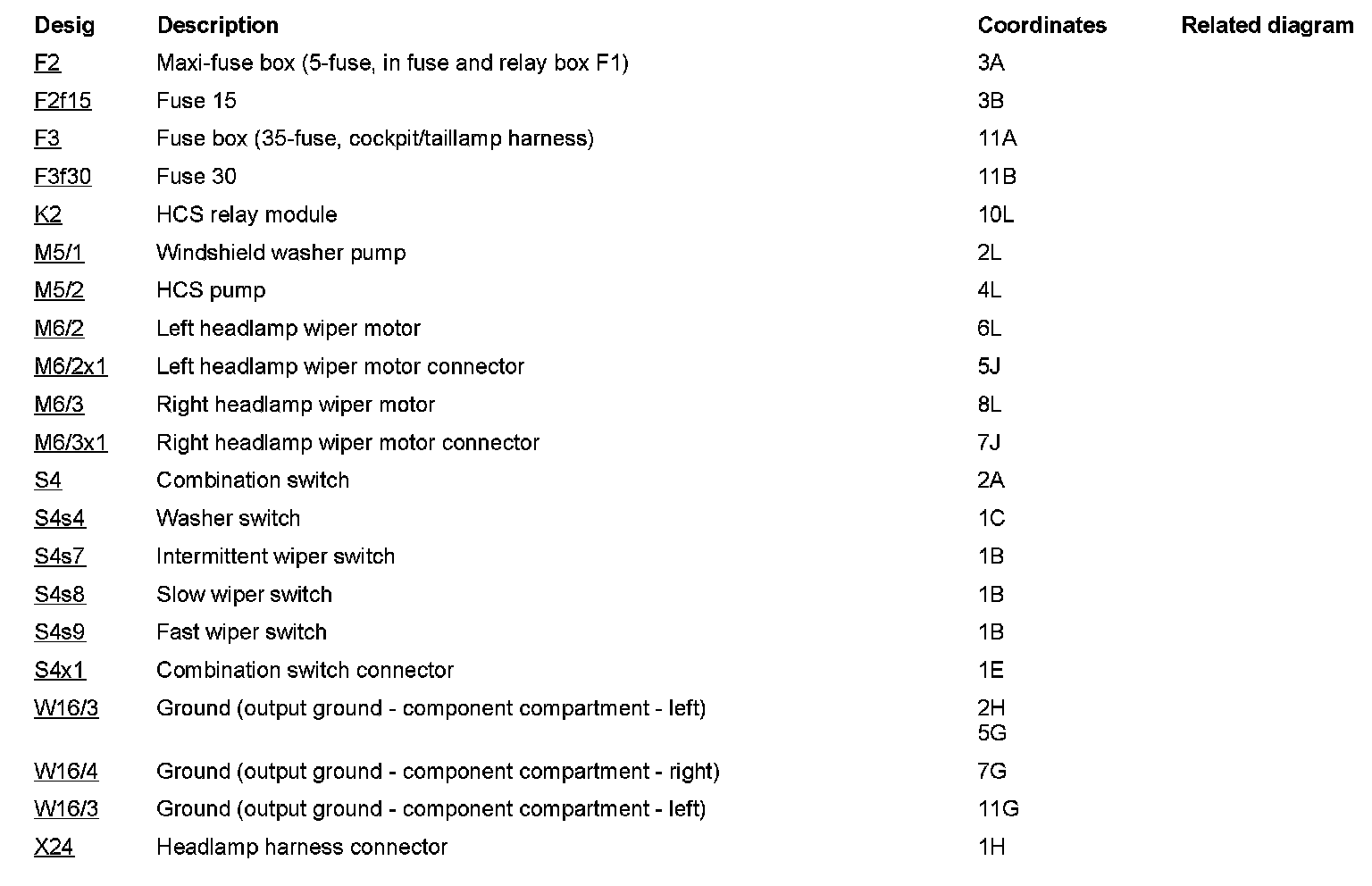

Component Description/Coordinates, F2 To X24:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
