Windshield Wiper PE82.30-U-2000WA



Windshield Wiper PE82.30-U-2000WA

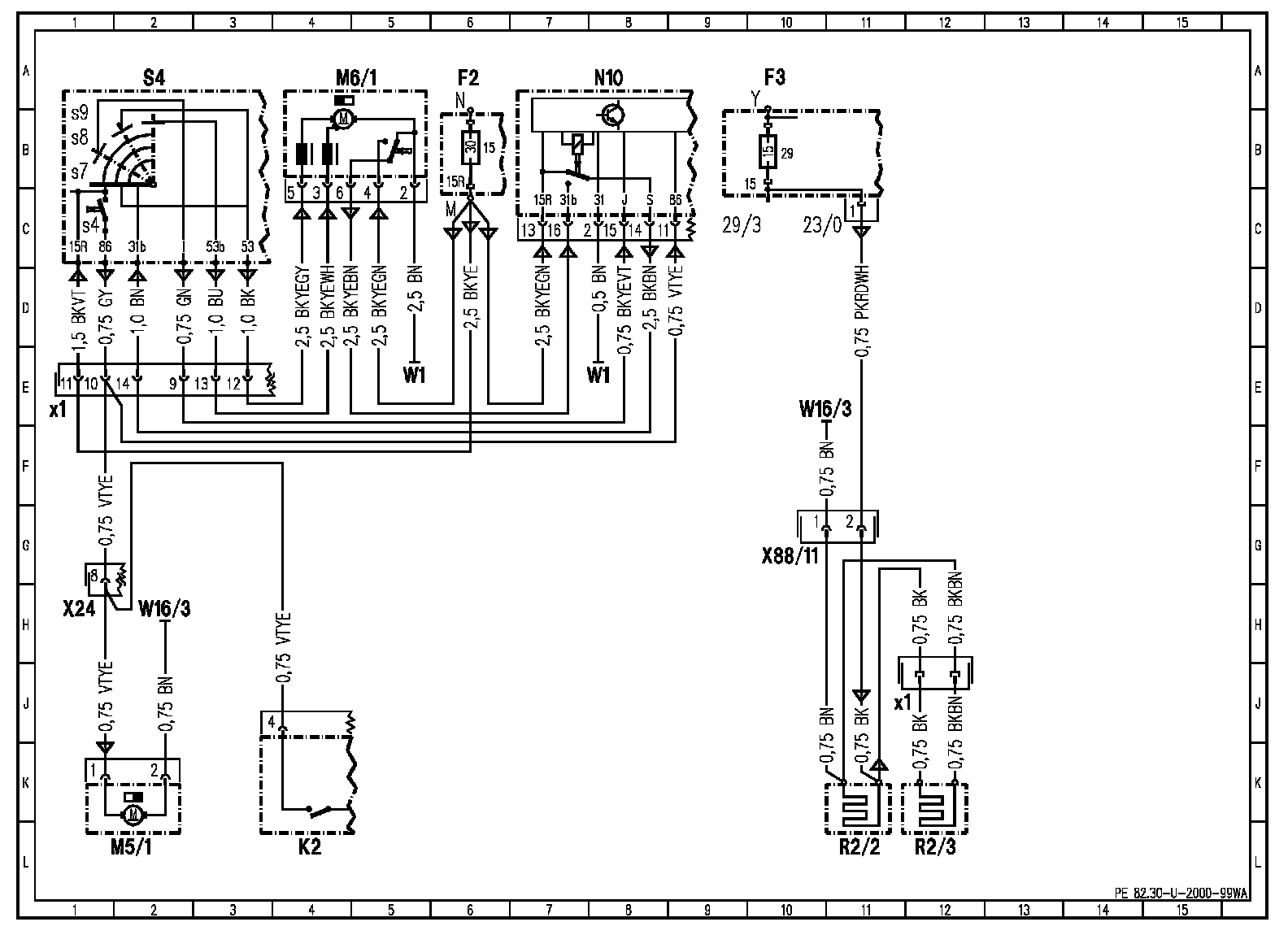

Wiring Diagram:

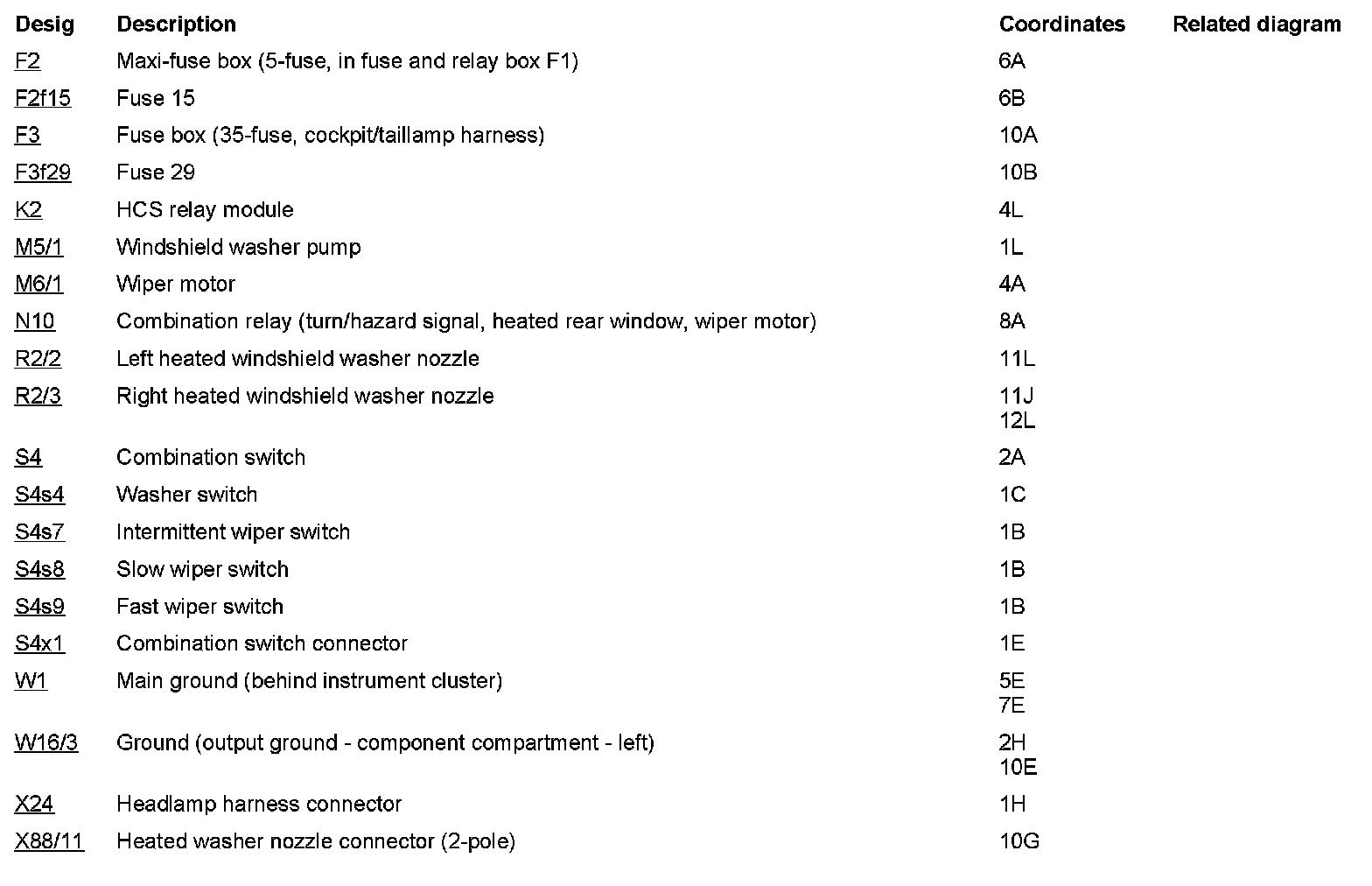

Component Description/Coordinates, F2 To X88/11:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
