Roll Bar Crash Deployment Connectors
Roll Bar Crash Deployment Connectors

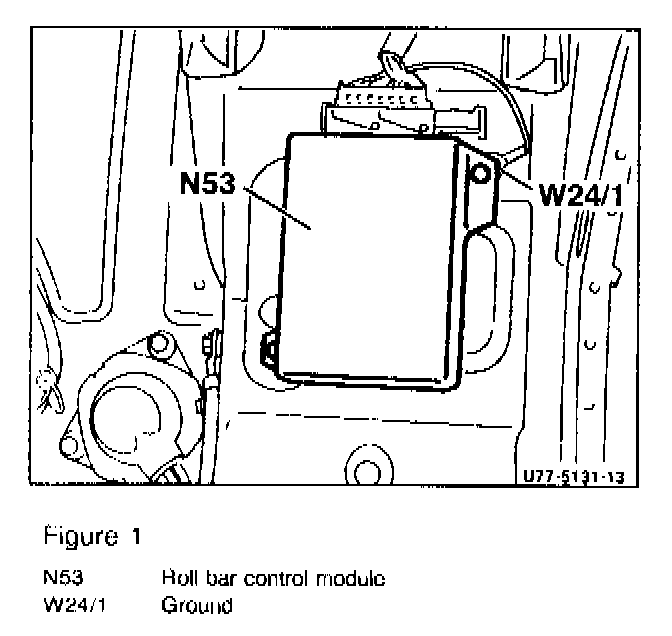

N53, W24/1:

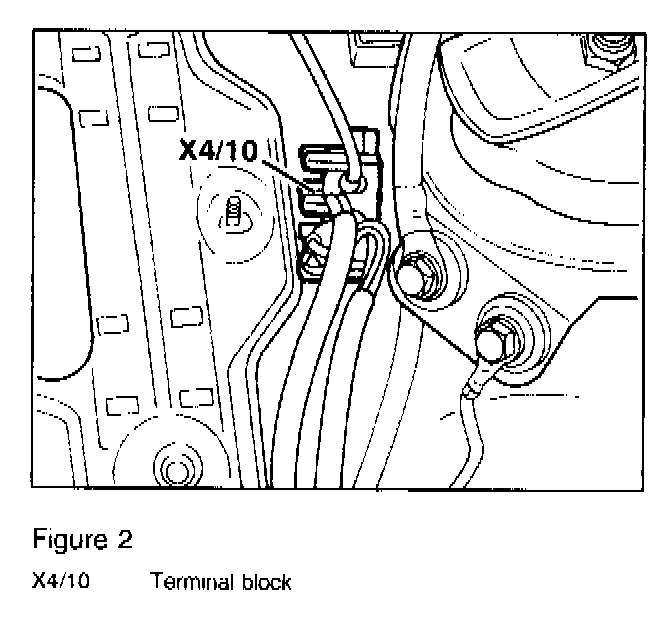

X4/10:
X11/4, F24:
X11/12:
X4/10:

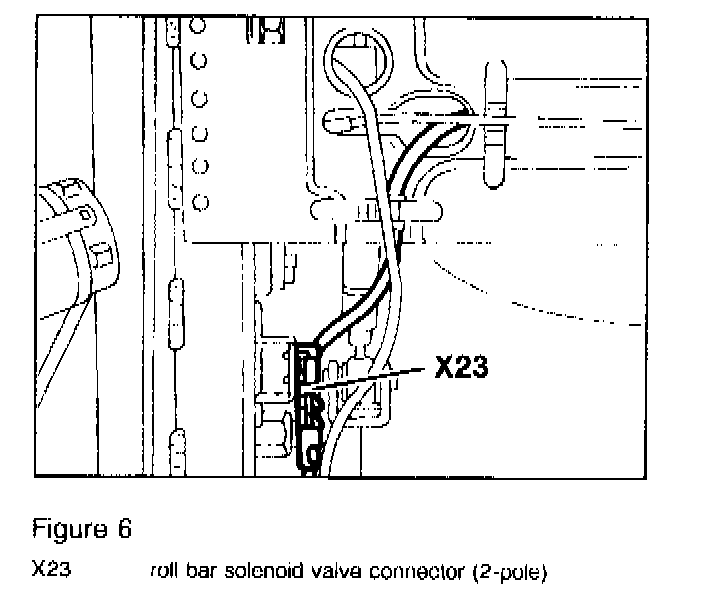

X23:

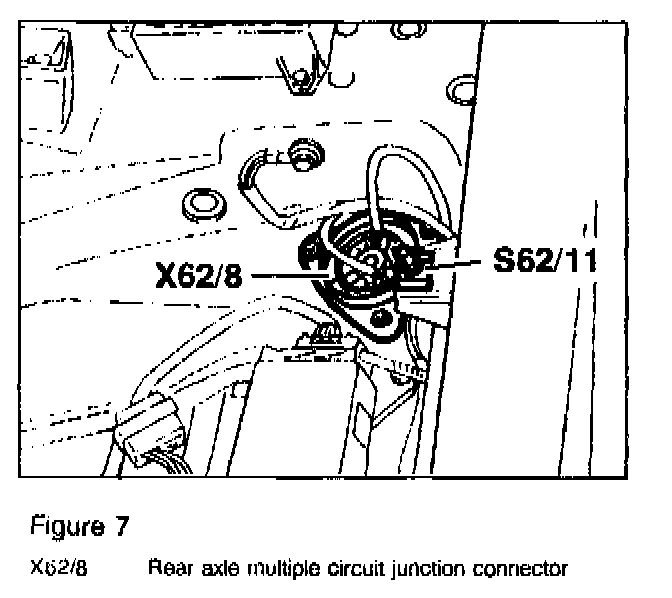

X62/8:
