�%;3d;Seat Belt Extender/Seat Belt Warning:
Wiring Diagram

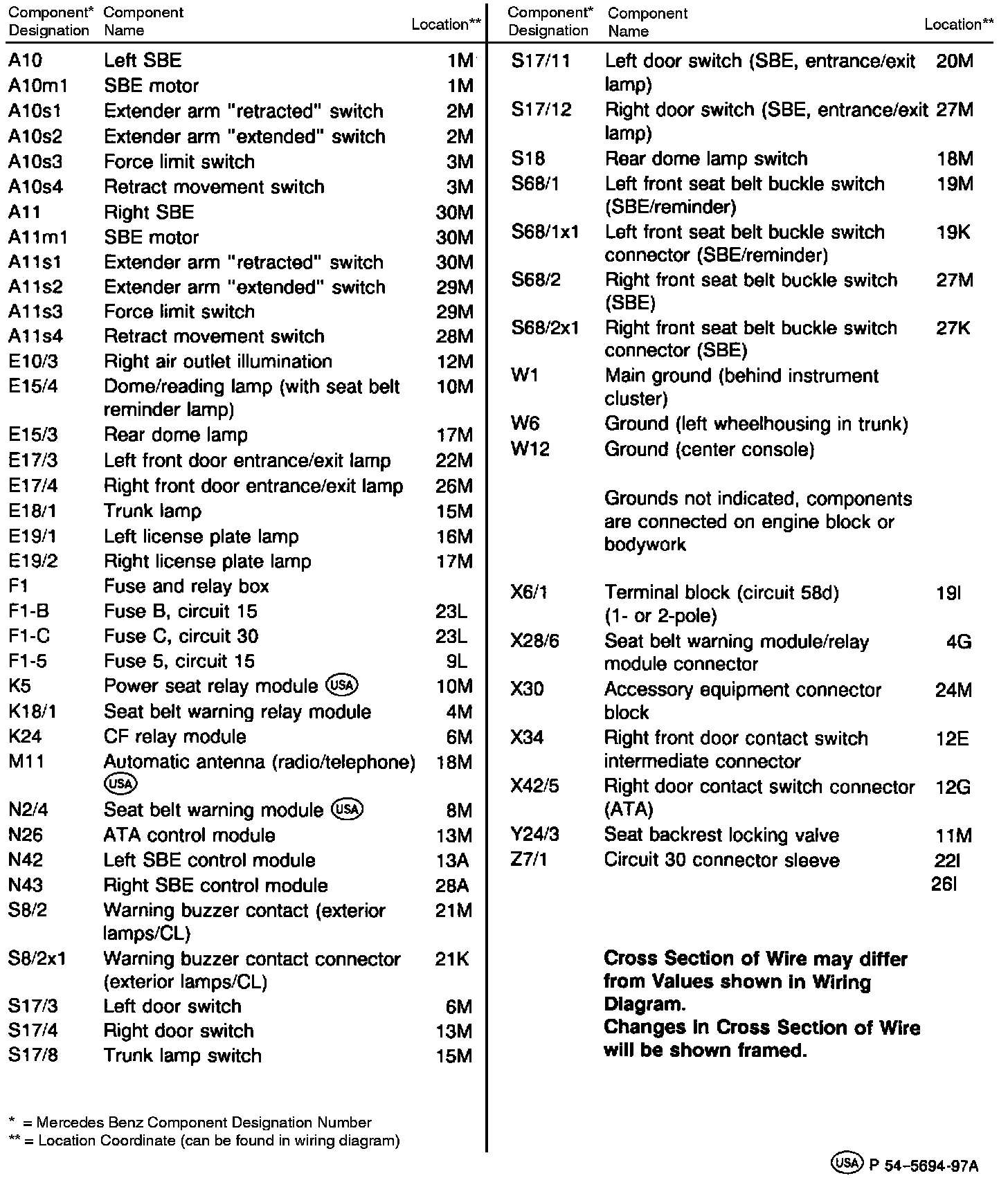

Seat Belt Extender/Seat Belt Warning - Component Index:
Component Index
