With Daytime Running Lamps (Canada Only)

Sedan, Canadian Only

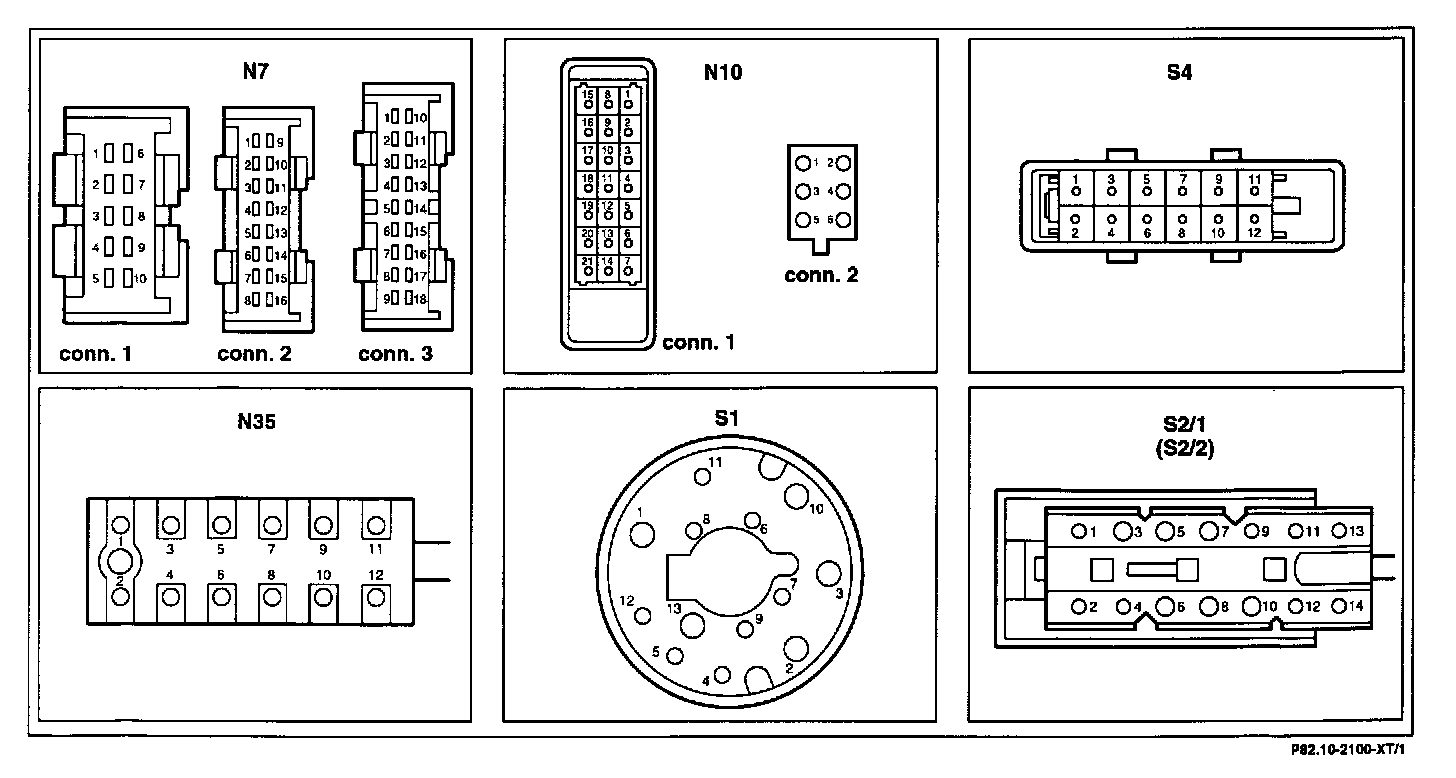

Connector Assignment:

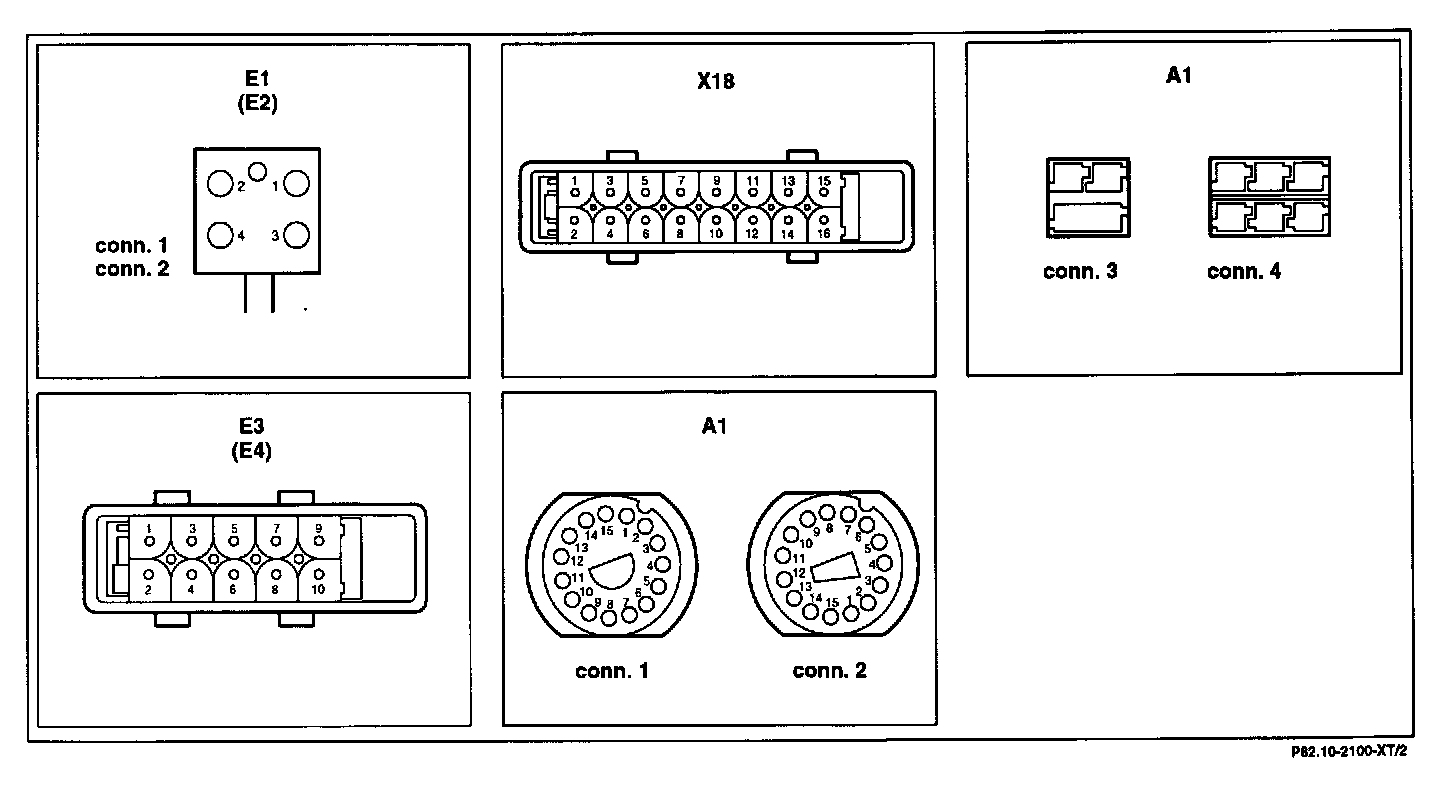

Connector Assignment:

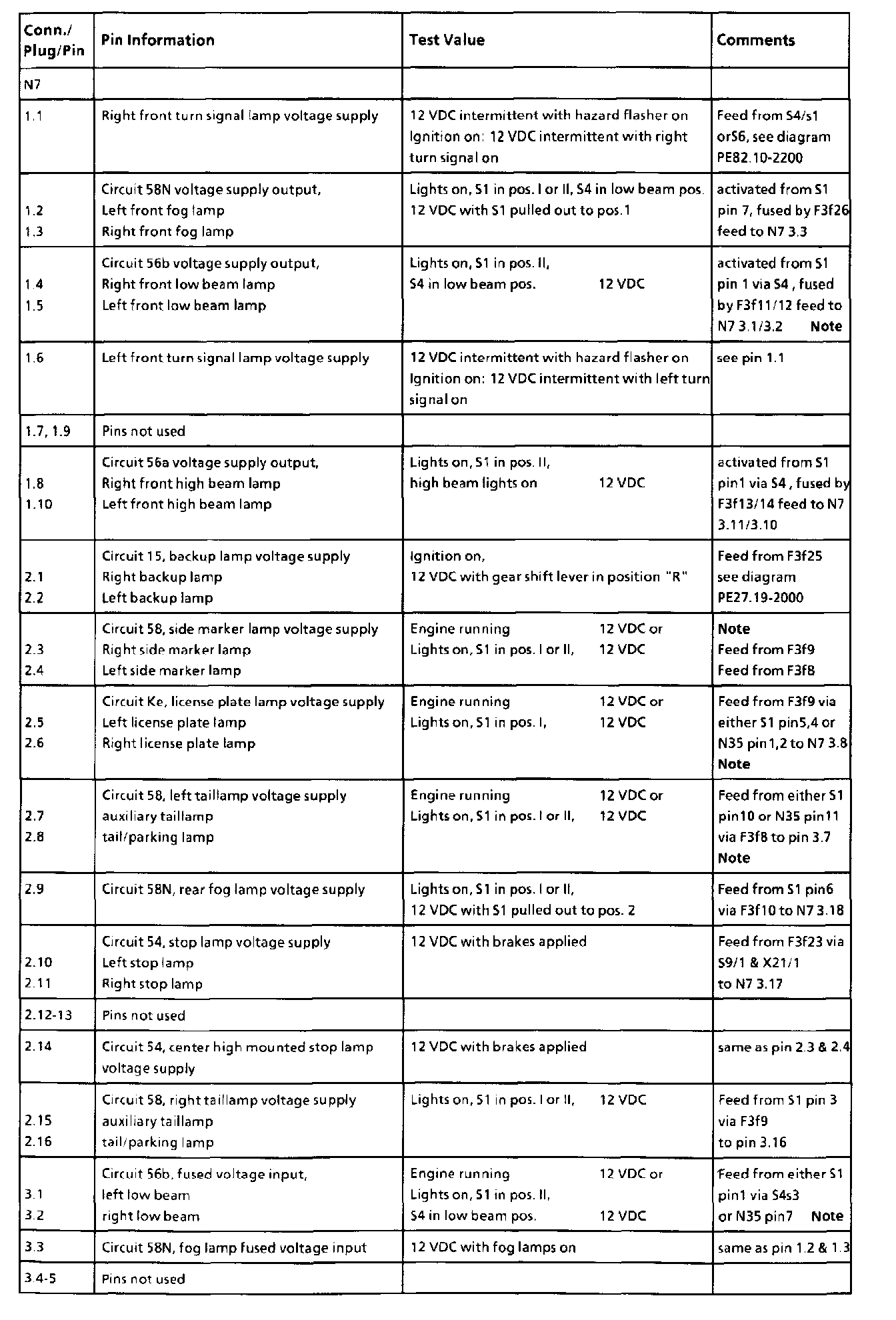

Pin Information, Part 1:

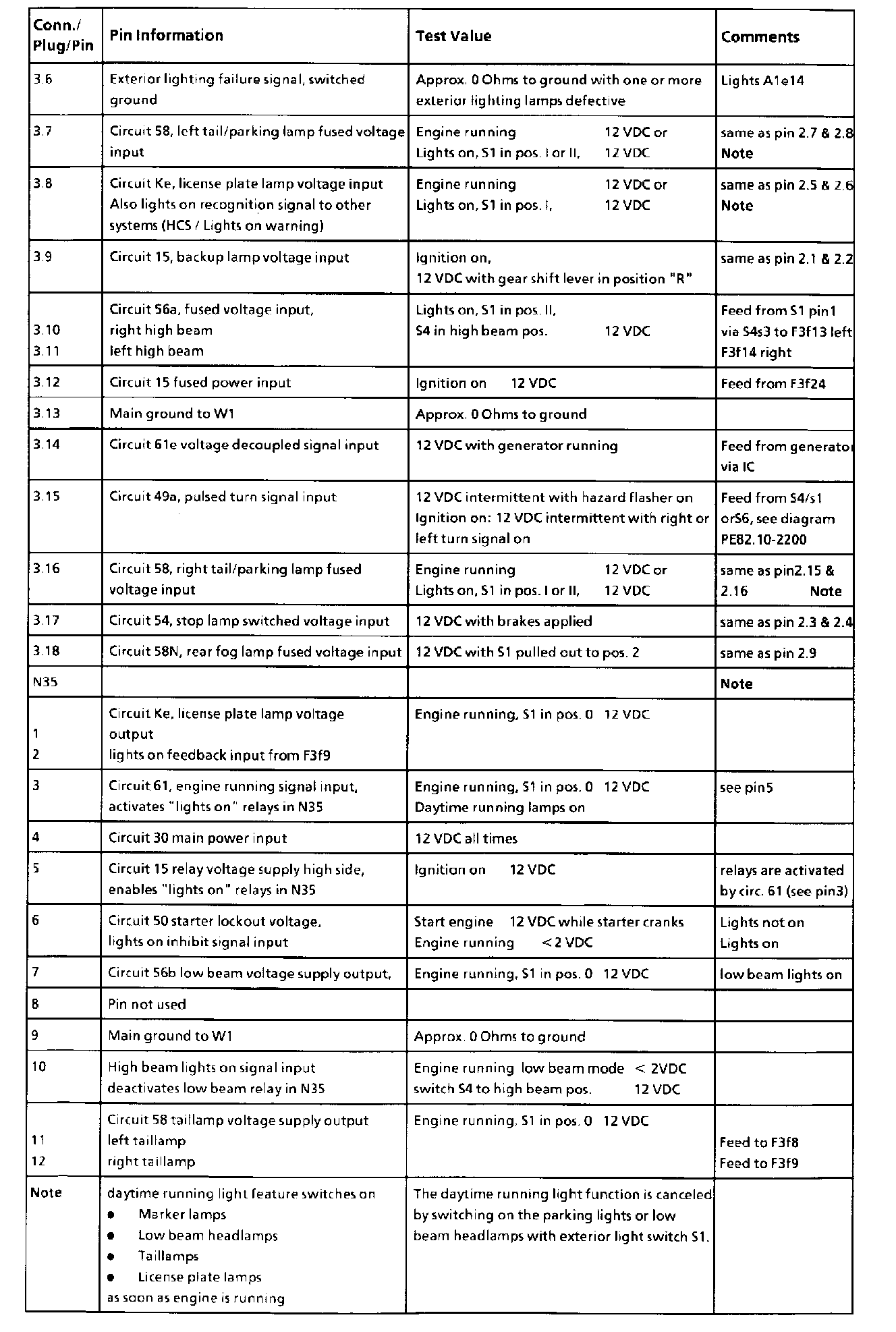

Pin Information, Part 2:

All values measured to ground unless otherwise noted
