Data Link Connector
OBD II
Connector Assignment:

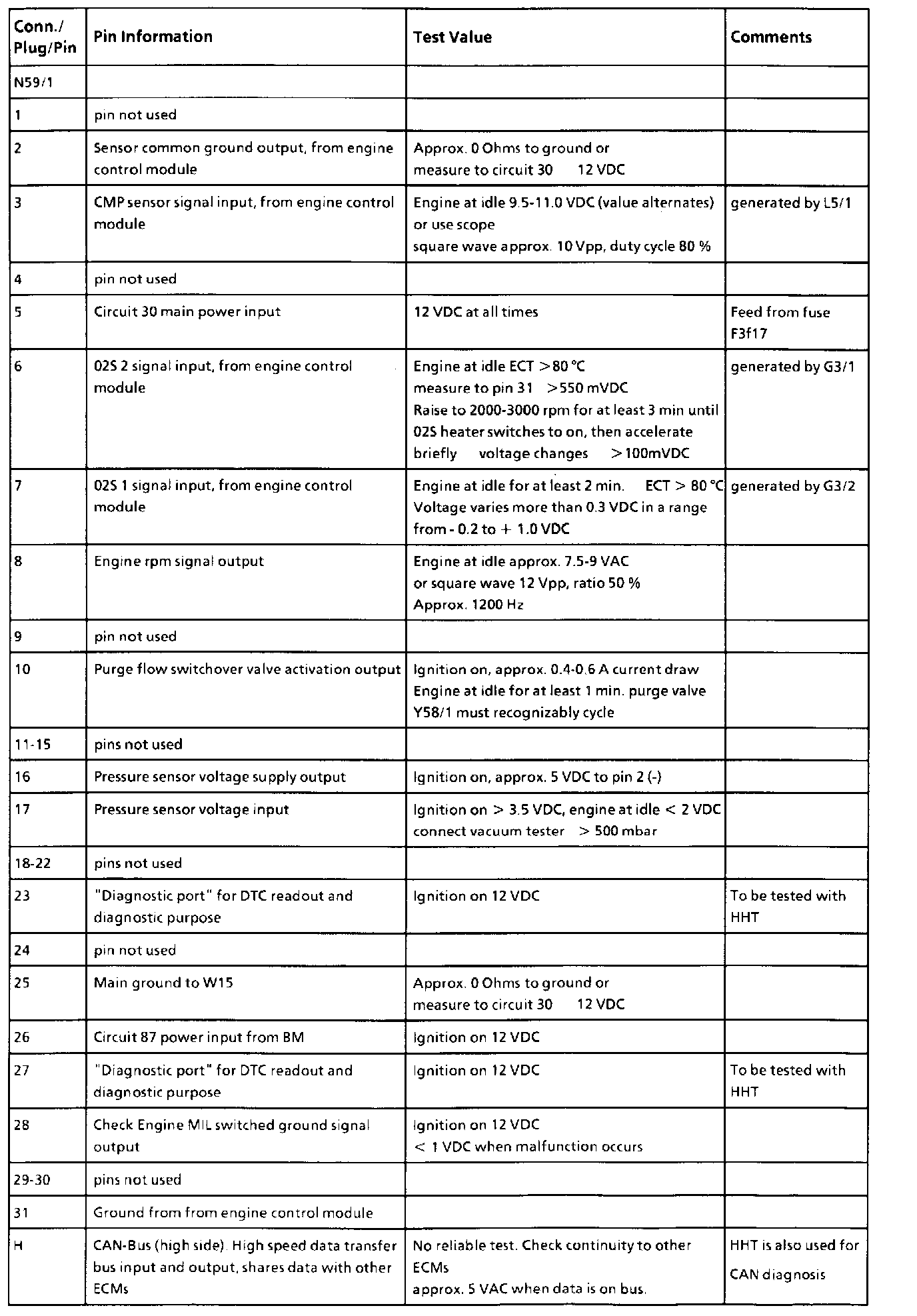

Pin Information, Part 1:
Pin Information, Part 2:
All values measured to ground unless otherwise noted
