Headlamp Cleaning System (HCS) PE82.15-U-2000XX
Headlamp Cleaning System (HCS) PE82.15-U-2000XX

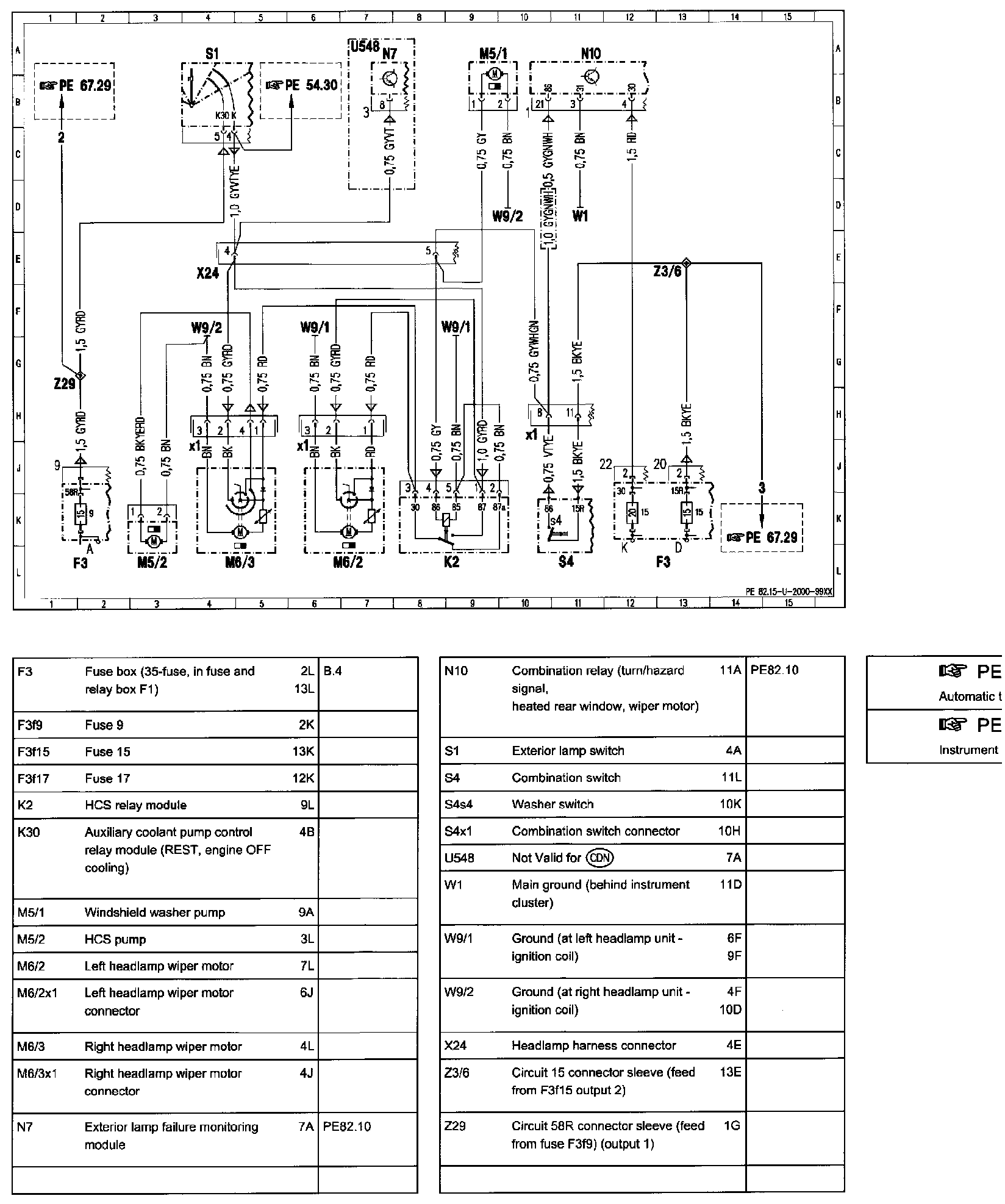

t�°QPE82.15-U-2000XX - Headlamp Cleaning System (HCS):
