Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Condenser Fan Resistor
>>
Service and Repair
Condenser Fan Resistor: Service and Repair
Component Identification

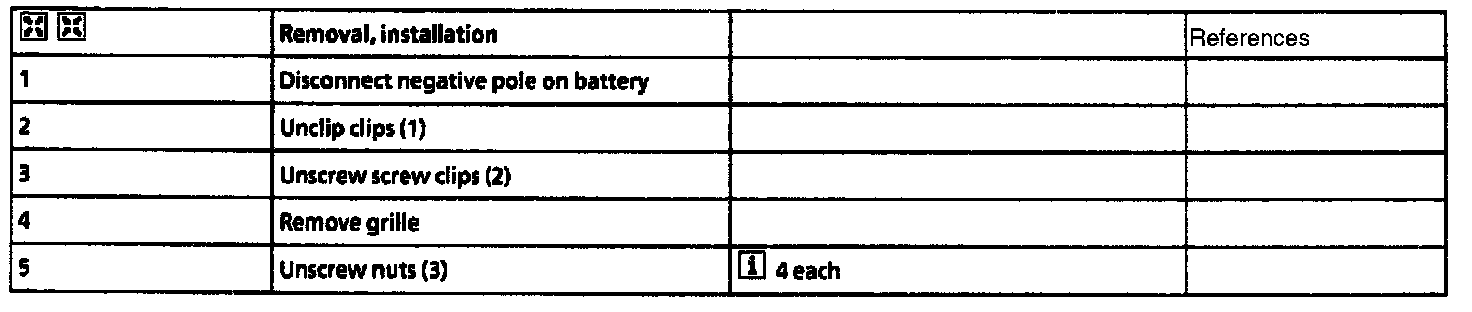

Removal, installation, Part 1 of 2

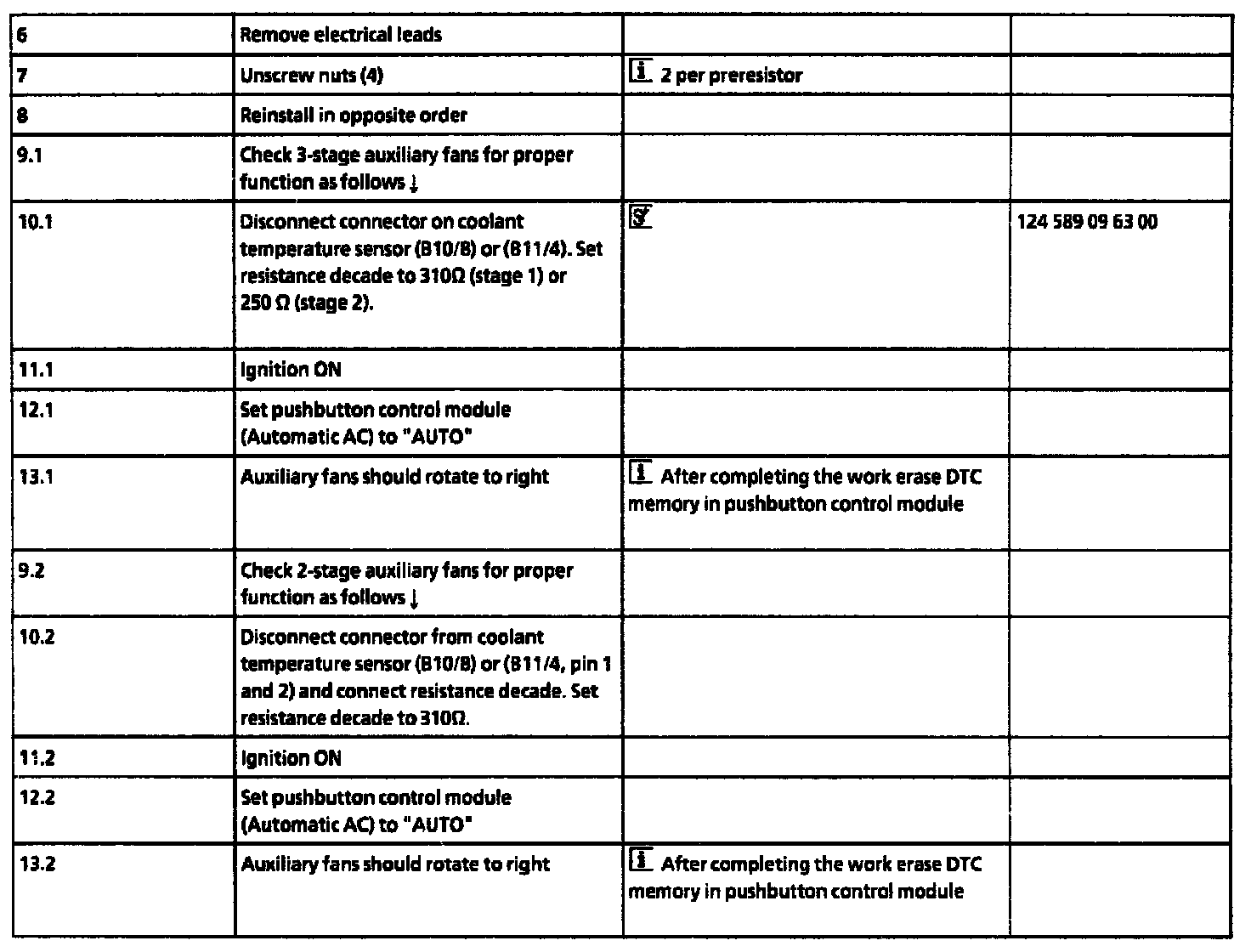

Removal, installation, Part 2 of 2
