Backup Lamp: Service and Repair

Replacing Light Strip (Reverse Lamp, Up to approx. 02/94)

Preliminary work:
Trim at rear center removed. Service and Repair

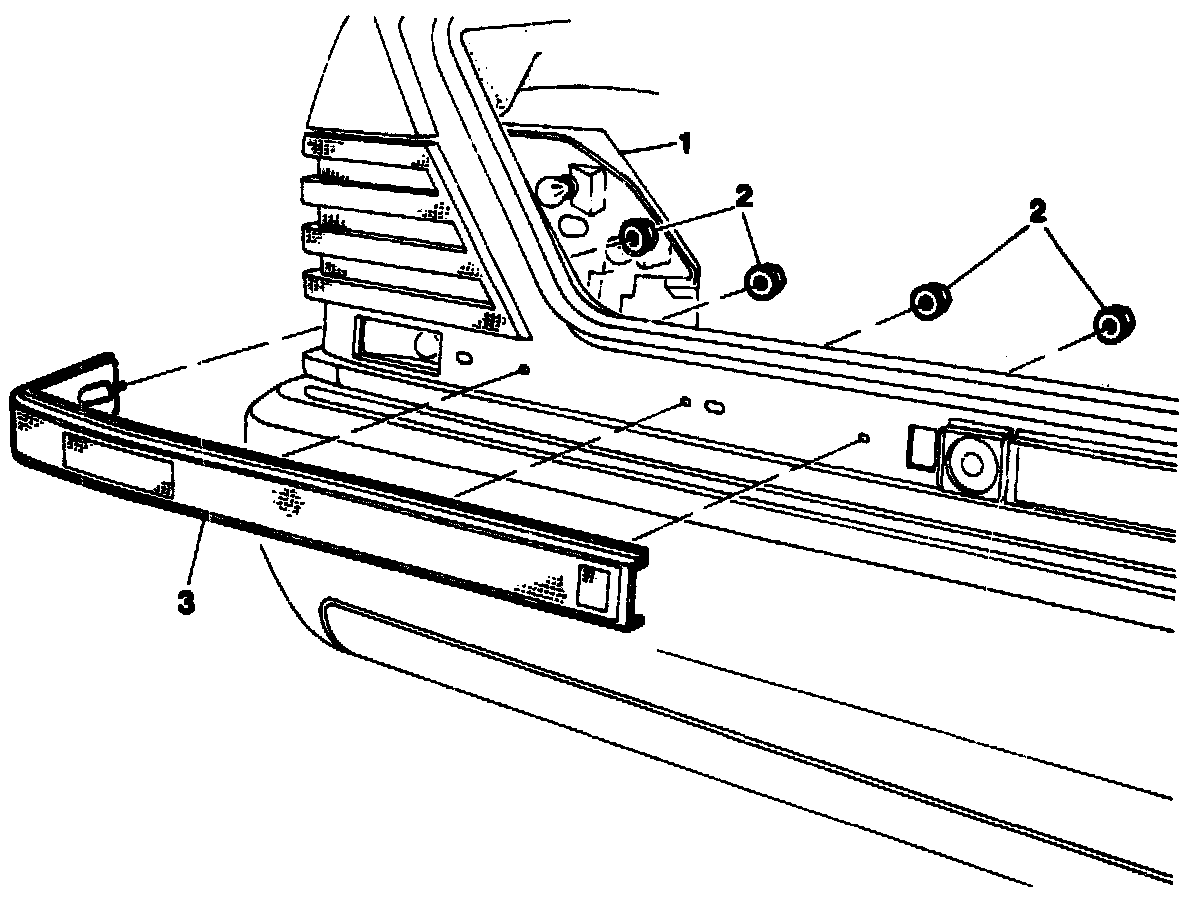

Bulb carrier (1)
swing open, close by opening, closing lock.

Nuts (2)
unscrew, screw on.

Light strip (3)
take off, fit on.
