Central Electronics Box: Description and Operation

PURPOSE
The module box (F23) is designed to protect the control modules from the various influences in the engine compartment.

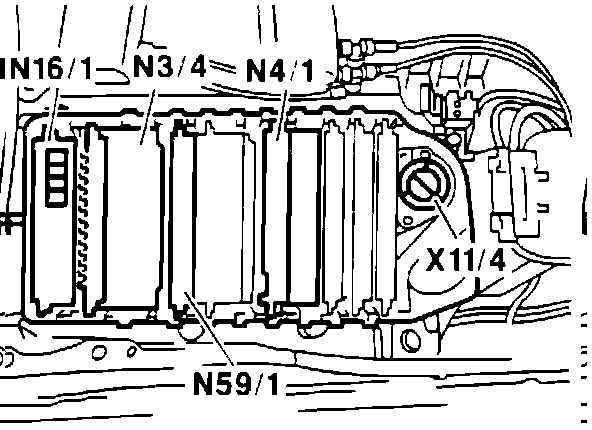

Control Modules In Module Box:

CONTROL MODULE ARRANGEMENT
The individual connection fields in the module box are identified by numbers. This, along with color coded connectors, allows for easy coordination of the wiring harness with the respective connection field and control module.

Control Module Color Code Location:

CONTROL MODULE COORDINATION AND I.D.
A color code identification mark on each control module is identical to its respective connector in the module box.

Control Module I.D. (For ECMs In Module Box):

I.D. AND LOCATION CHART
