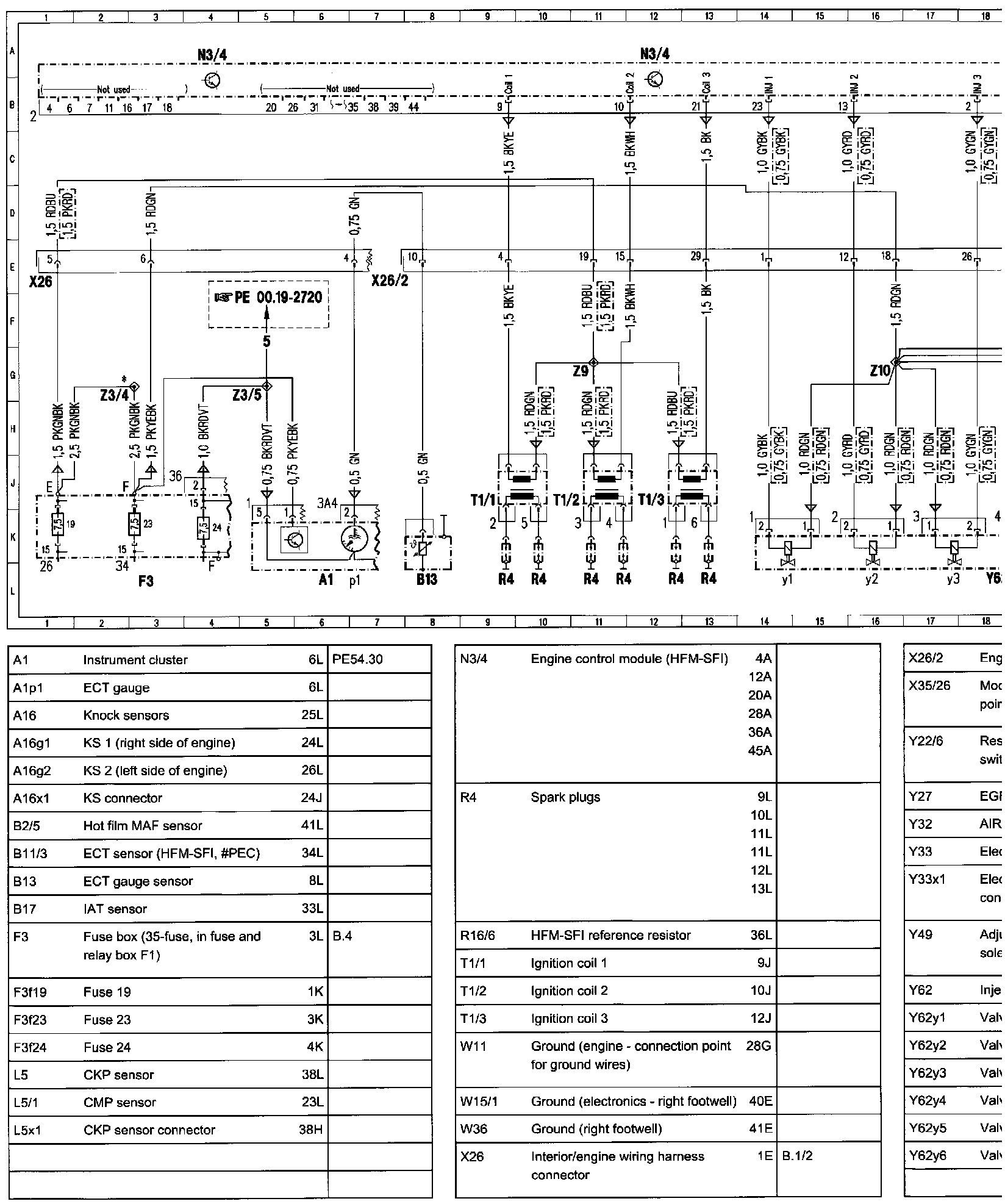

HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000XB
HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000XB
f� �Q PE07.51-U-2000-XB - Engine 104 HFM:
