Sound Proofing / Insulation: Service and Repair

Model 140.1

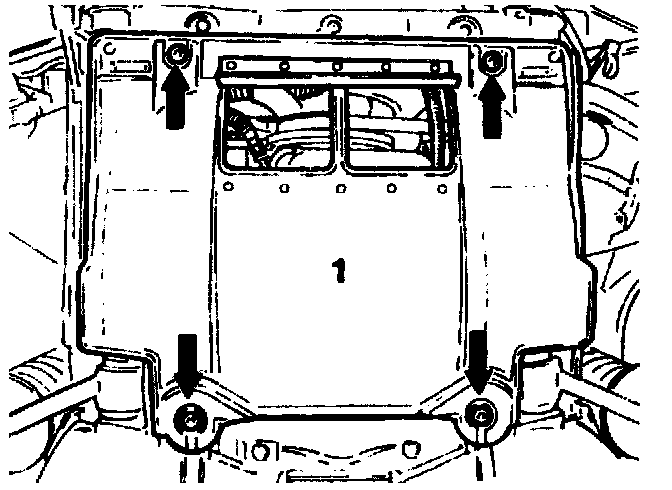

Arrow, mounting bolts. Front bottom section of sound proofing capsule





Arrow, mounting bolts. Center bottom section of sound proofing capsule





Arrow, mounting bolts. Rear bottom section of sound proofing capsule

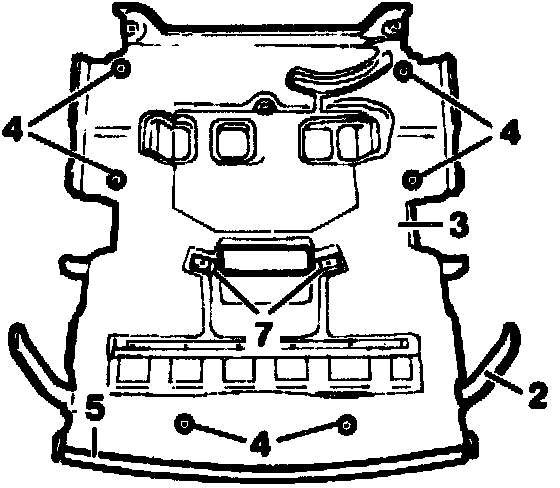

NOTE: Press front bottom section of sound-proofing capsule (1) upward; the edge of the side sections (3) must engage around the bottom section (1).
