Differential Assembly


Automatic Locking Differential (ASD)

Connector Assignment:

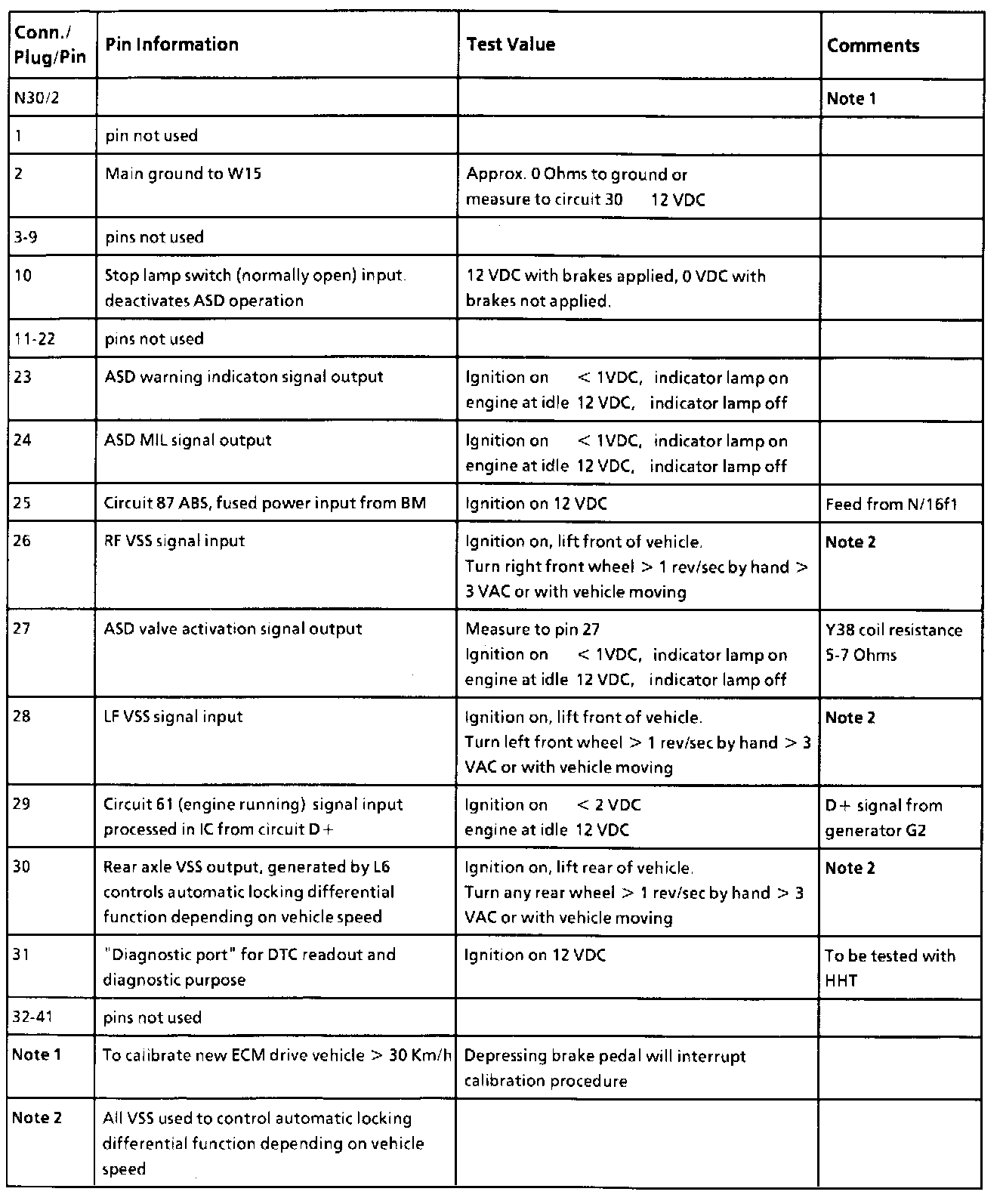

Pin Information:






All values measured to ground unless otherwise noted
