Firing Order
Firing Order
AR01.00-P-1300-03HA
Firing order
Firing order:

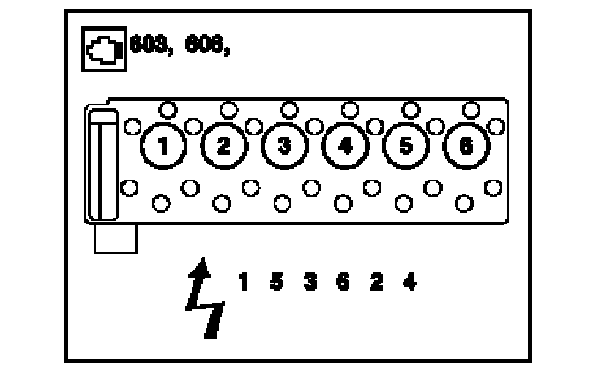

Firing order:

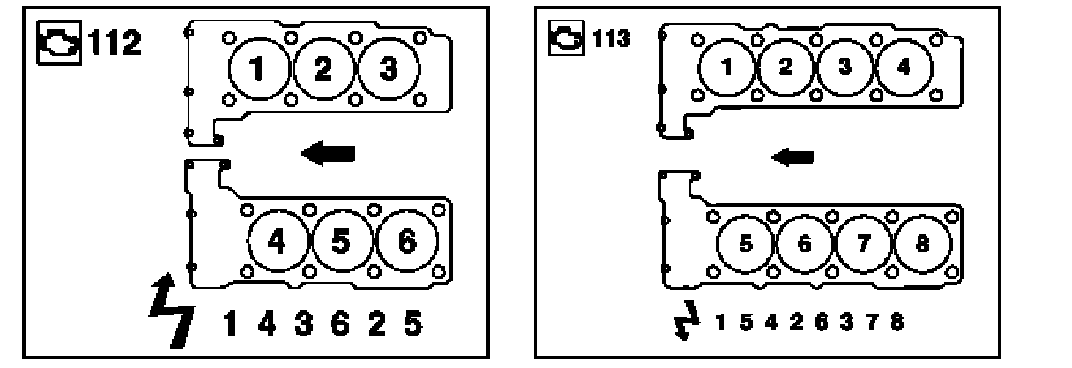

Firing order:

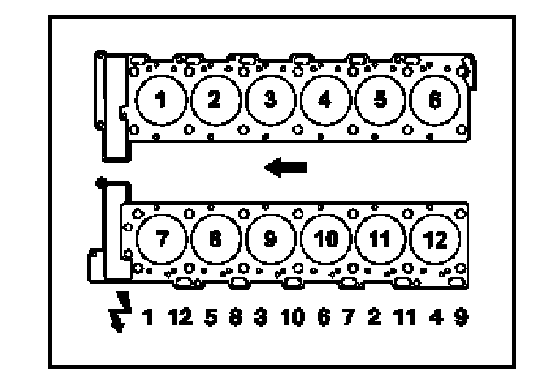

Firing order:

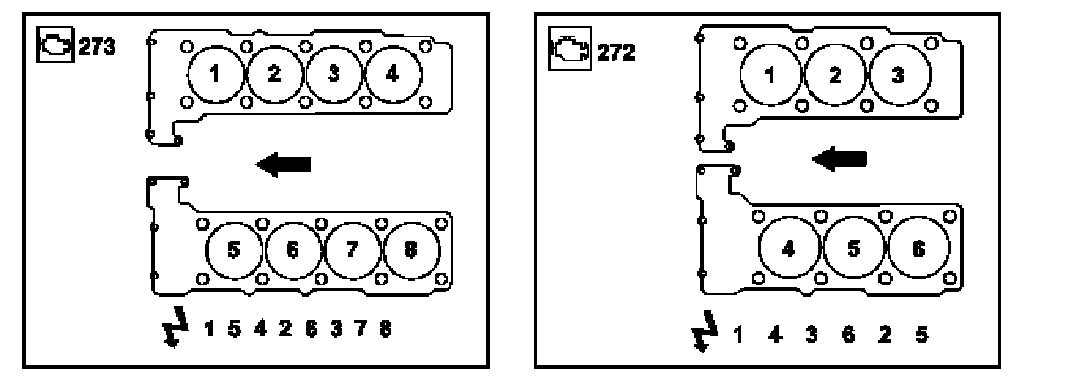

Firing order - Engine 137, 275, 285:
