Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
S 420 (140.043) V8-4.2L (119.971)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Seat Adjustment (ESA)
>>
Rear Seat(s)
>>
With Rear Bench Seat
>>
ETP - Electrical Test Program
>>
Test Steps
>>

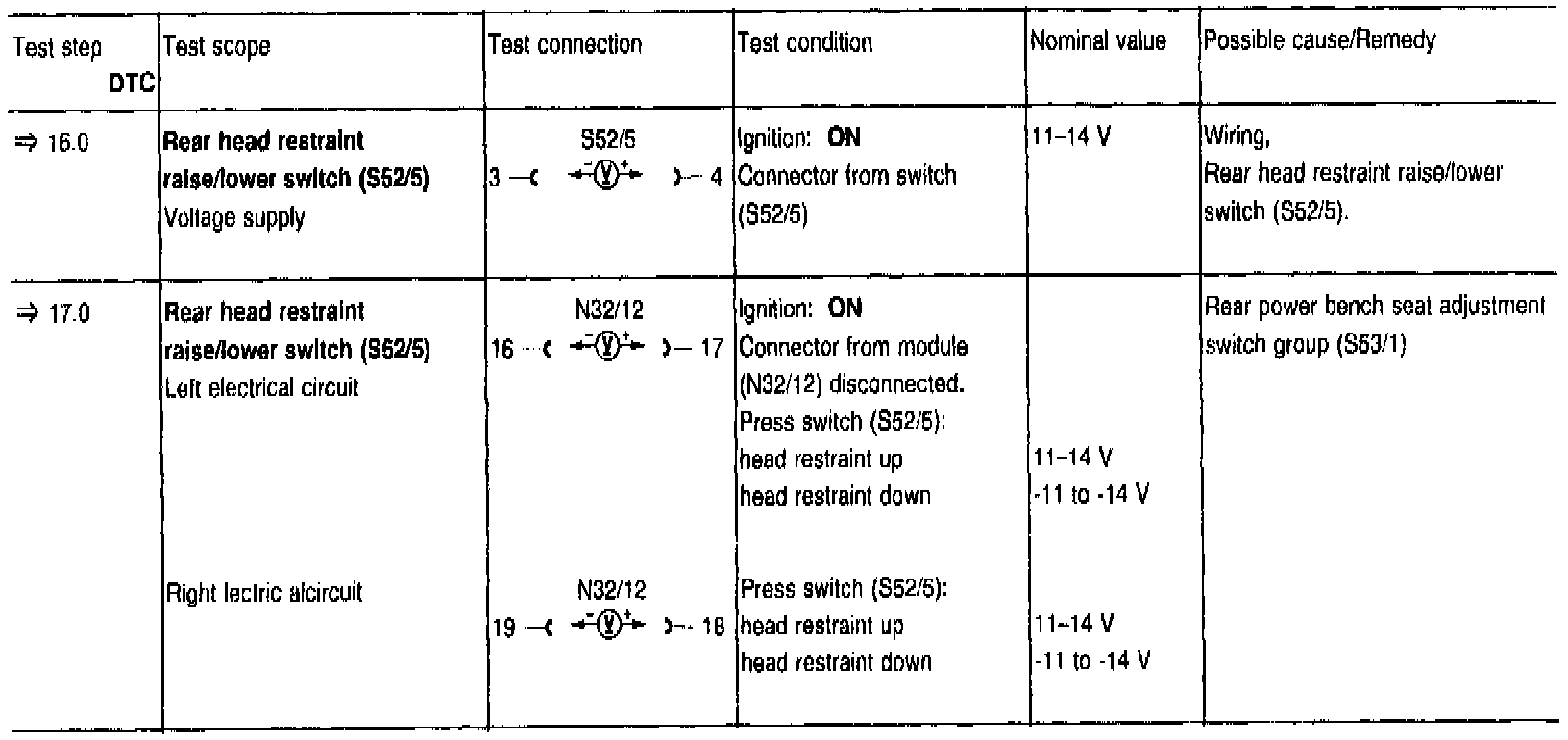

ETP Test Steps 16.0 and 17.0
ETP Test Steps 16.0 and 17.0
ETP Steps 16.0 & 17.0:
