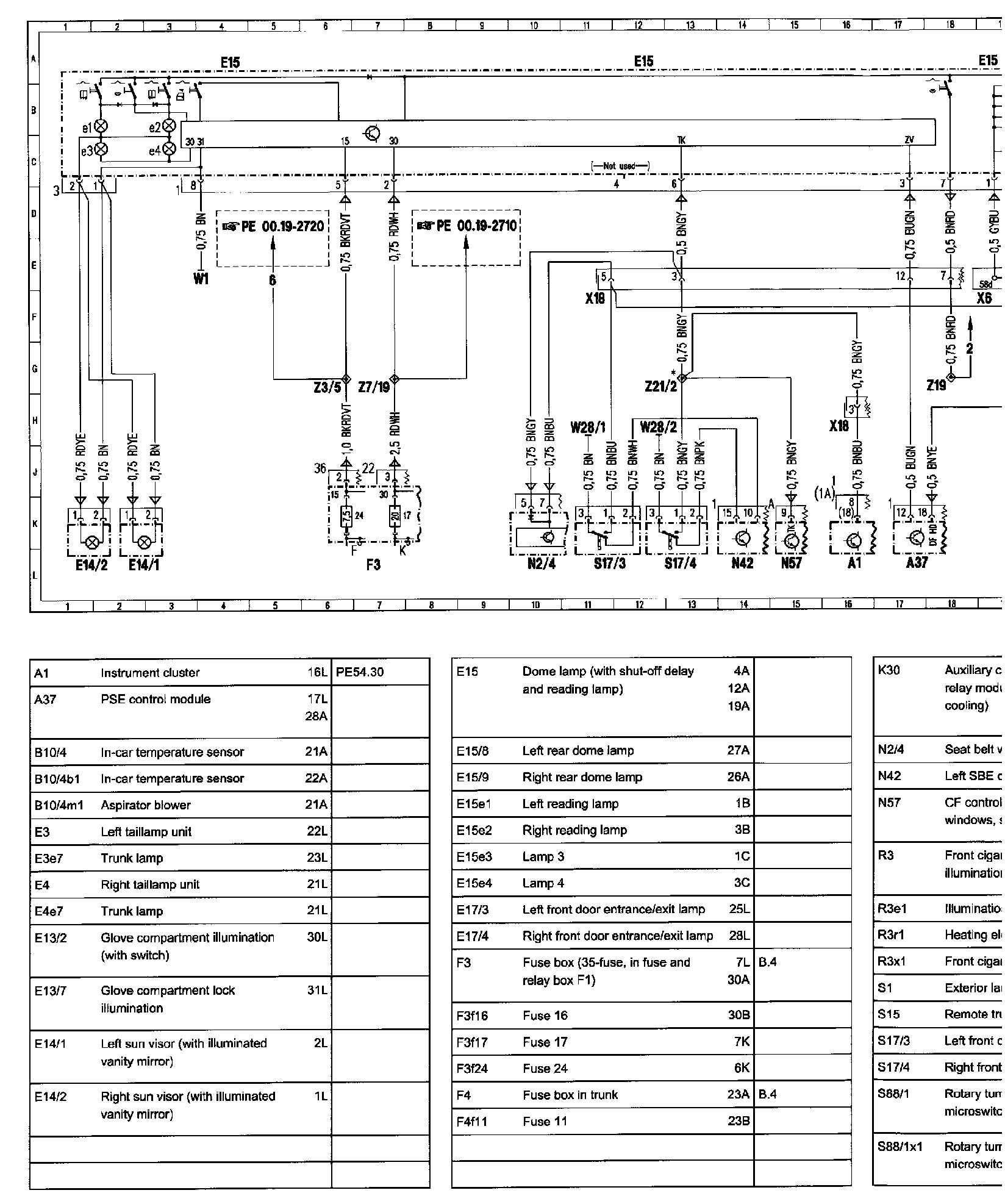

Interior Lights PE82.20-U-2000XE

��Py�PPE82.20-U-2000-XE - Coupe - With Non Variable Instrument Illumination:
