Home >> Mercedes Benz >> 1994 >> S 500 Coupe (140.070) V8-5.0L (119.970) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Turn Signal/Hazard Warning Lamps PE82.10-U-2200XW

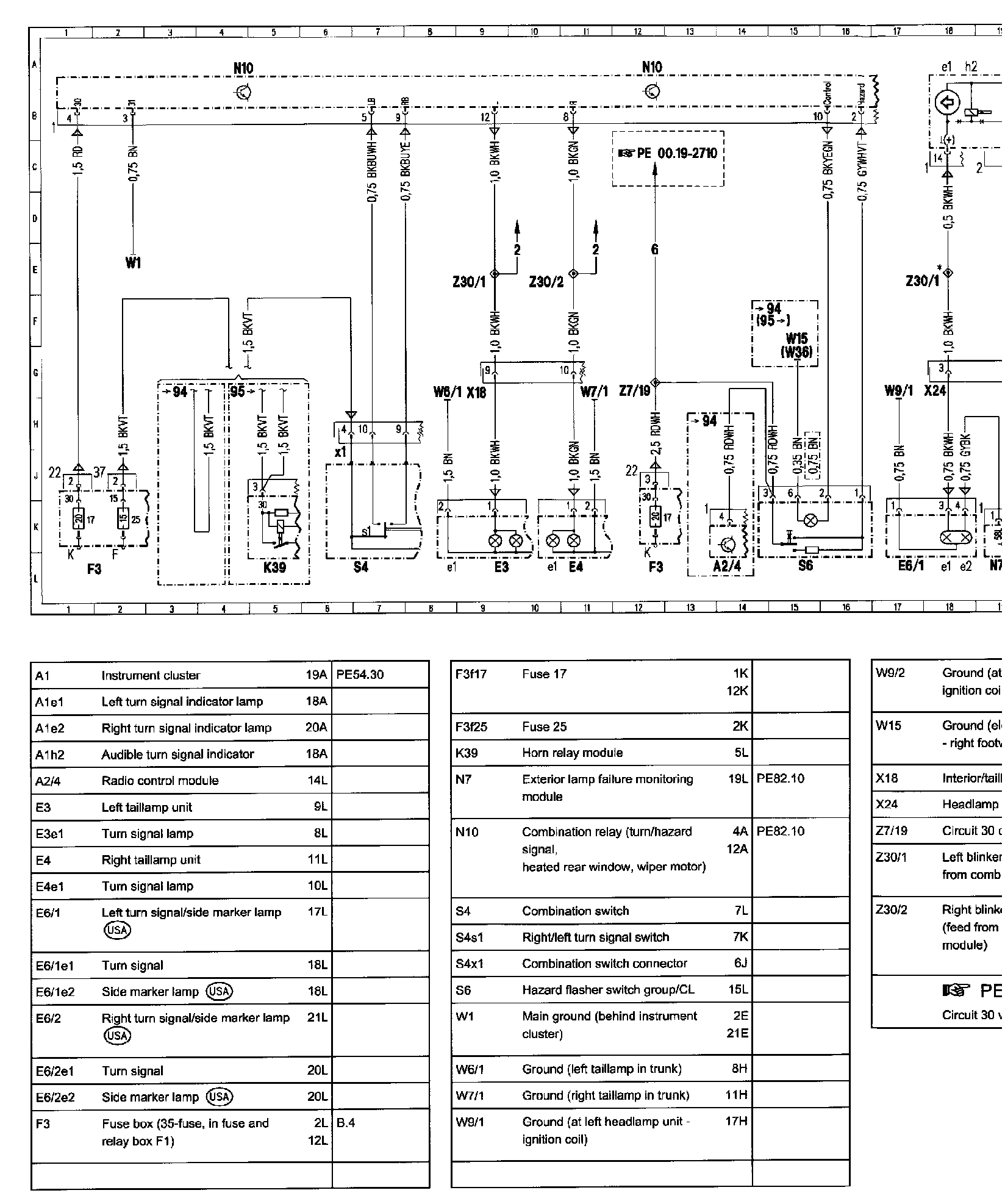

Turn Signal/Hazard Warning Lamps PE82.10-U-2200XW

G��PPE82.10-U-2200-99XW:
