TN-Speed Signal - PE00.19-U-2910-XB

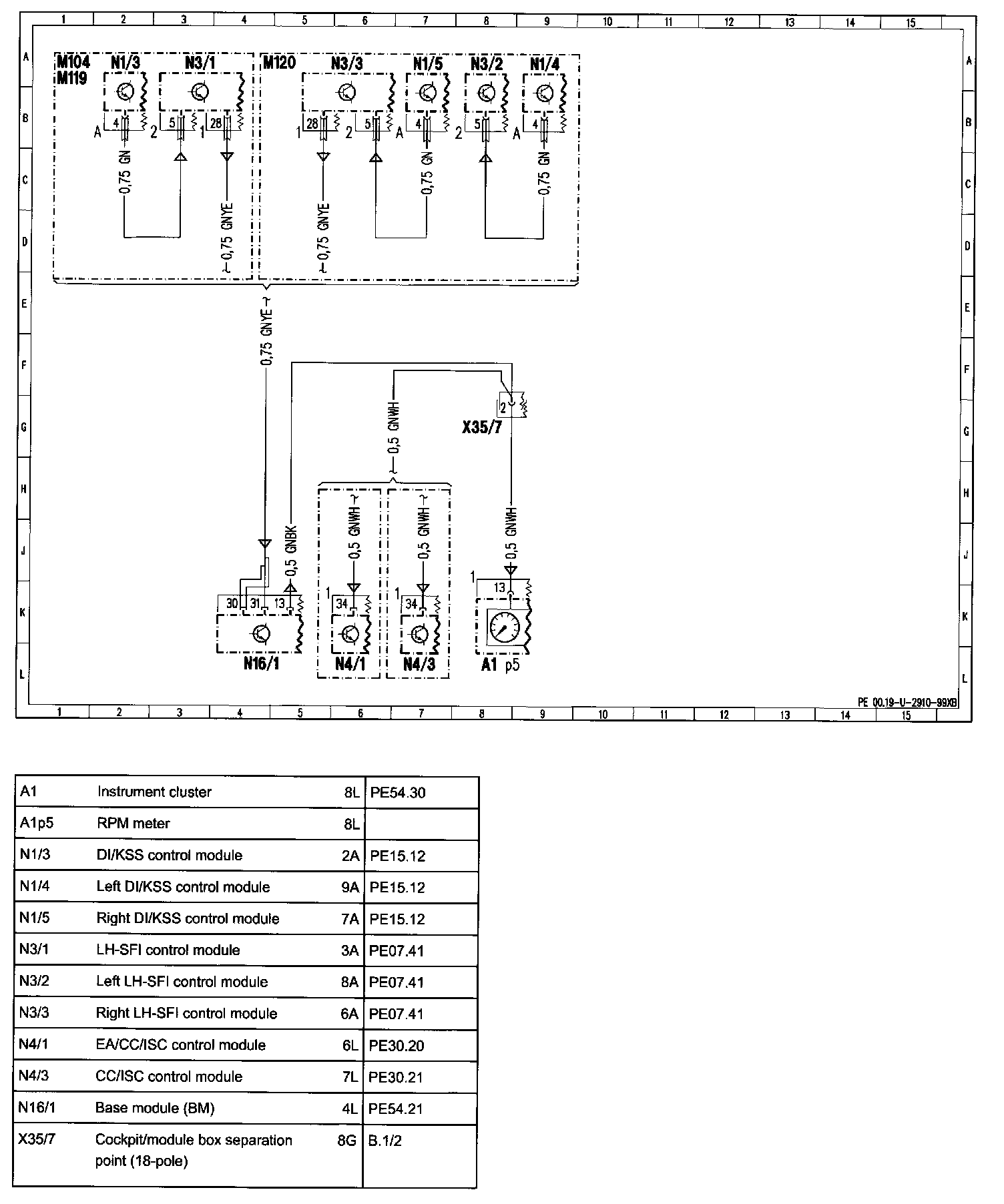

PE00.19-U-2910XB - RPM - Speed Signal Without Connector Sleeve (Z92):
