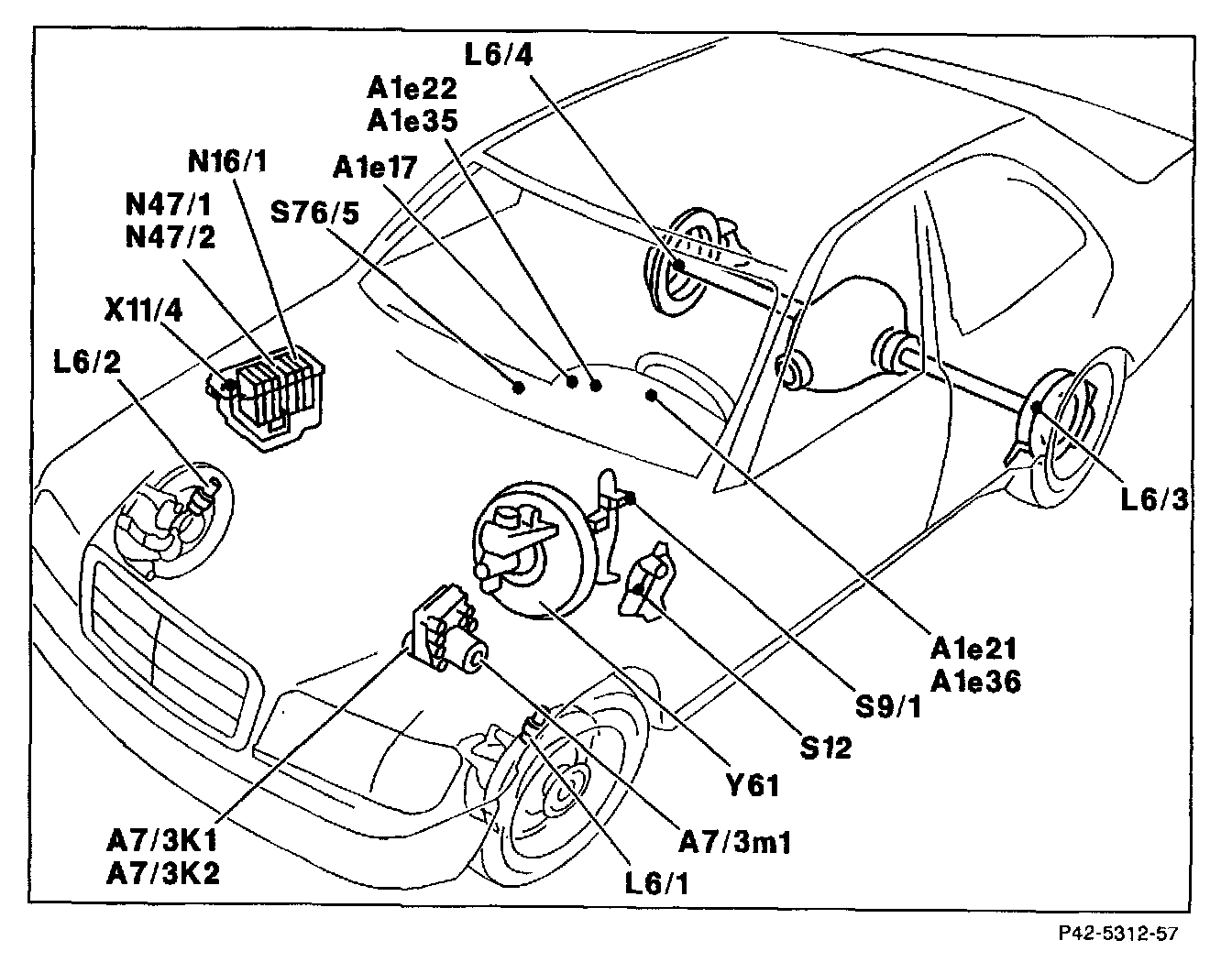

Brakes and Traction Control: Locations

From 6/94 to 8/95





A1e17 ABS MIL
A7/3k1 ASR/ETS/ESP hydraulic unit, solenoid valve relay
A7/3k2 ASR/ETS/ESP hydraulic unit, high-pressure/return pump relay
A7/3m1 ASR/ETS/ESP hydraulic unit, high-pressure/return pump
L6/1 Left front axle VSS sensor
L6/2 Right front axle VSS sensor
L6/3 Left rear axle VSS sensor
L6/4 Right rear axle VSS sensor
N16/1 Base module
S9/1 Stop lamp switch
X11/4 Data link connector

ASR only
A1e21 ASR warning lamp
A1e22 ASR MIL
N47-1 ASR/SPS control module
S12 Parking brake switch
S76/5 ASR OFF Switch
Y61 Master brake cylinder switchover valve (Models 129.076, 140.04/05/07)

ETS only
A1e35 ETS MIL
A1e36 ETS warning lamp
N47-2 ETS/SPS control module
