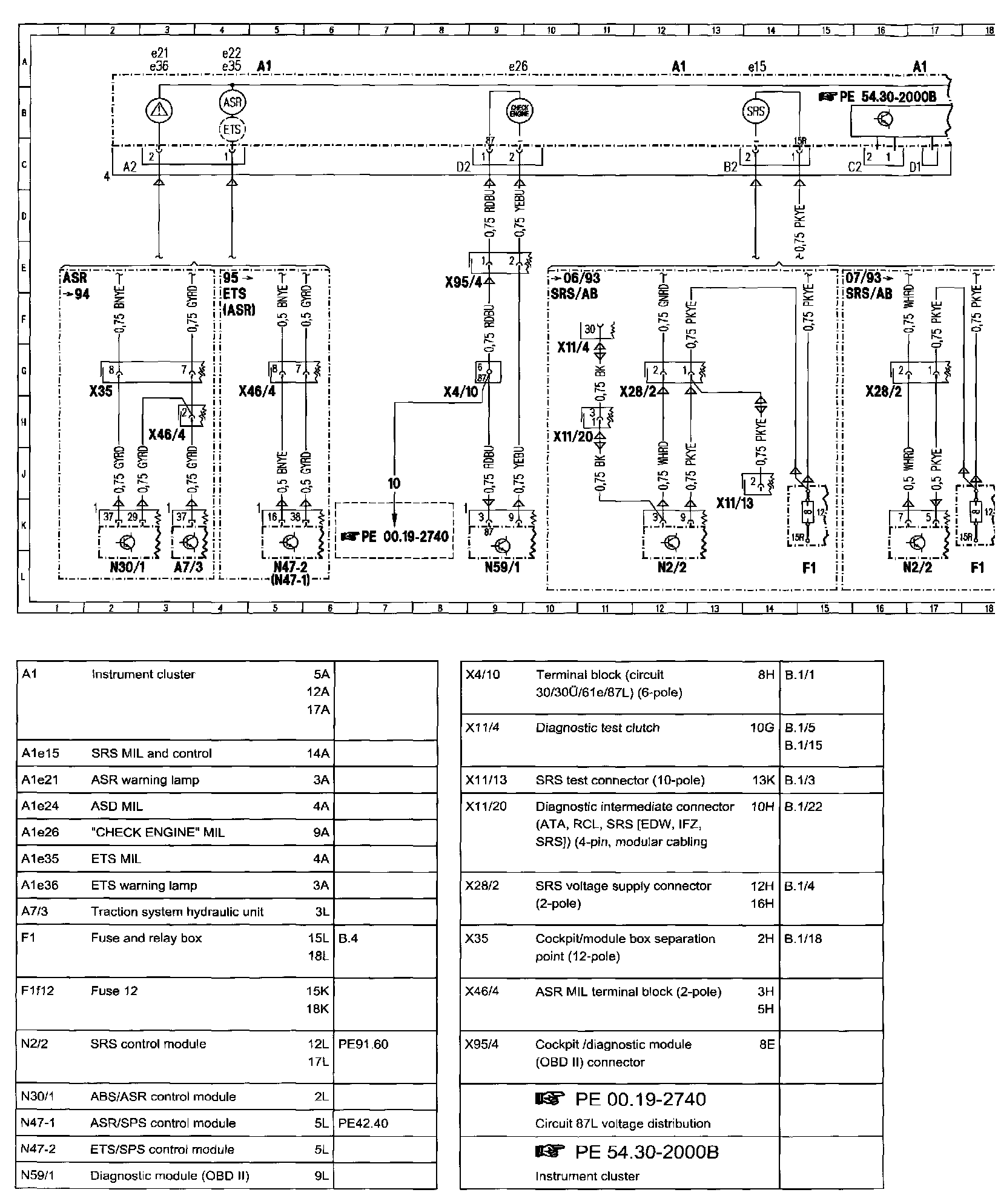

Instrument Cluster (CLUS) PE54.30-U-2000YC (Part 2)

Instrument Cluster (CLUS)/Display Instruments/Warning Devices

���OPE54.30-U-2000YC:

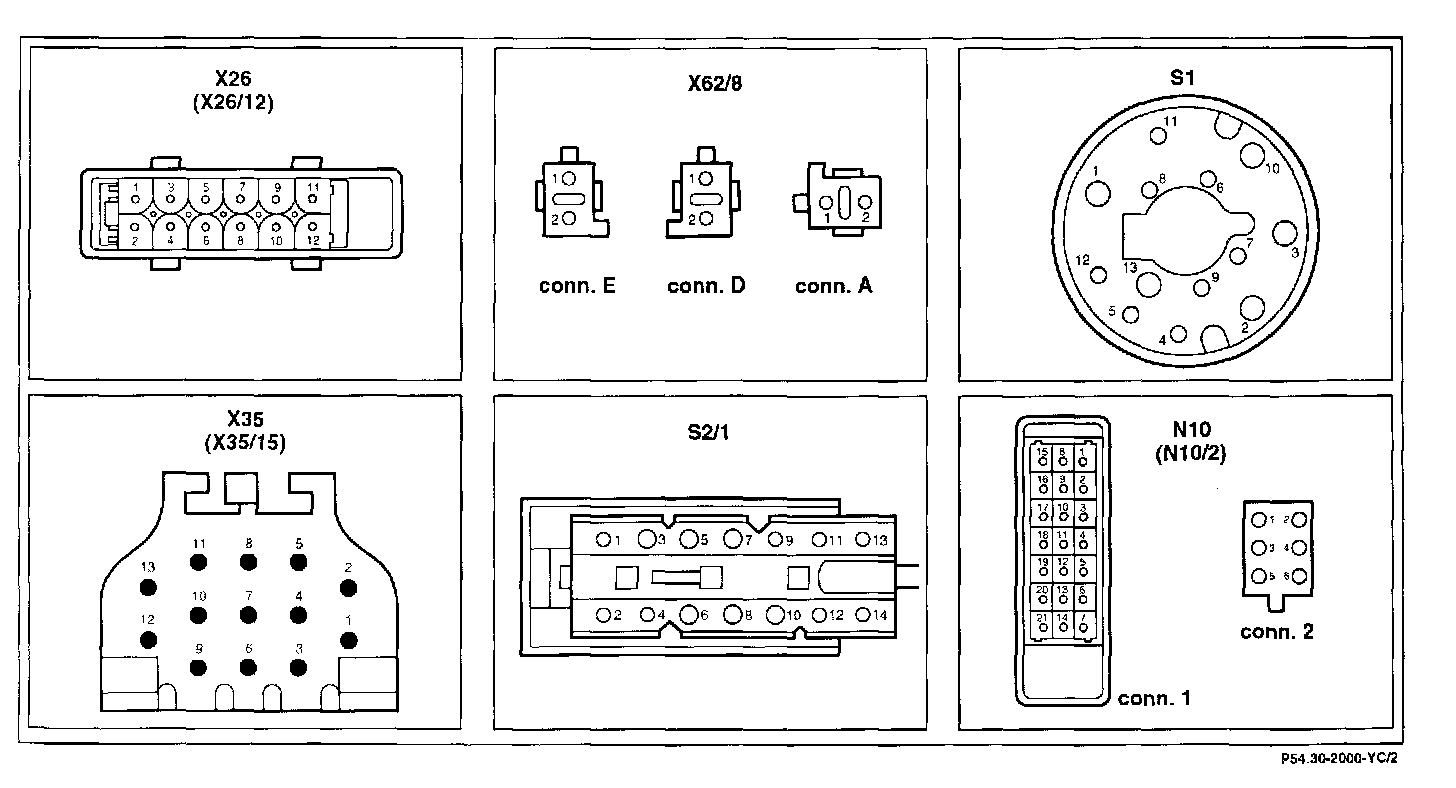

Connector Assignment:

Pin Information:

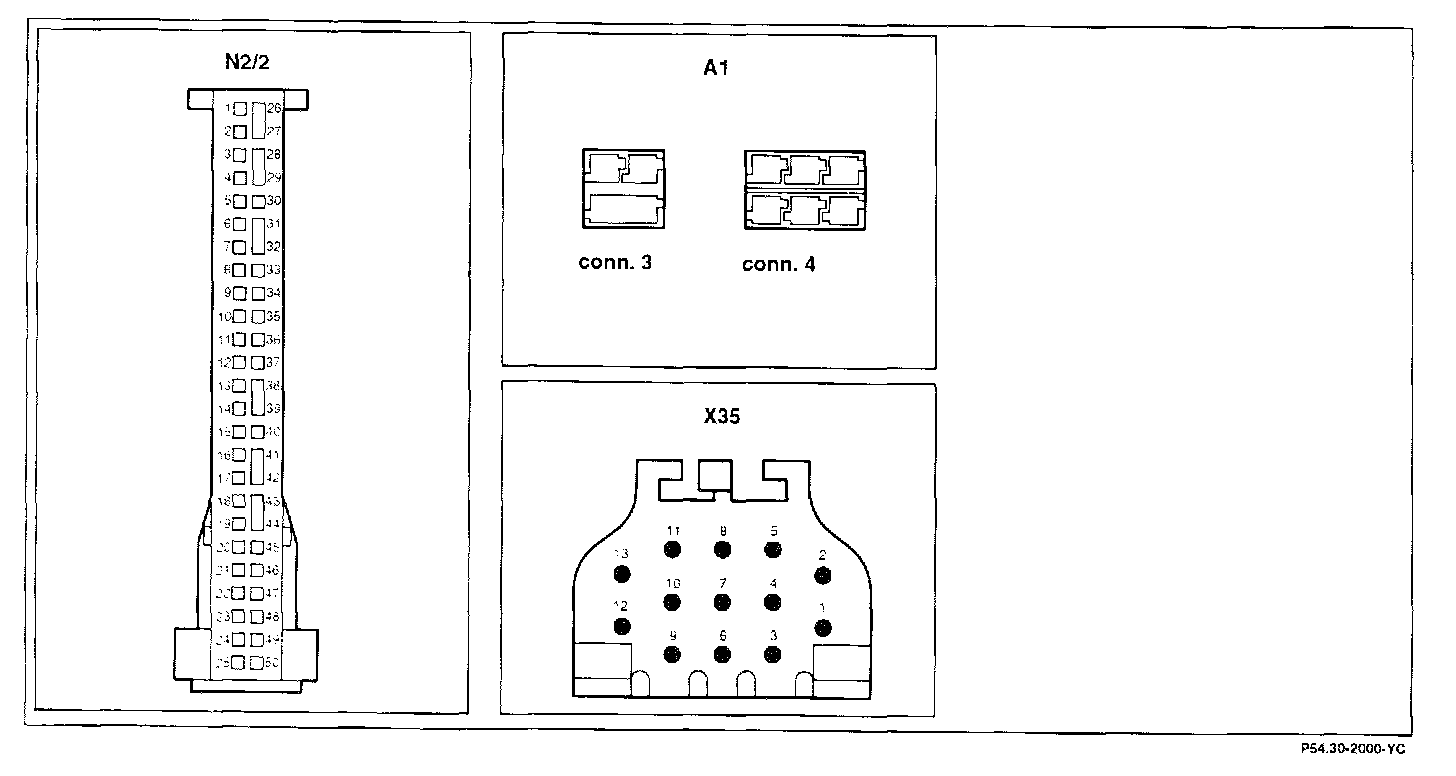

Connector Assignment:

All values measured to ground unless otherwise noted.
