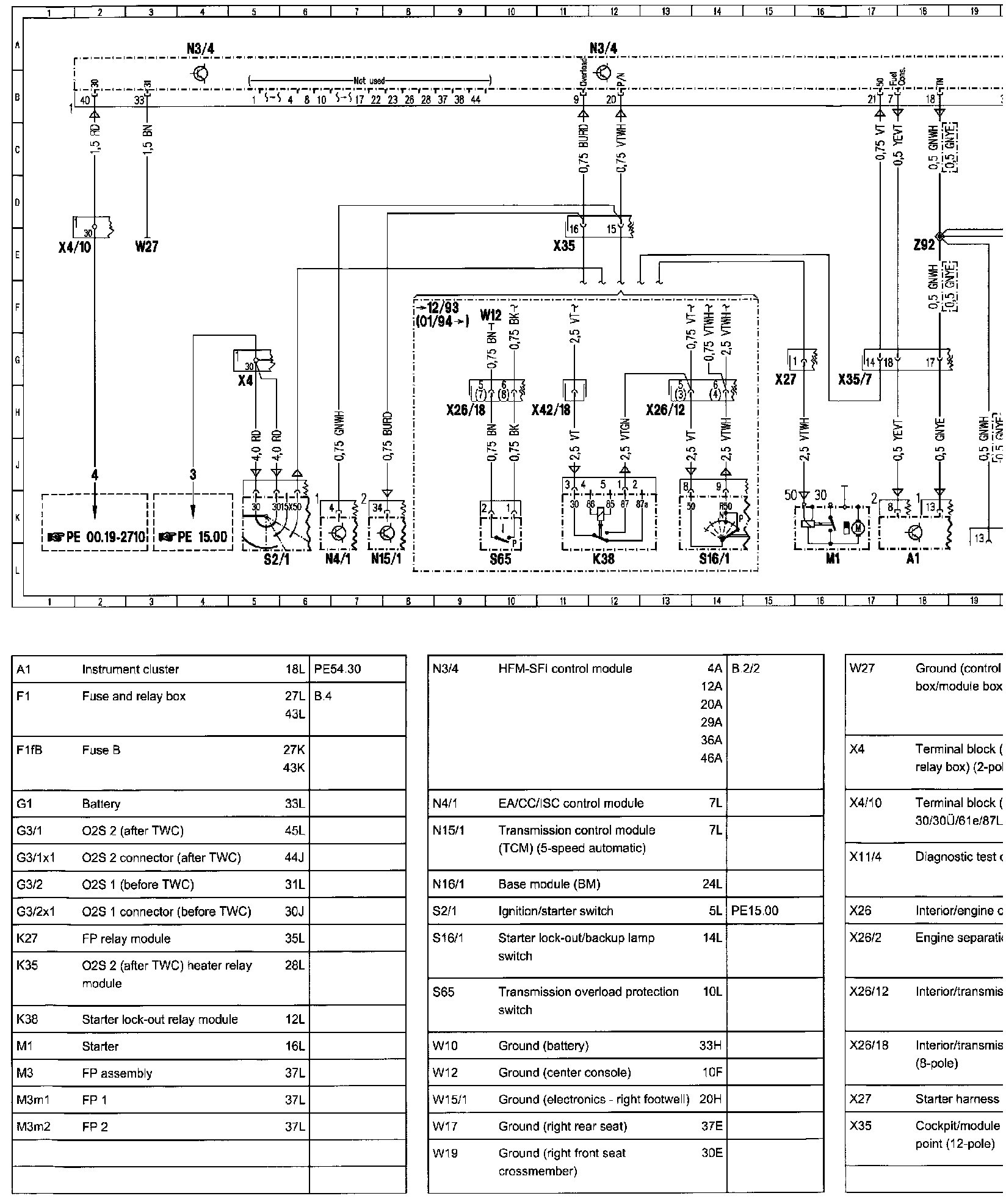

HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YA (Interior)
HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YA (Interior)
H� 3 PE07.51-U-2000YA - HFM-SFI Fuel Injection/ Ignition System:
