Timing Chain

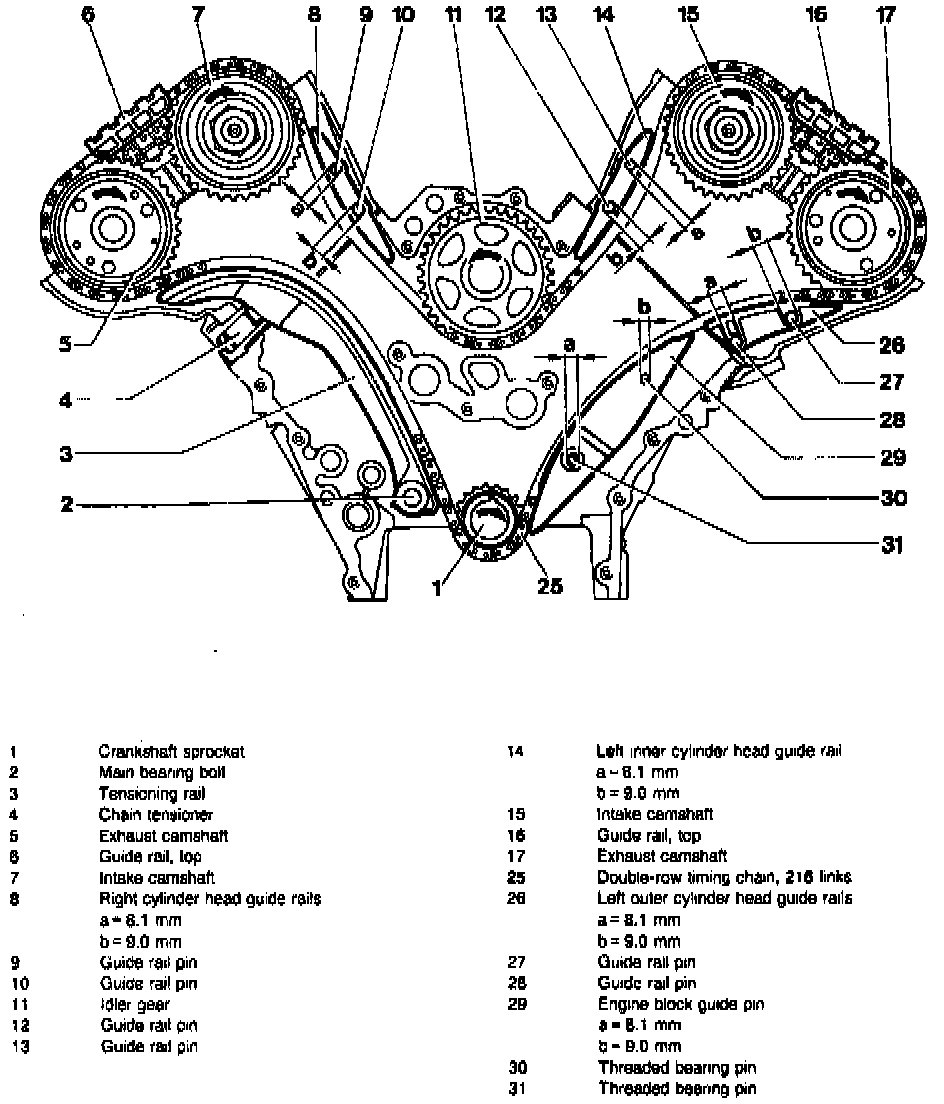

Fig. 9 Timing Chain:





Timing chain has been adapted to a lower crankcase profile, Fig. 9.
