Engine Combustion

LH-SFI Fuel Injection System

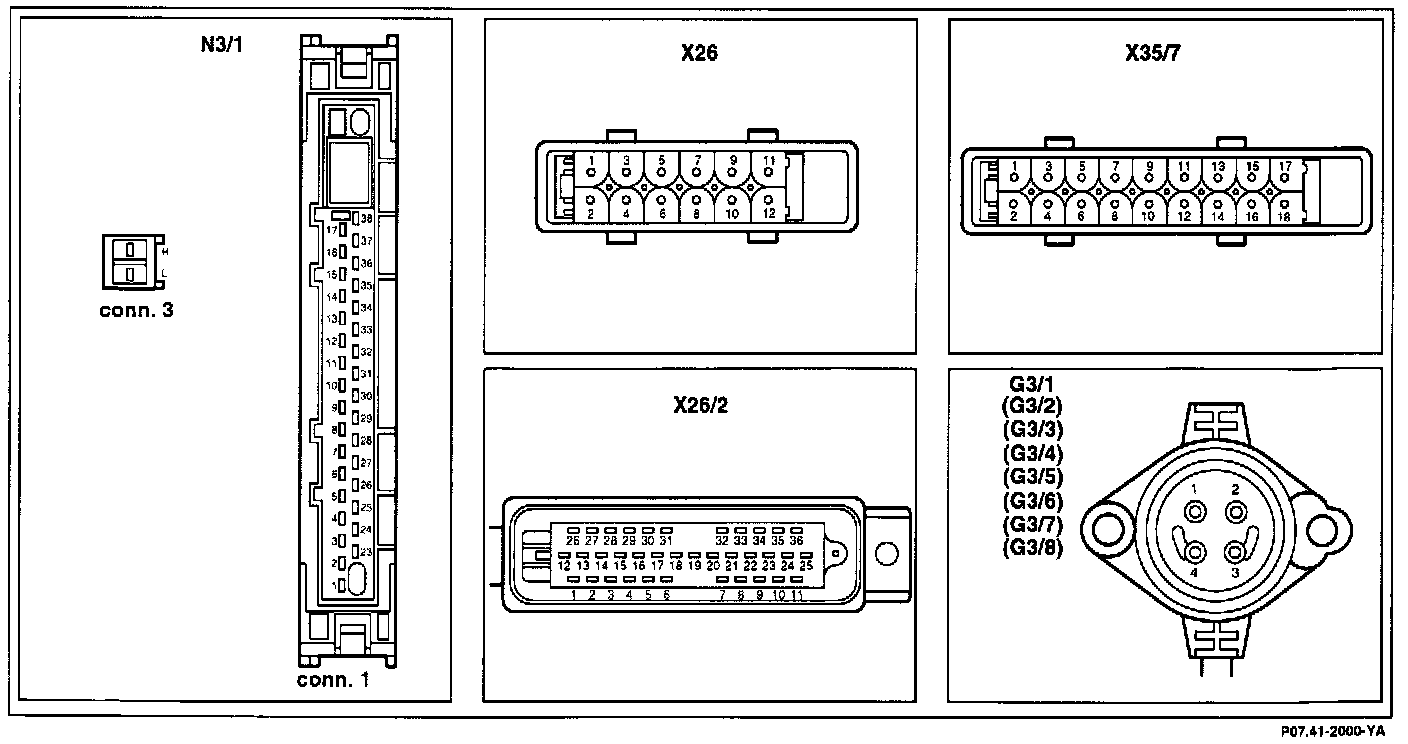

Connector Assignment:

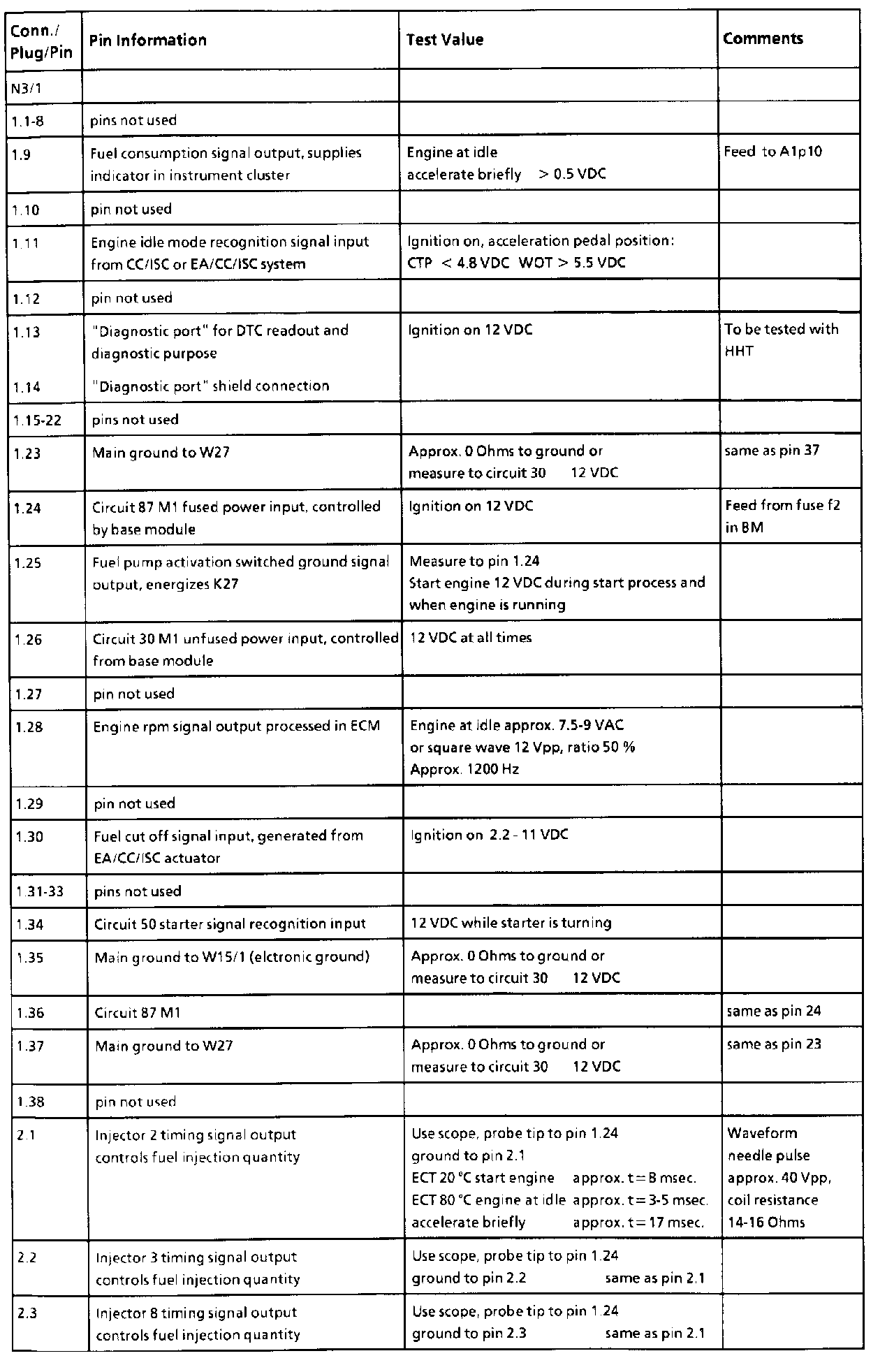

Pin Information, Part 1:

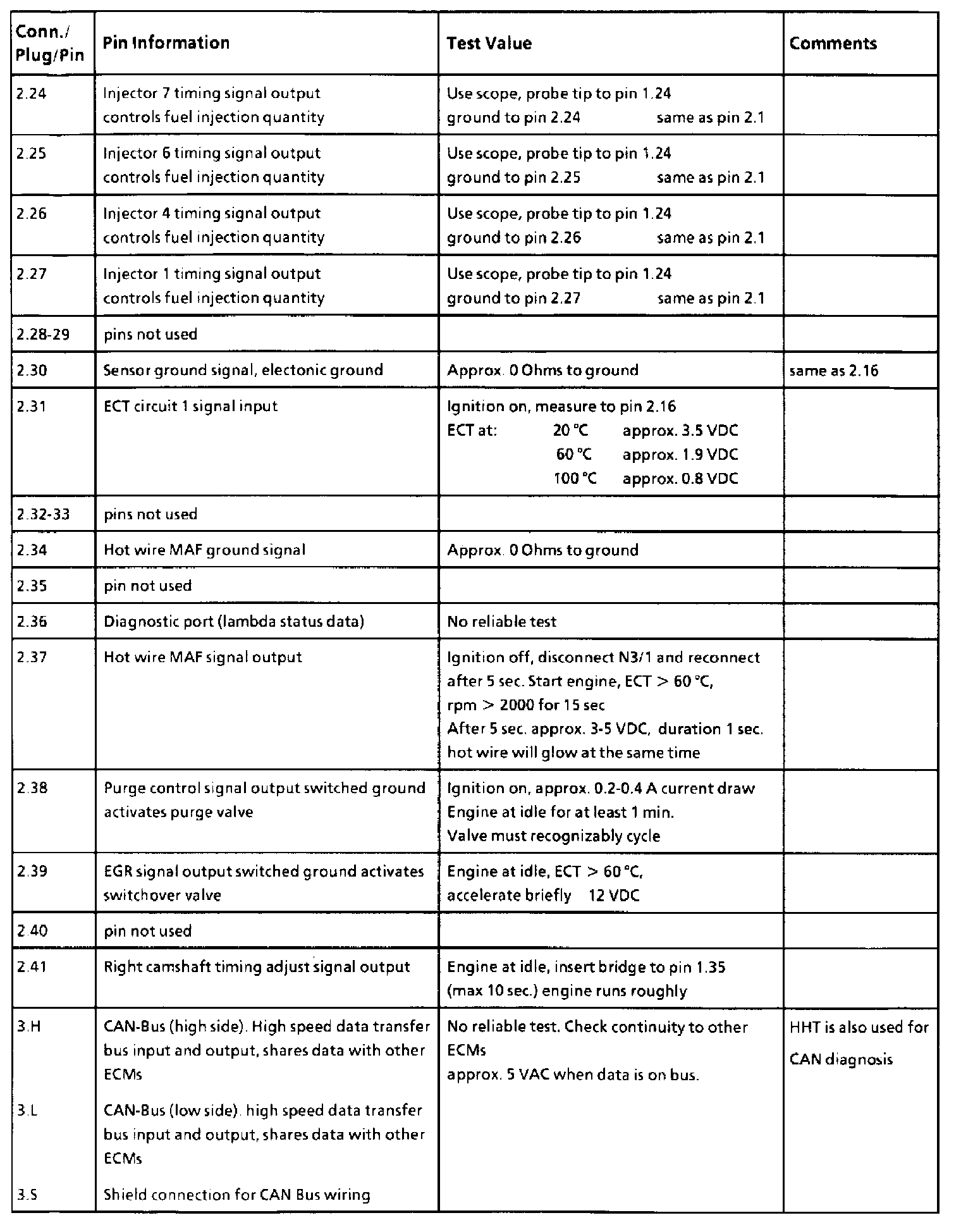

Pin Information, Part 2:

Pin Information, Part 3:

All values measure to ground unless otherwise noted
