LH-SFI Fuel Injection/Ignition System PE07.41-U-2000YA
LH-SFI Fuel Injection/Ignition System PE07.41-U-2000YA

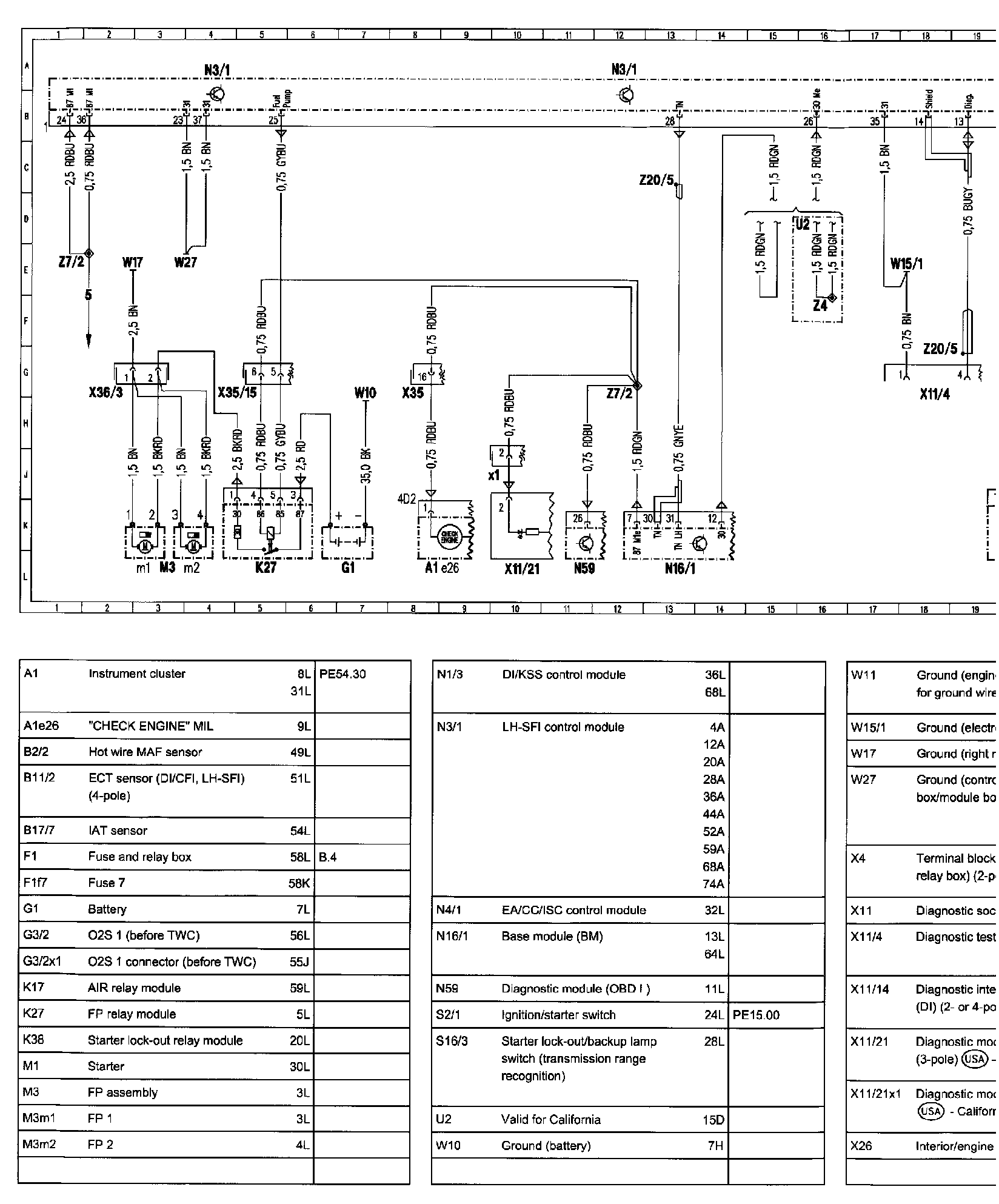

� -% �w �� PE07.41-U-2000YA - LH-SFI Fuel Injection System:
