Evaporative Emissions System: Diagrams

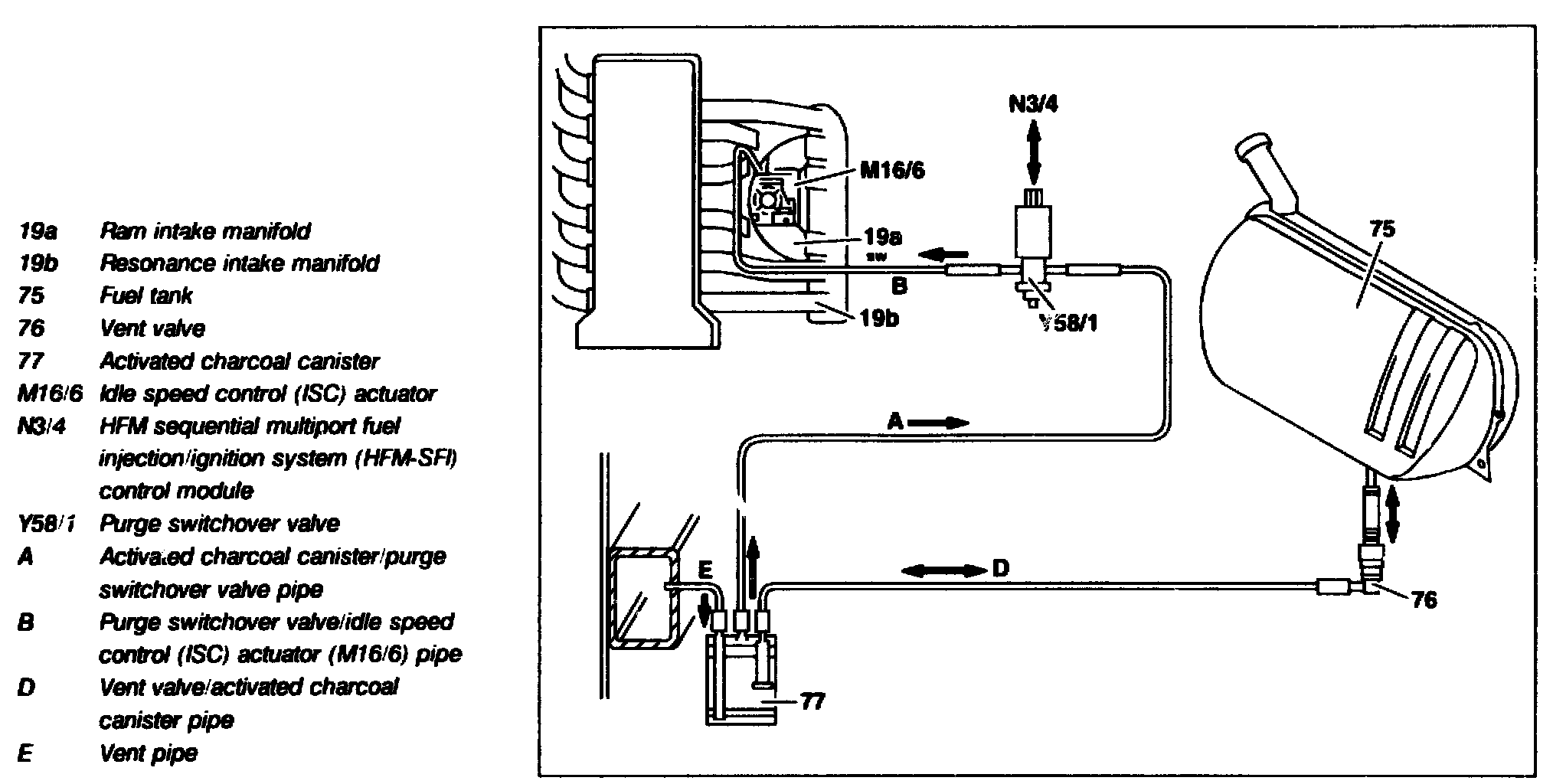

Connecting diagram of evaporation emission control system HFM-SFI models 124, 129, 140 without ski bag with engine 104
Shown on model 124

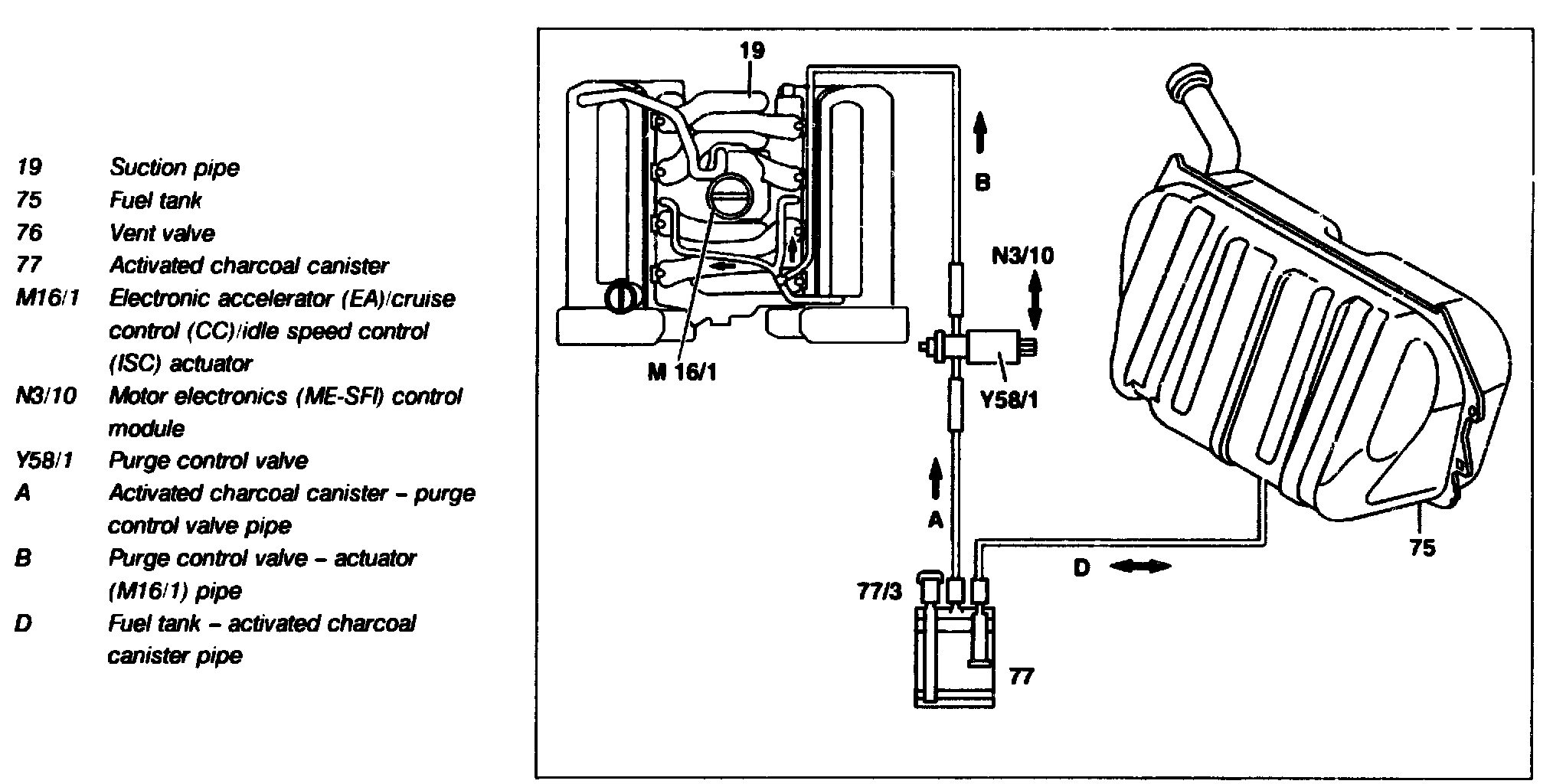

Connection diagram of evaporative emission control system, ME-SFI model 129, 140, 210 with engine 119.98

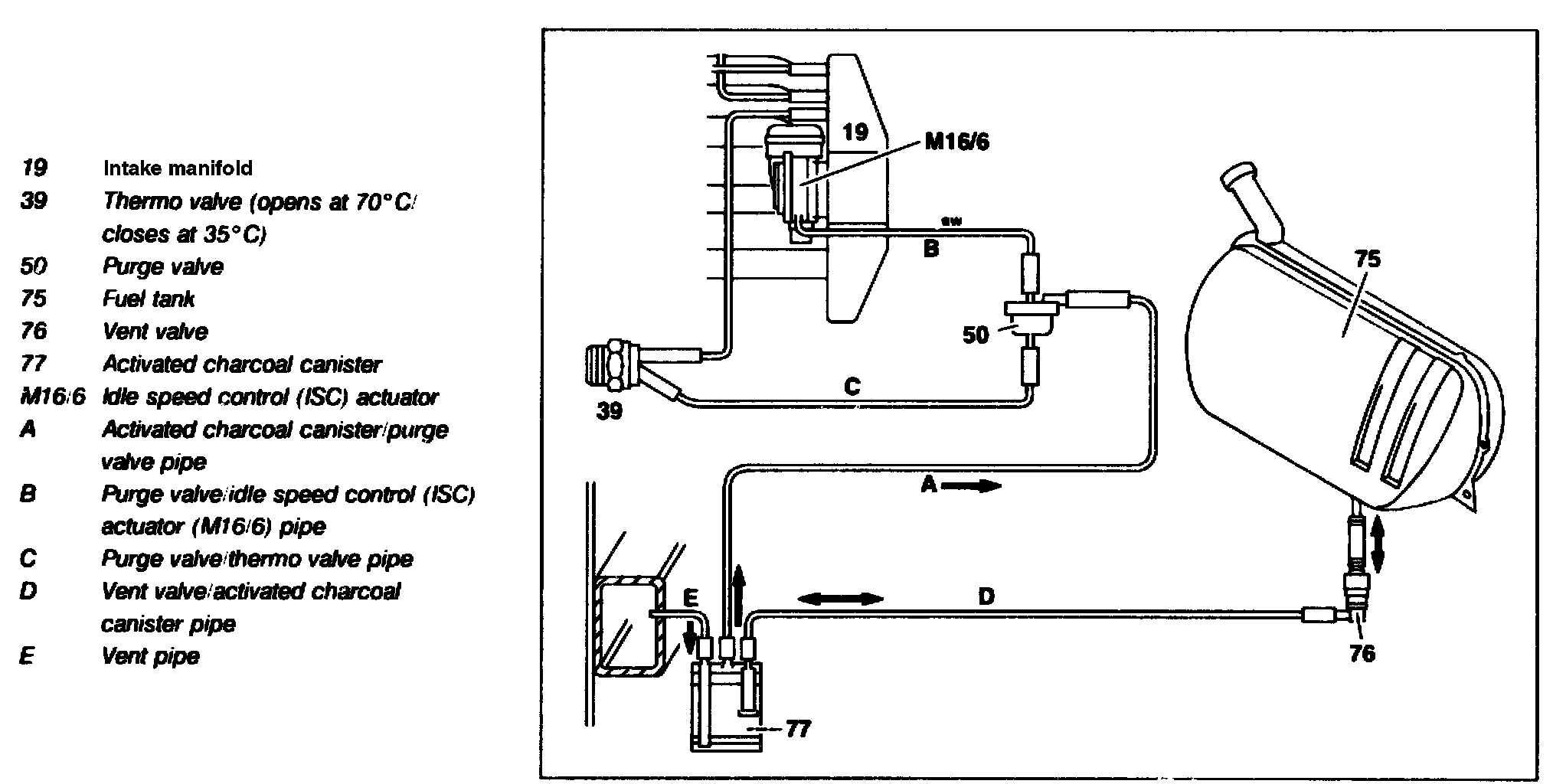

Connecting diagram of evaporation emission control system PEC 1st version model 124 with engine 111

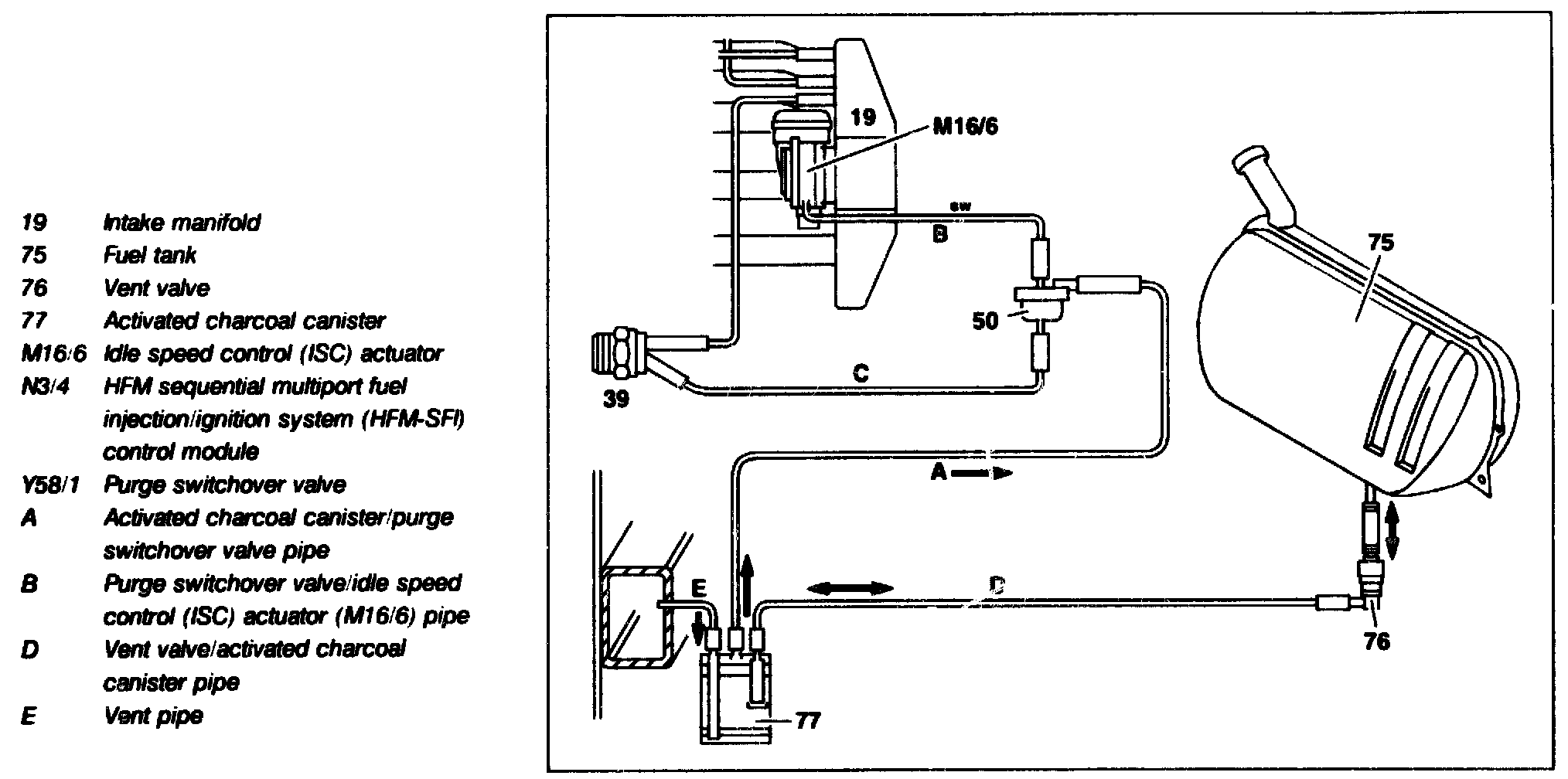

Connecting diagram of evaporation emission control system HFM-SFI model 124 and PEC 2nd version model 124 with engine 111

Shown on engine 111 with HFM-SFI

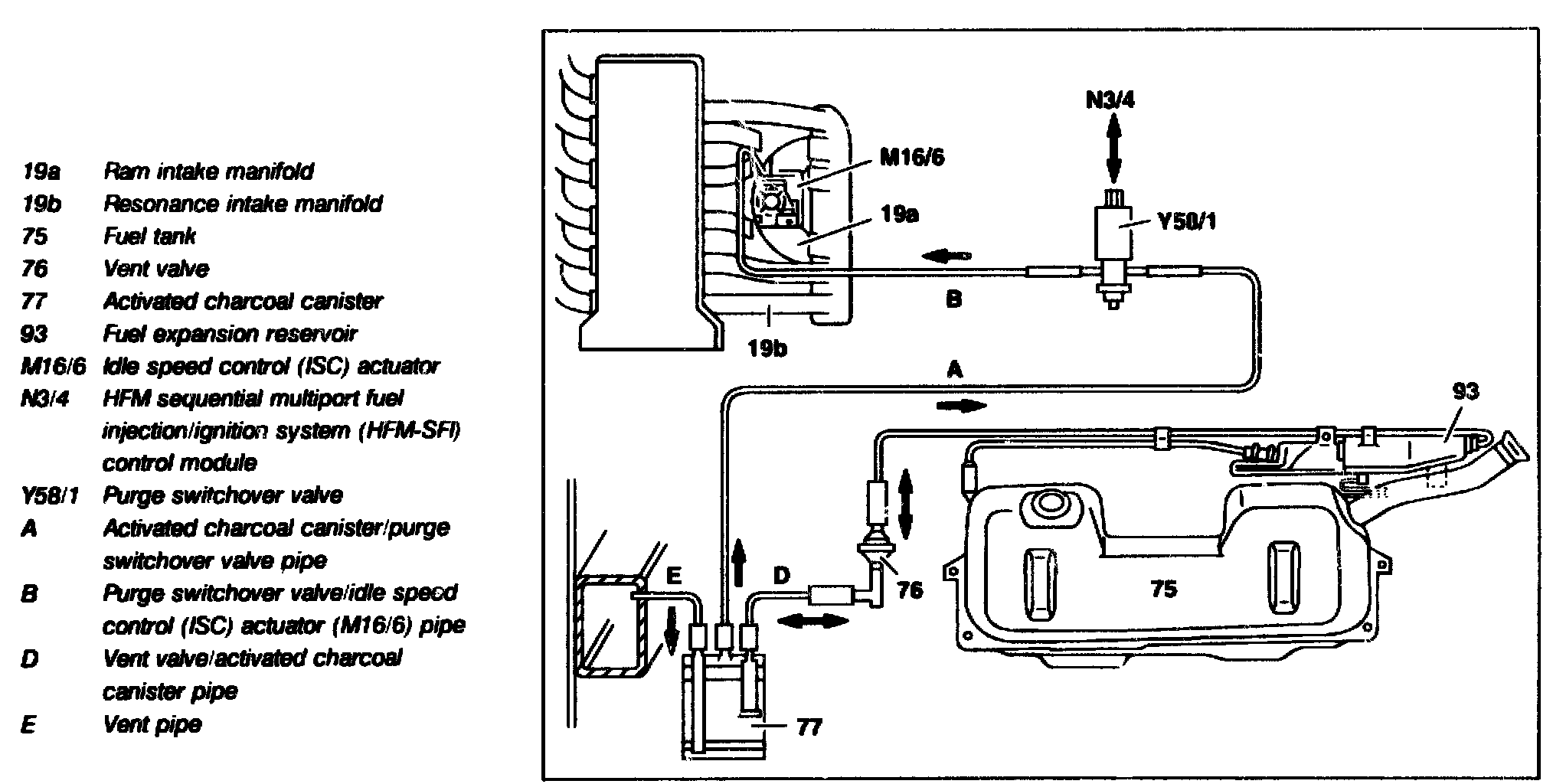

Connecting diagram of evaporation emission control system HFM-SFI model 140, engine 104 with ski bag

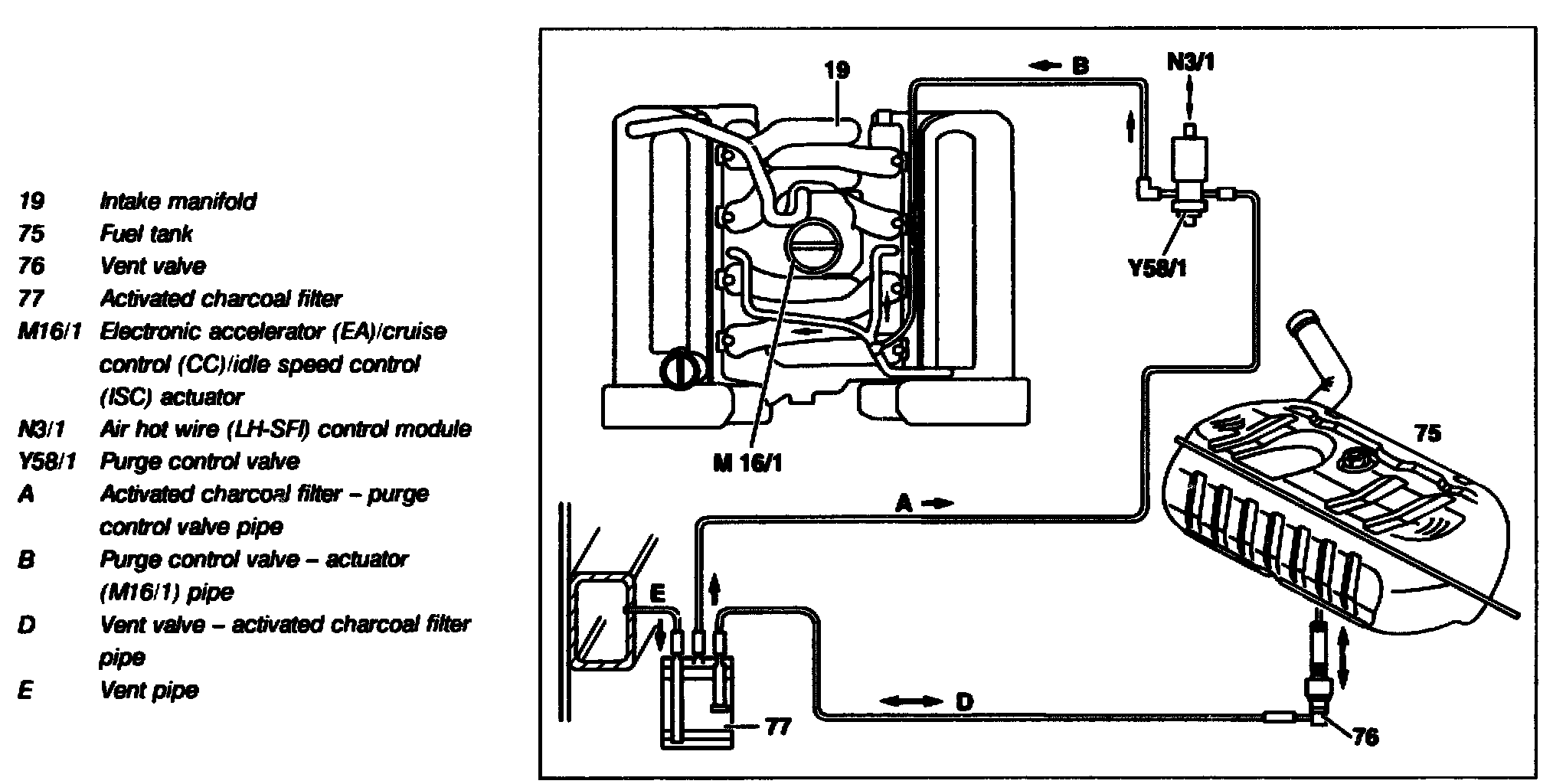

Connection diagram of LH-SFI evaporative emission control system model 129, 140 without skibag with engine 119.97






Connection diagram of LH-SFI evaporative emission control system model 140 with skibag with engine 119.97






Connection diagram of LH-SFI evaporative emission control system model 124 with engine 119.97
