Anti-Theft Alarm System (ATA) PE80.50-U-2000YB
Anti-Theft Alarm System (ATA) PE80.50-U-2000YB

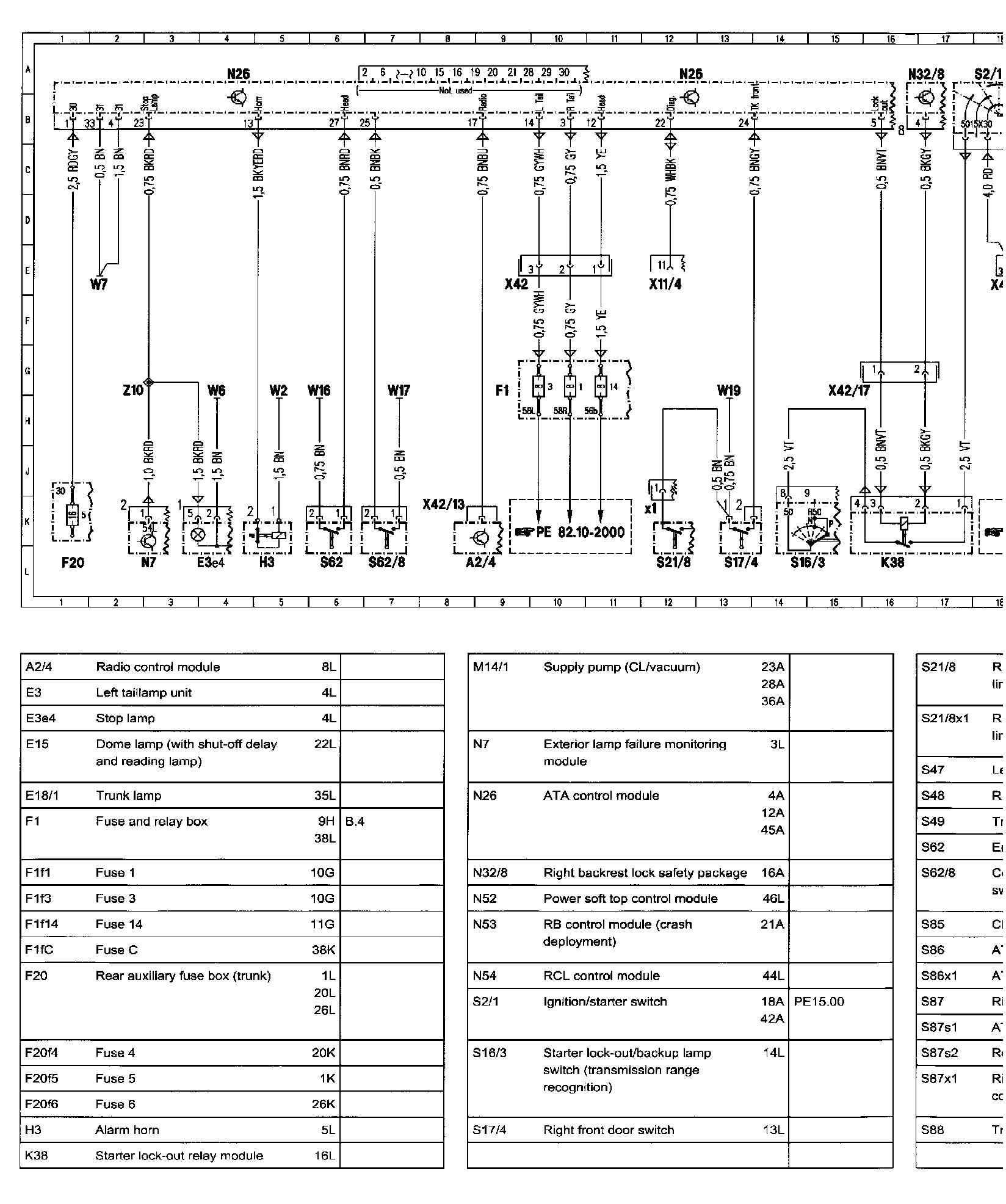

Wiring Diagrams
��;�W�;PE80.50-U-2000YB:
Connector Assignment:

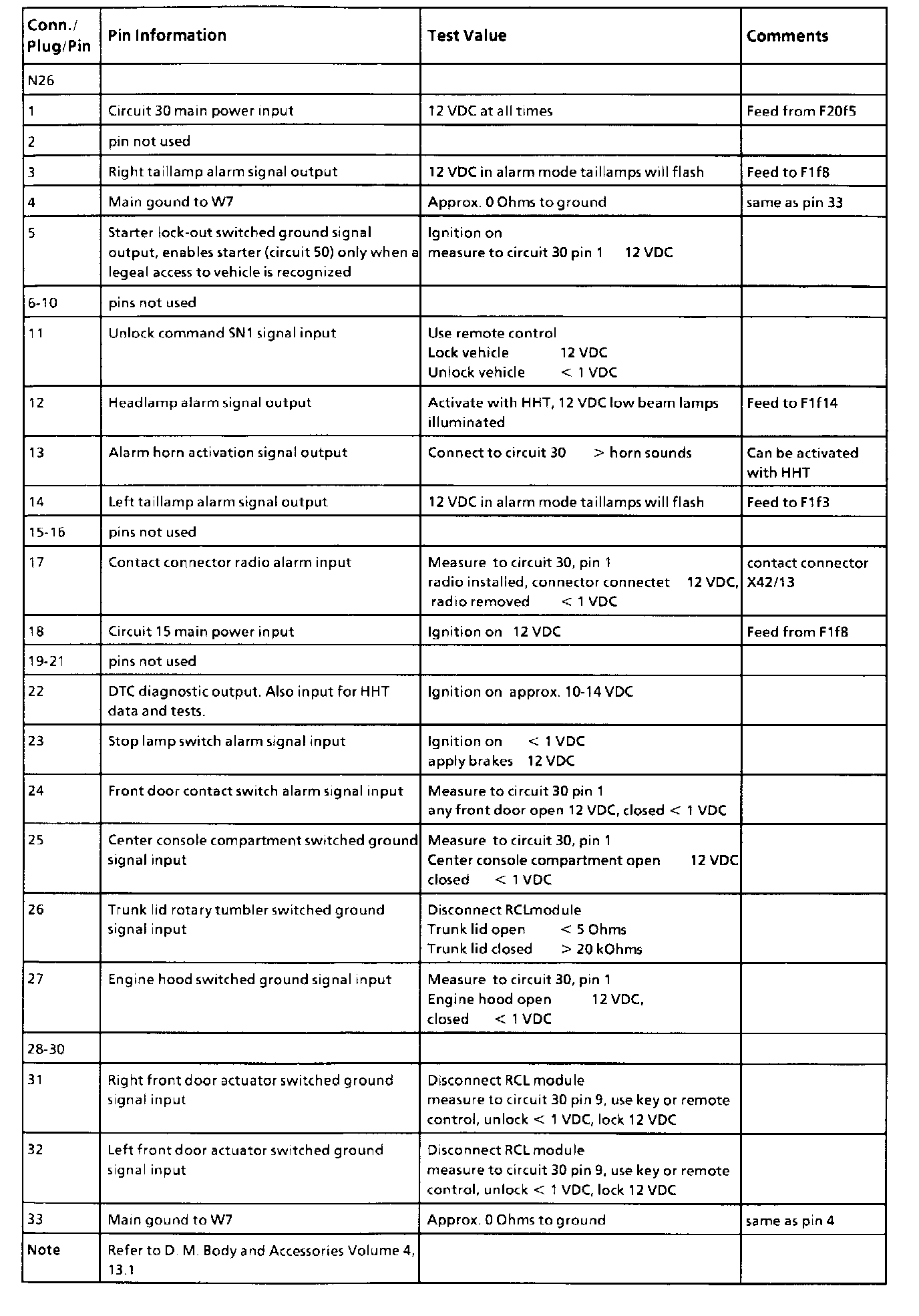

Pin Information:
All values measure to ground unless otherwise noted.
