Suspension Control ( Automatic - Electronic )

Adaptive Damping System (ADS) PE32.32-U-2000YB

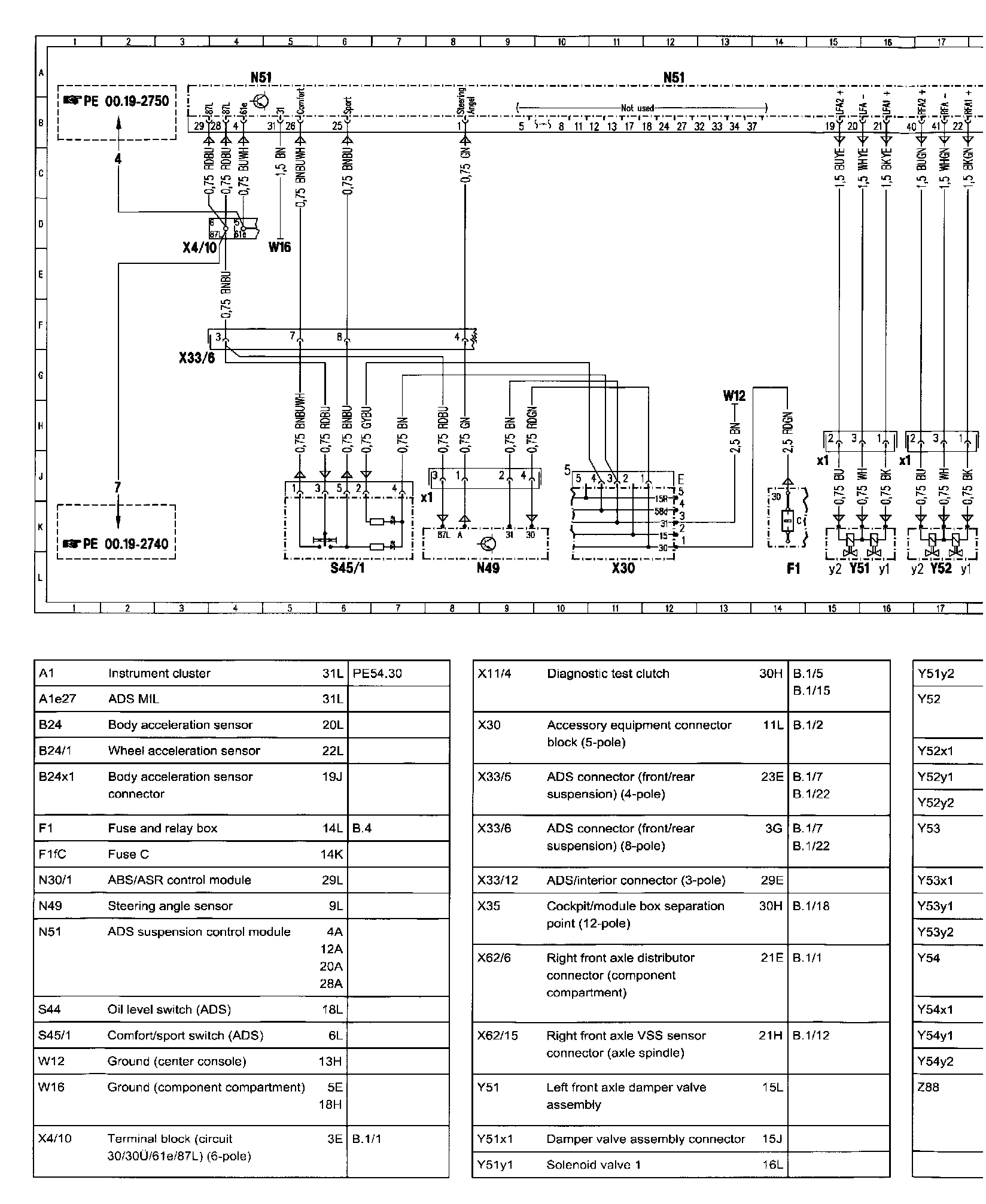

Wiring Diagrams

�'�*PE32.32-U-2000YB:

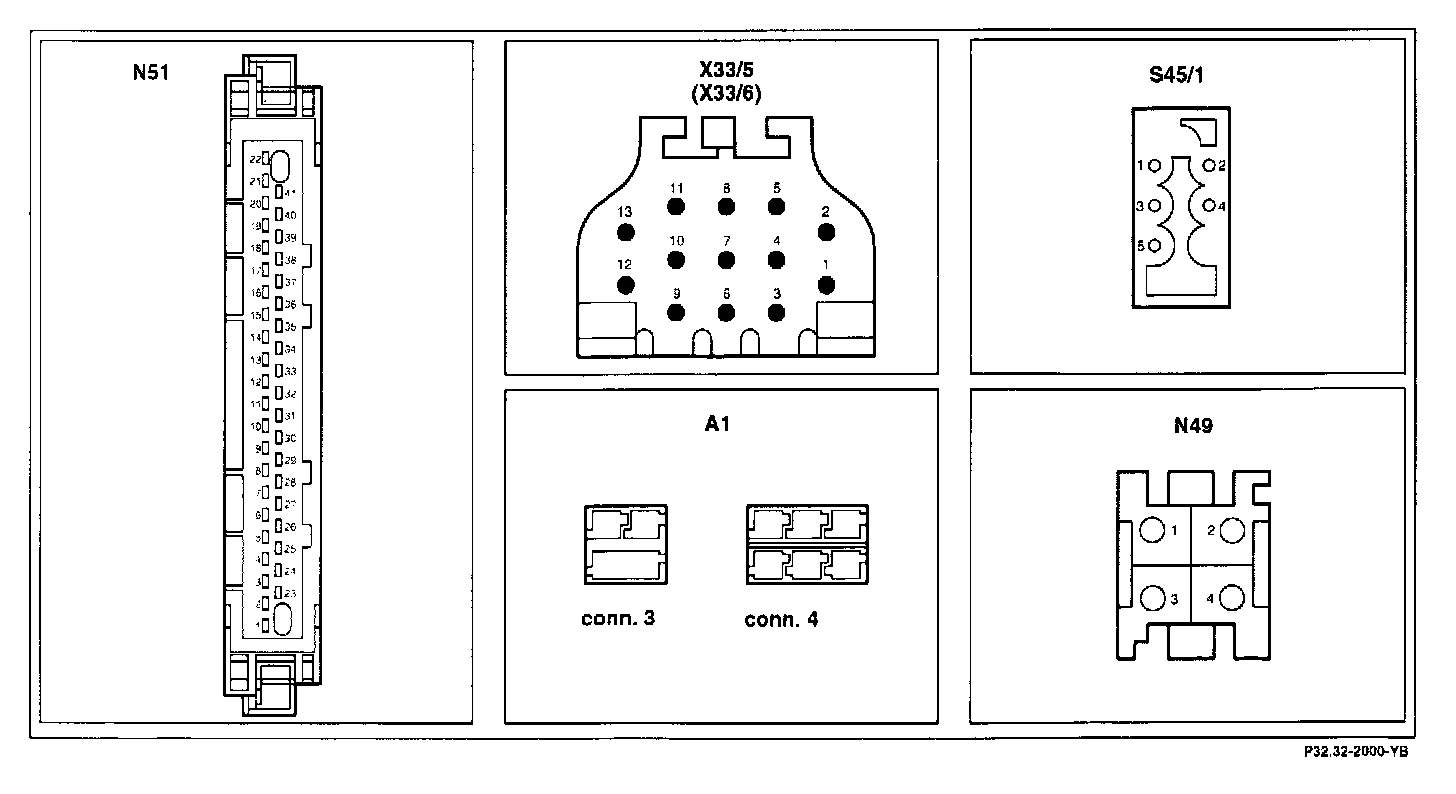

Connector Assignment:

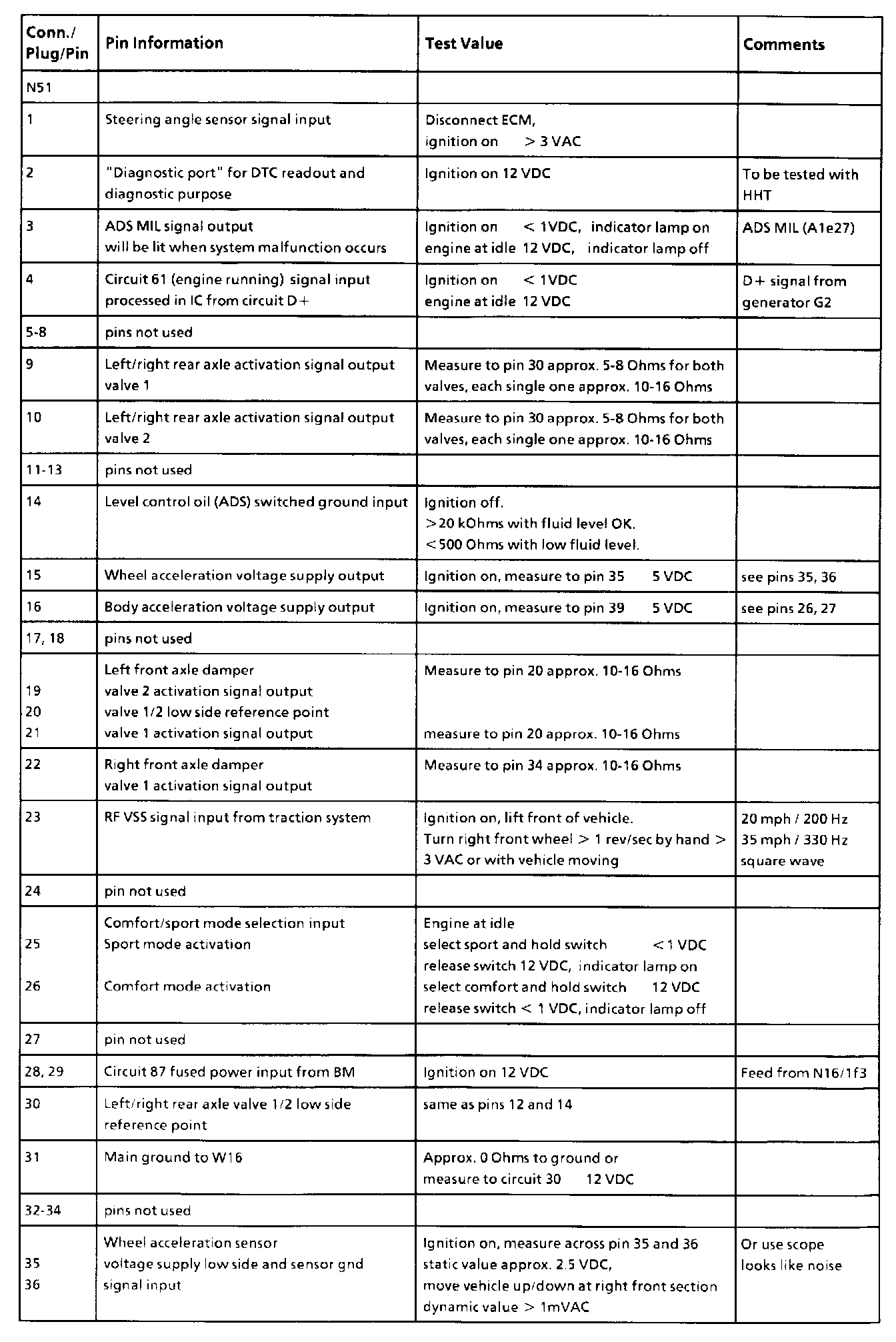

Pin Information, Part 1:

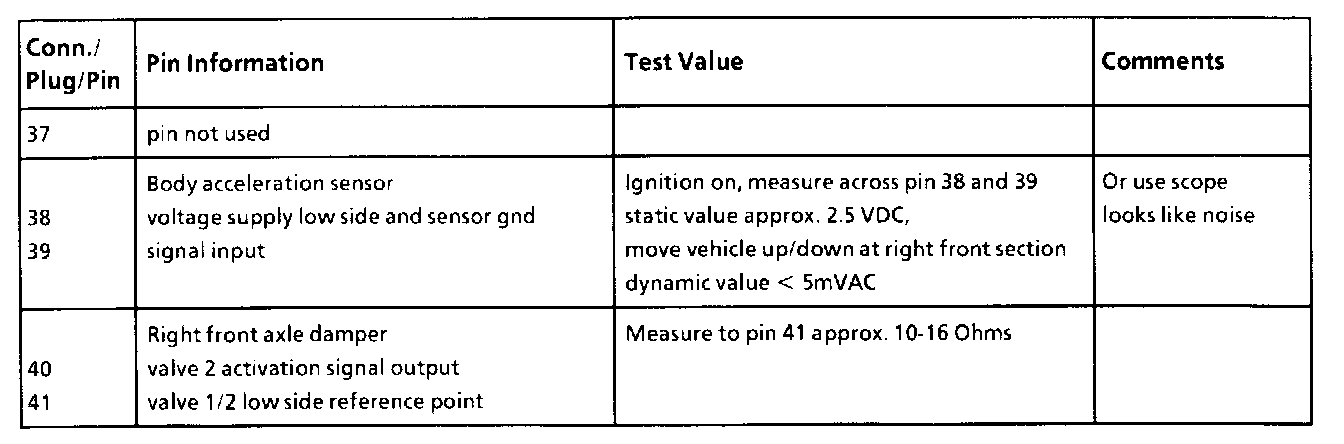

Pin Information, Part 2:

All values measured to ground unless otherwise noted.
