LH-SFI Fuel Injection/Ignition System PE07.41-U-2000YB (Right Bank)
LH-SFI Fuel Injection/Ignition System PE07.41-U-2000YB (Right Bank)

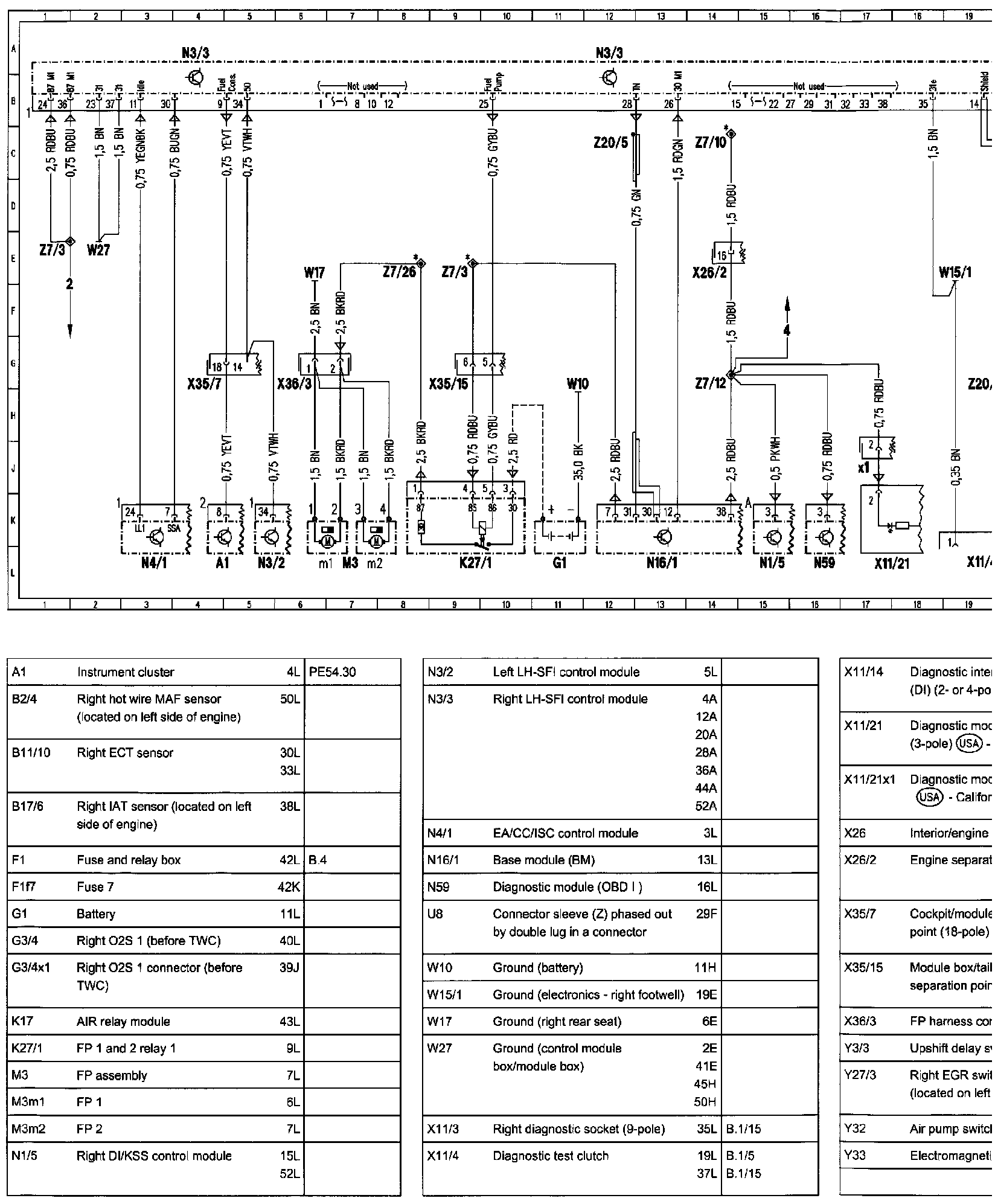

� �w PE07.41-U-2000YB - LH-SFI Fuel Injection System:
