Exhaust Gas Recirculation: Locations

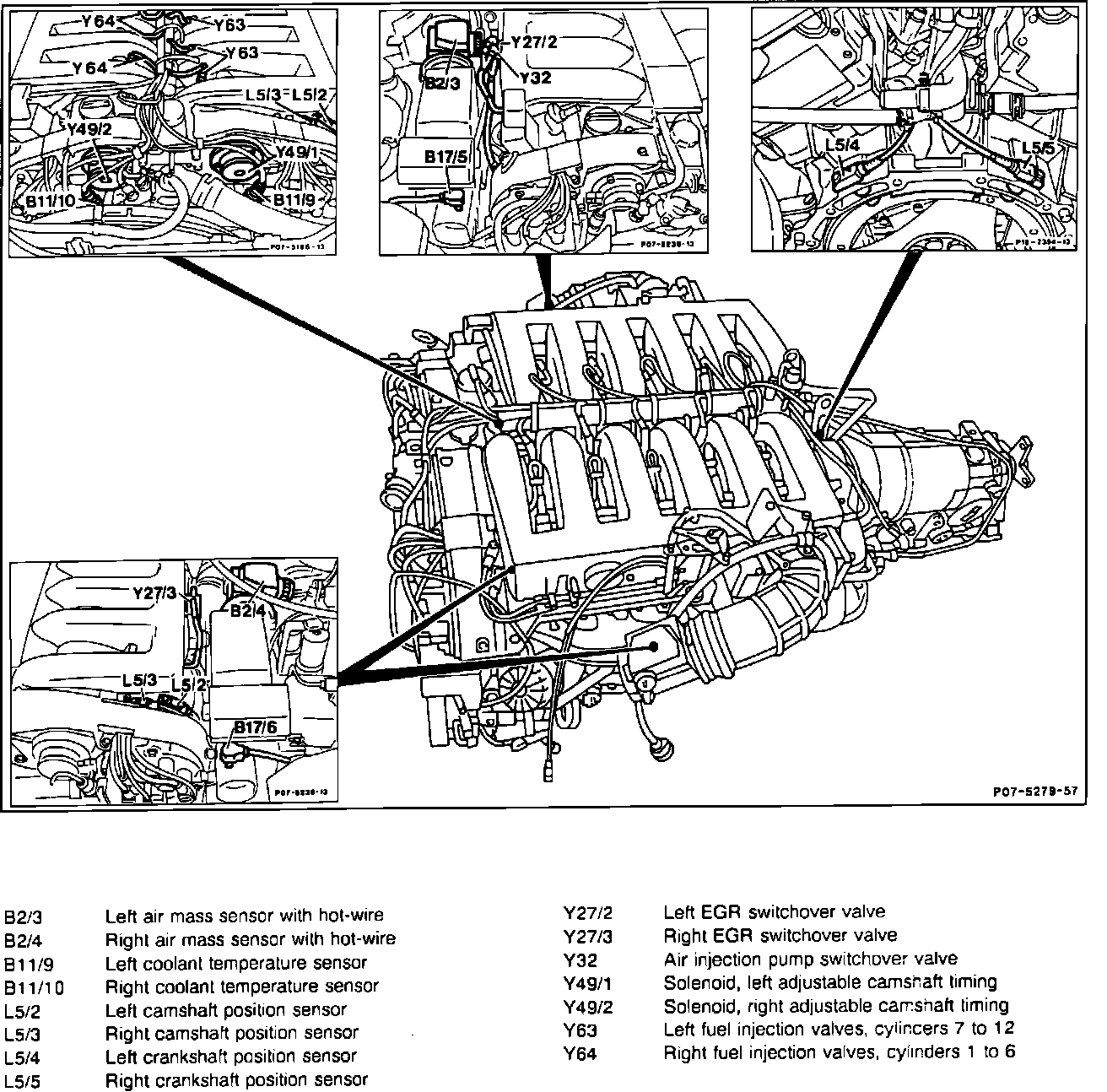

CEC Component Location:
EGR SWITCHOVER VALVES (Y27/2 AND Y27/3)
Left EGR Valve (89) And Right EGR Valve (89a):
EGR VALVES (89 AND 89a)
