Cylinder Head Torque & Sequence

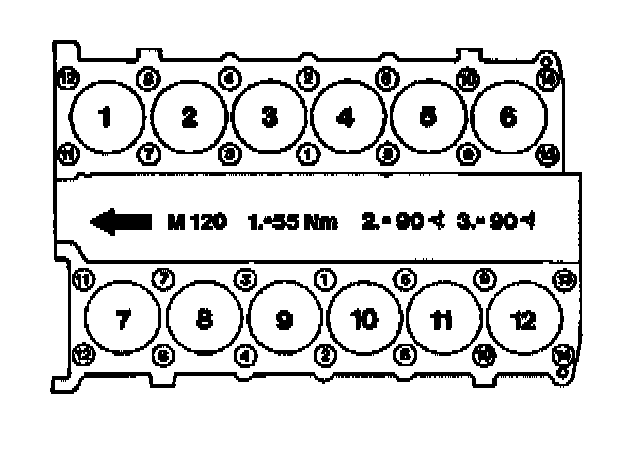

Cylinder HeadTighten cylinder head bolts in stages in the order of the tightening diagram.
1st tightening stage 55 Nm.
2nd tightening stage 90° tightening angle.
3rd tightening stage 90° tightening angle
Timing Case Cover:
Cylinder Head:
Intake Manifold:

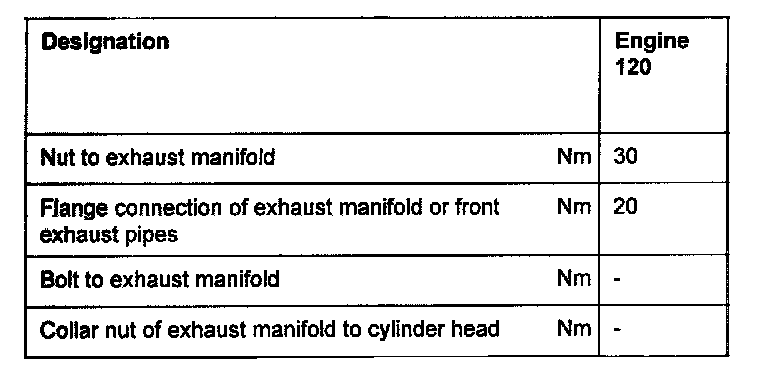

Exhaust Manifold:
