Cruise Control (CC)/Idle Speed Control (ISC) PE30.21-U-2000WA

Cruise Control (CC)/idle Speed Control (ISC) PE30.21-U-2000WA

Wiring Diagram, Part 1:

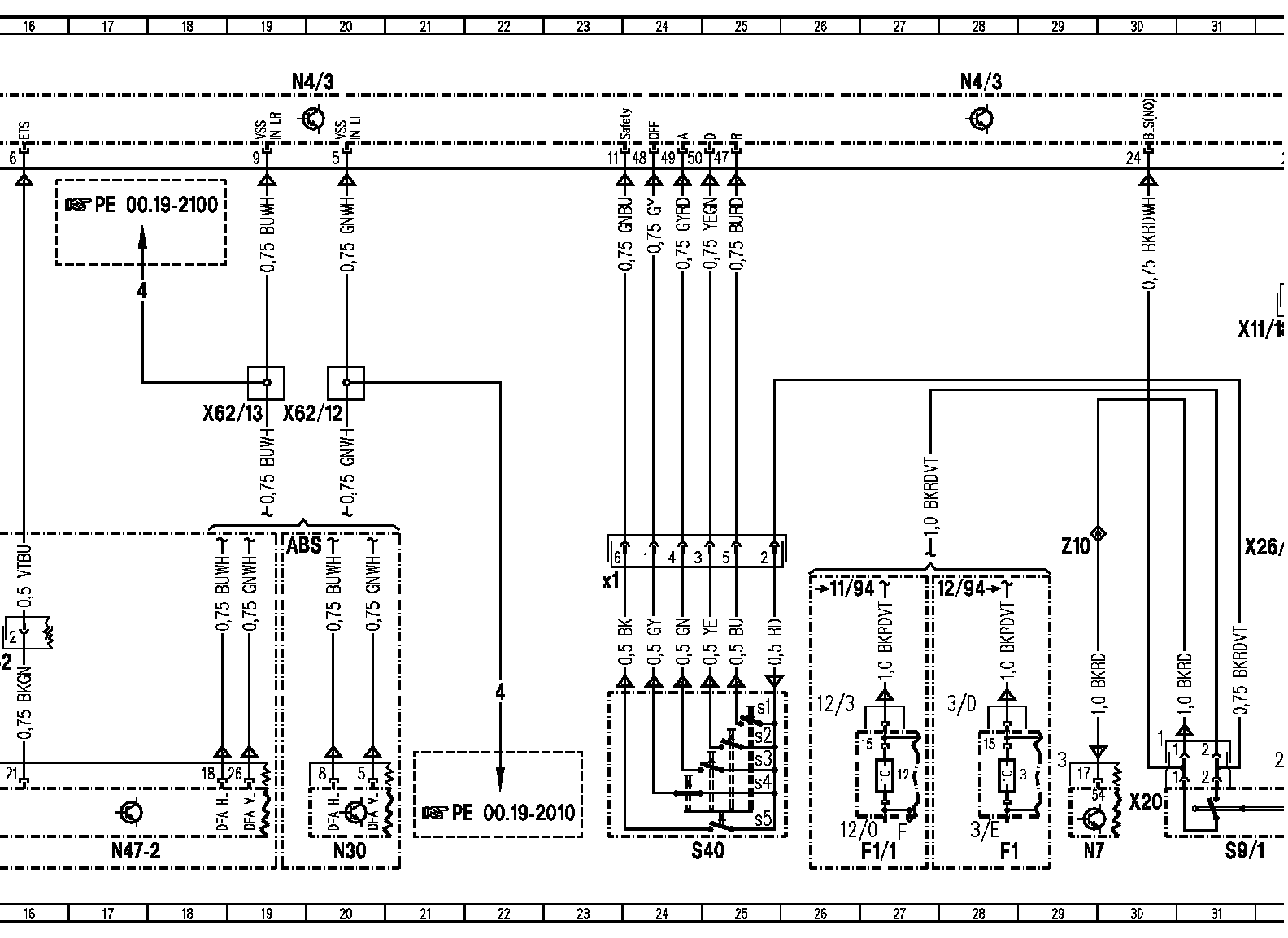

Wiring Diagram, Part 2:

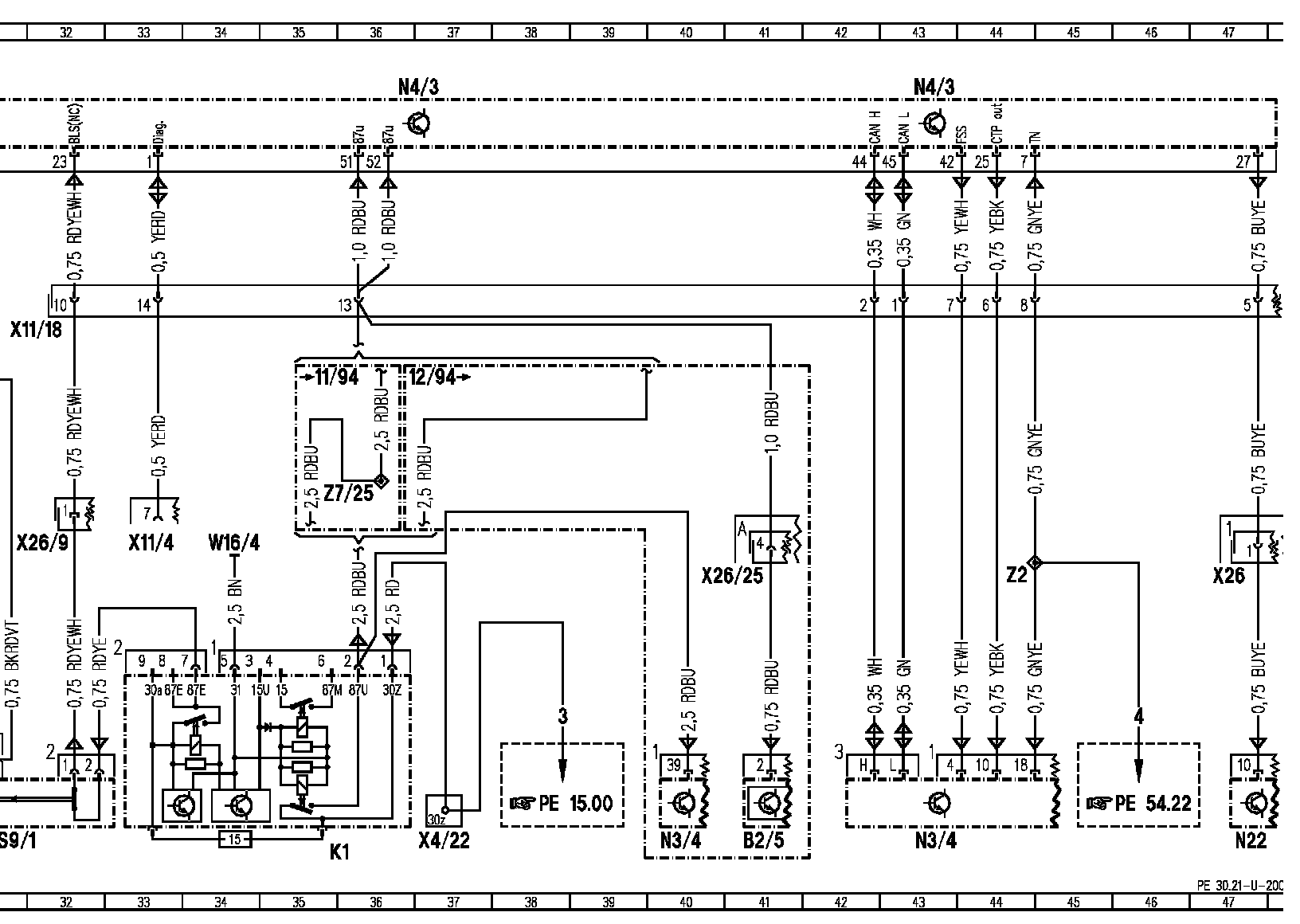

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

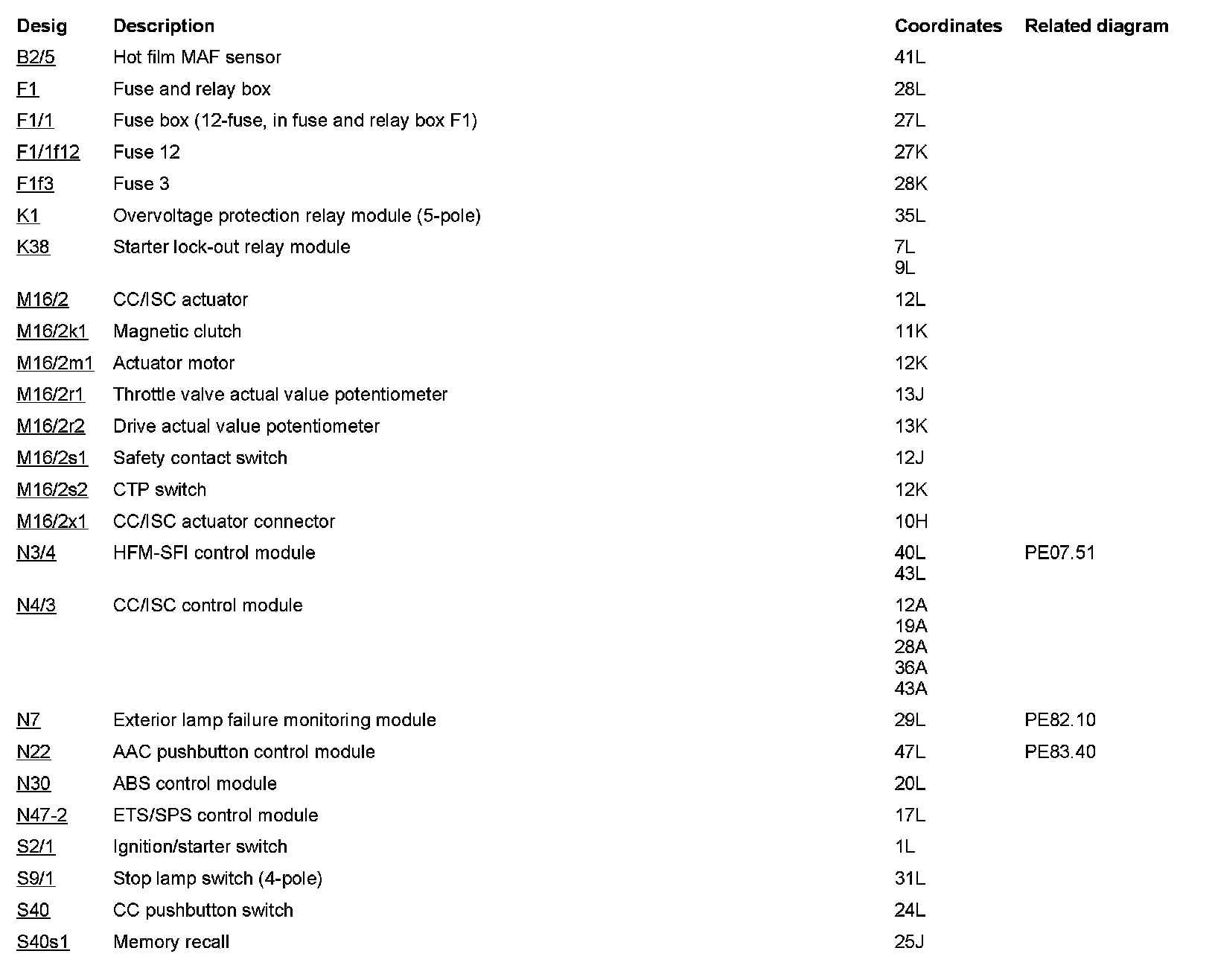

Component Description/Coordinates, B2/5 To S40s1:

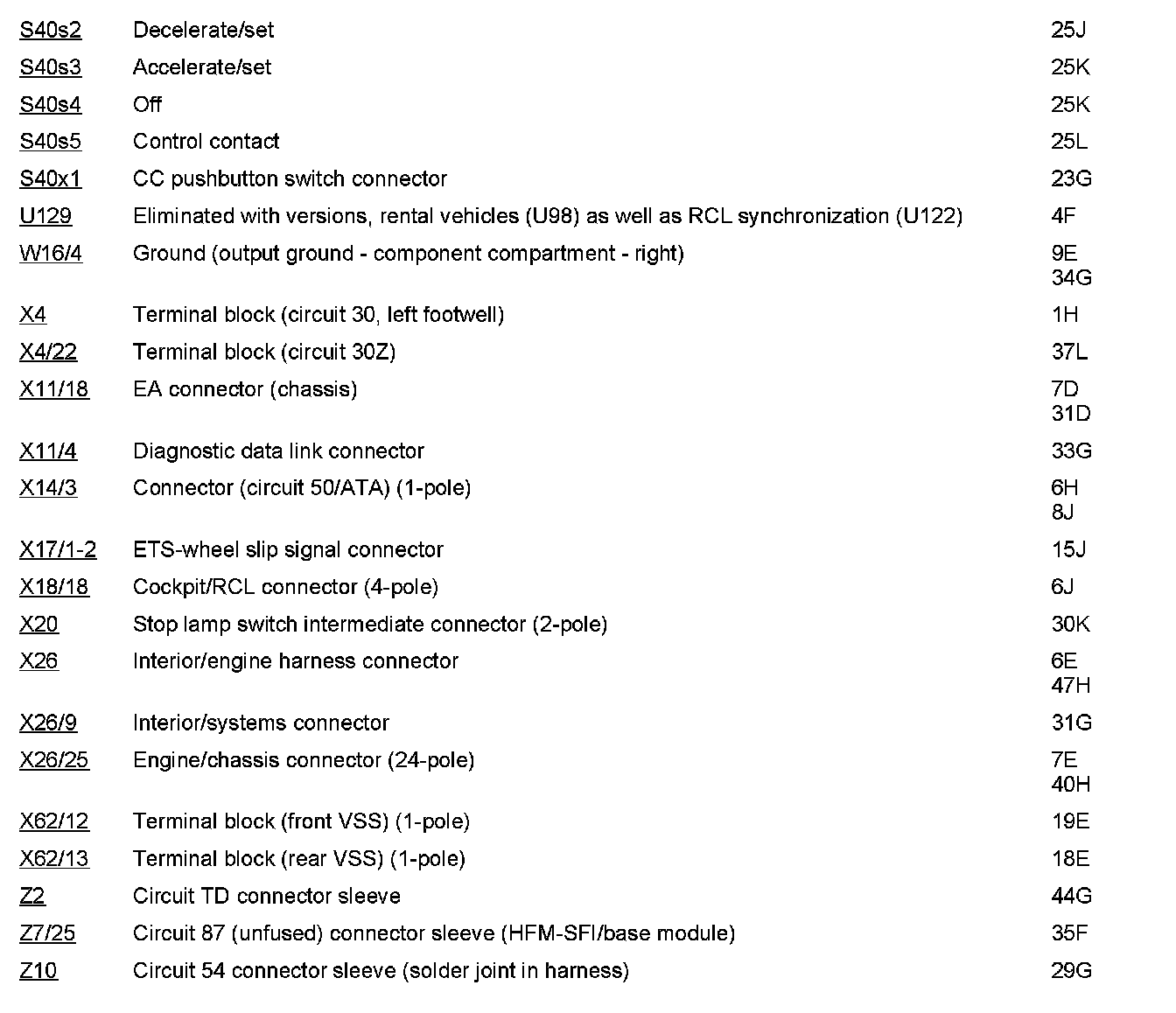

Component Description/Coordinates, S40s2 To Z10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
