Electronic Accelerator (EA)/Cruise Control (CC)/Idle Speed Control (ISC) PE30.20-U-2000WB

Electronic Accelerator (EA)/cruise Control (CC)/idle Speed Control (ISC) PE30.20-U-2000WB

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

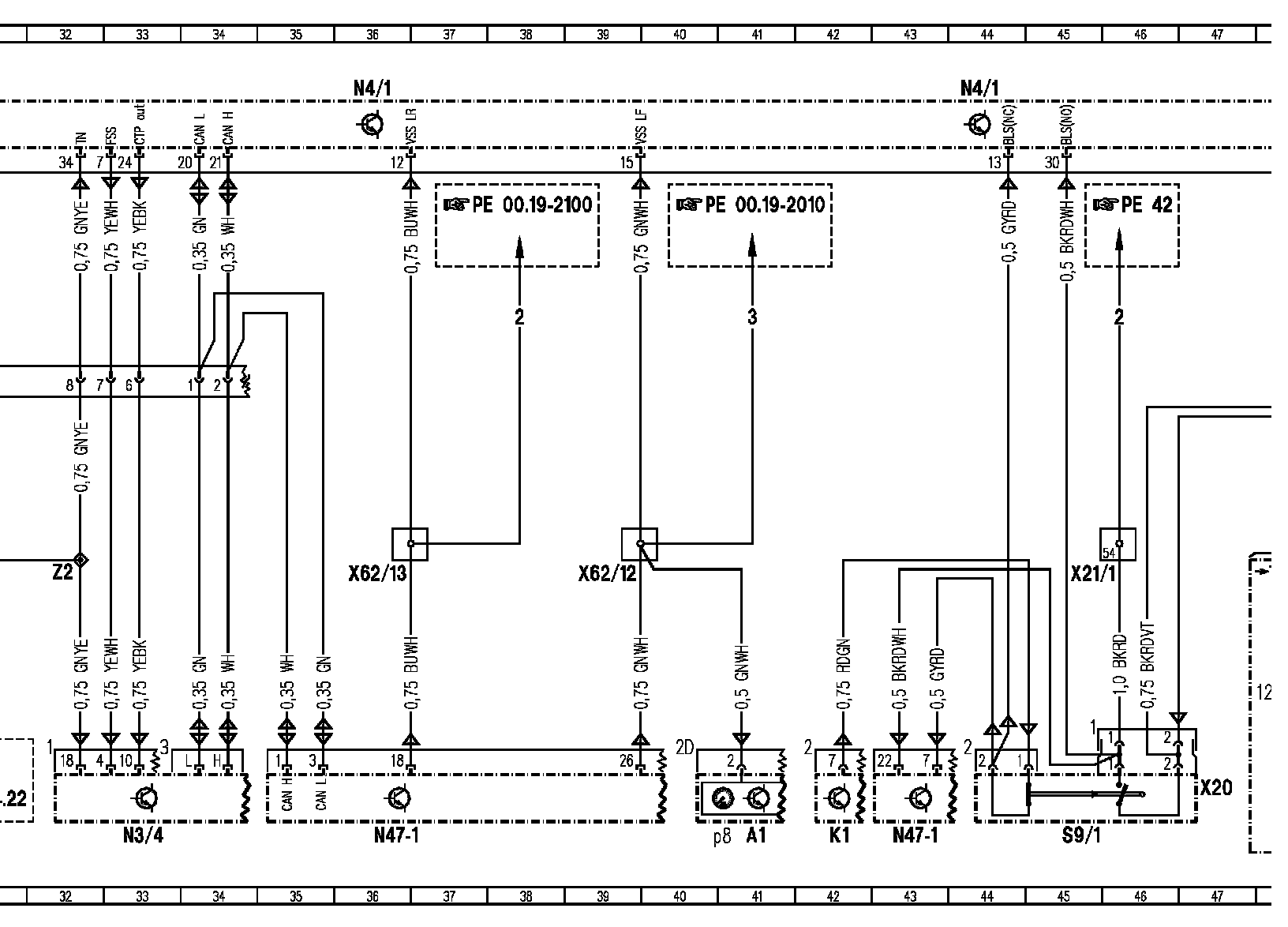

Wiring Diagram, Part 3:

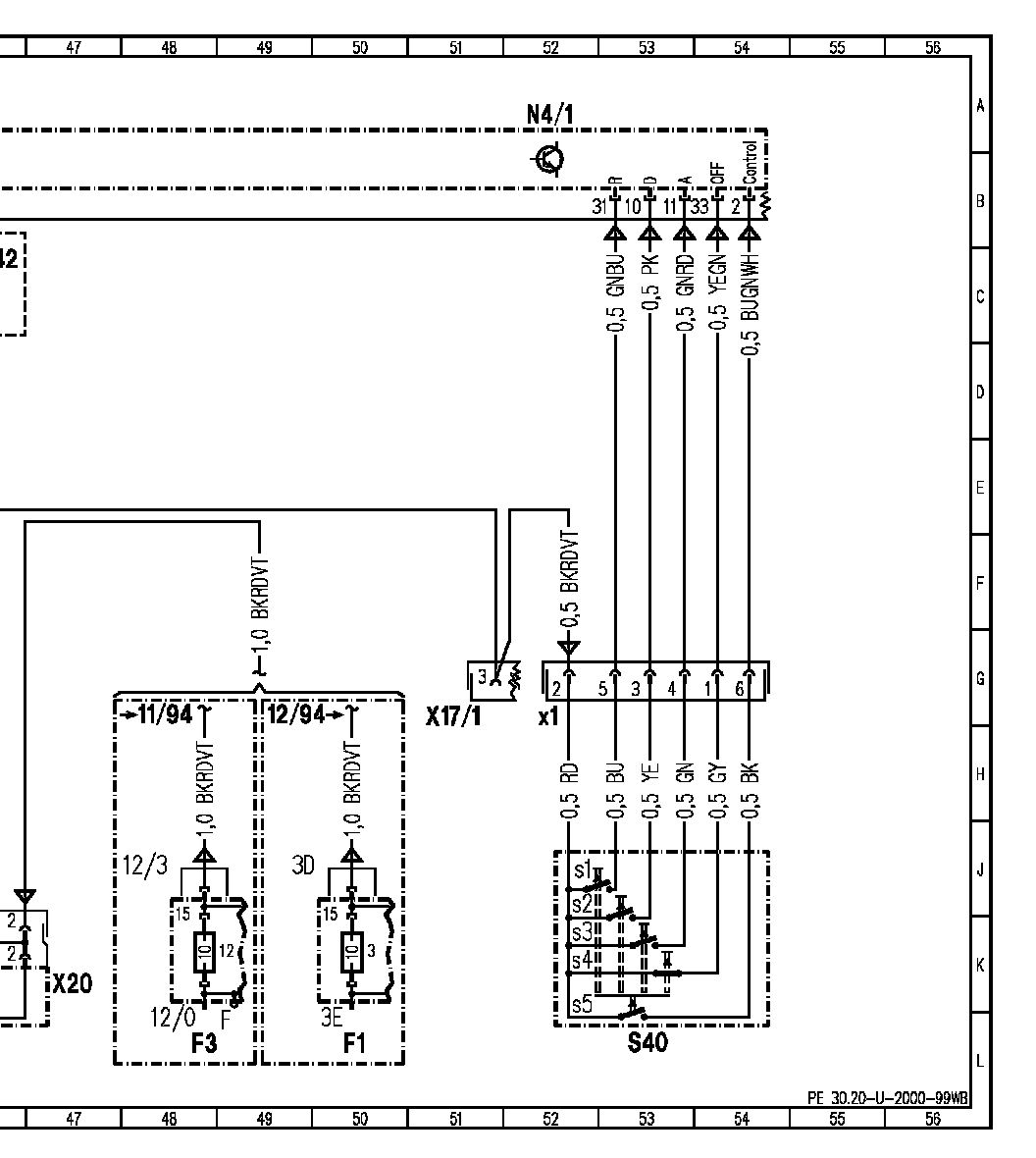

Wiring Diagram, Part 4:

Component Description/Coordinates, A1 To N4/1:

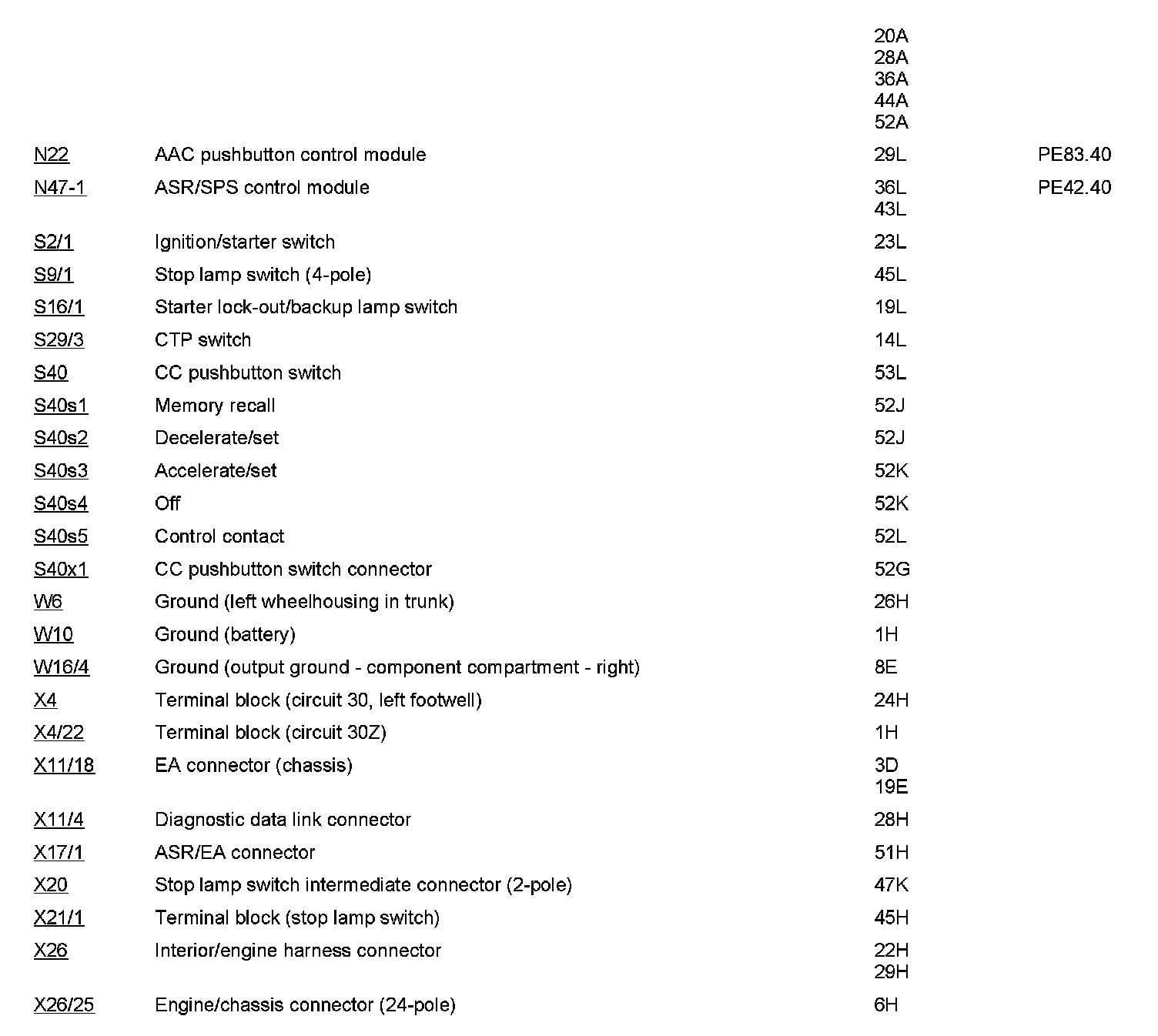

Component Description/Coordinates, N22 To X26/25:

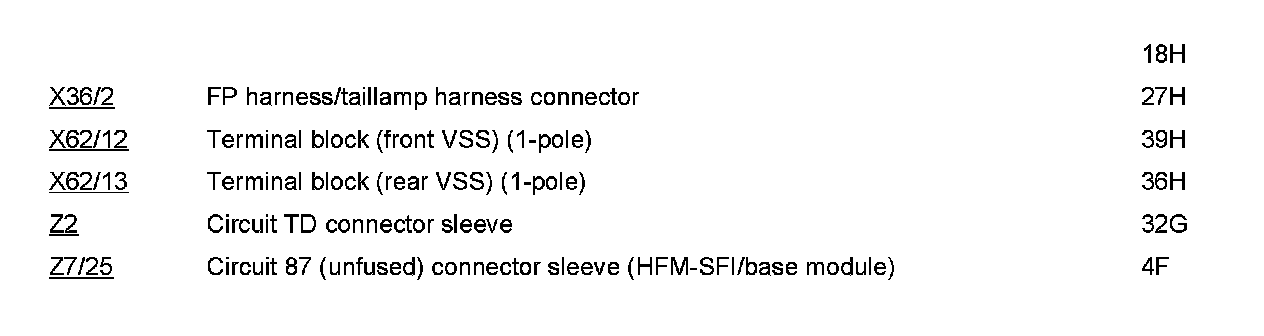

Component Description/Coordinates, X36/2 To Z7/25:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
