Rear Window Defroster PE67.29-U-2000WA (Up to 11/94)

Rear Window Defroster PE67.29-U-2000WA
- Up To 11/94

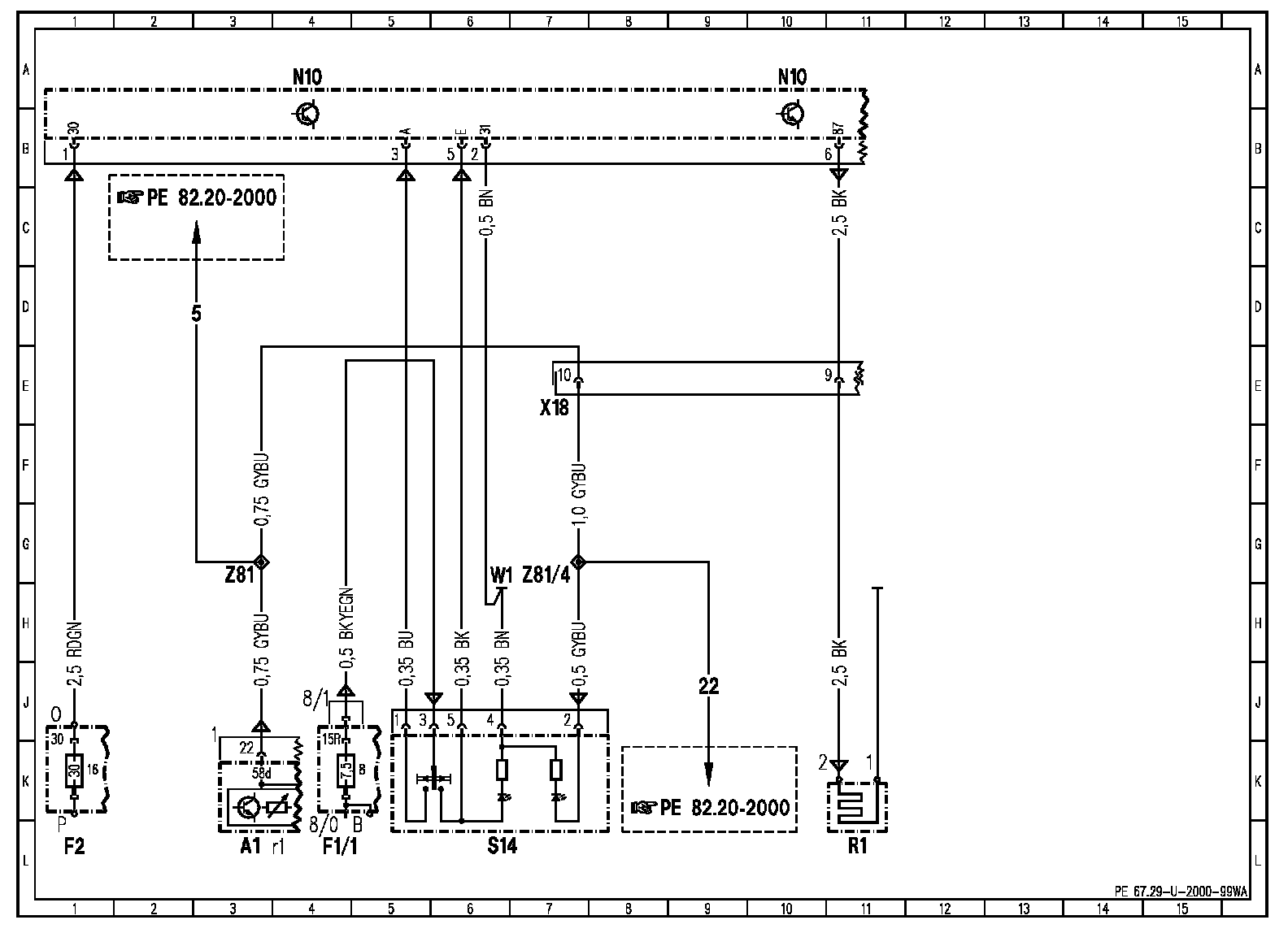

Wiring Diagram:

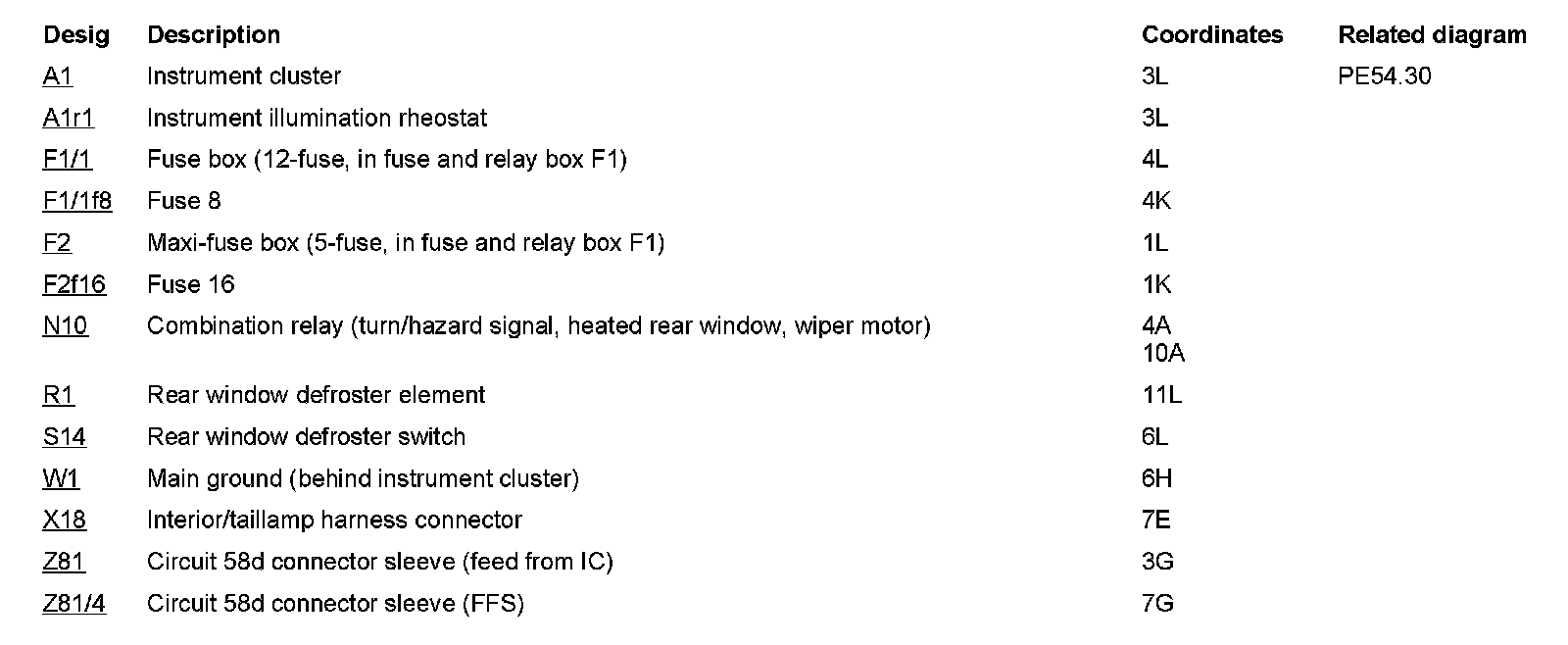

Component Description/Coordinates, A1 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
