Central Locking (CL) PE80.20-U-2000WB

Central Locking (CL) PE80.20-U-2000WB

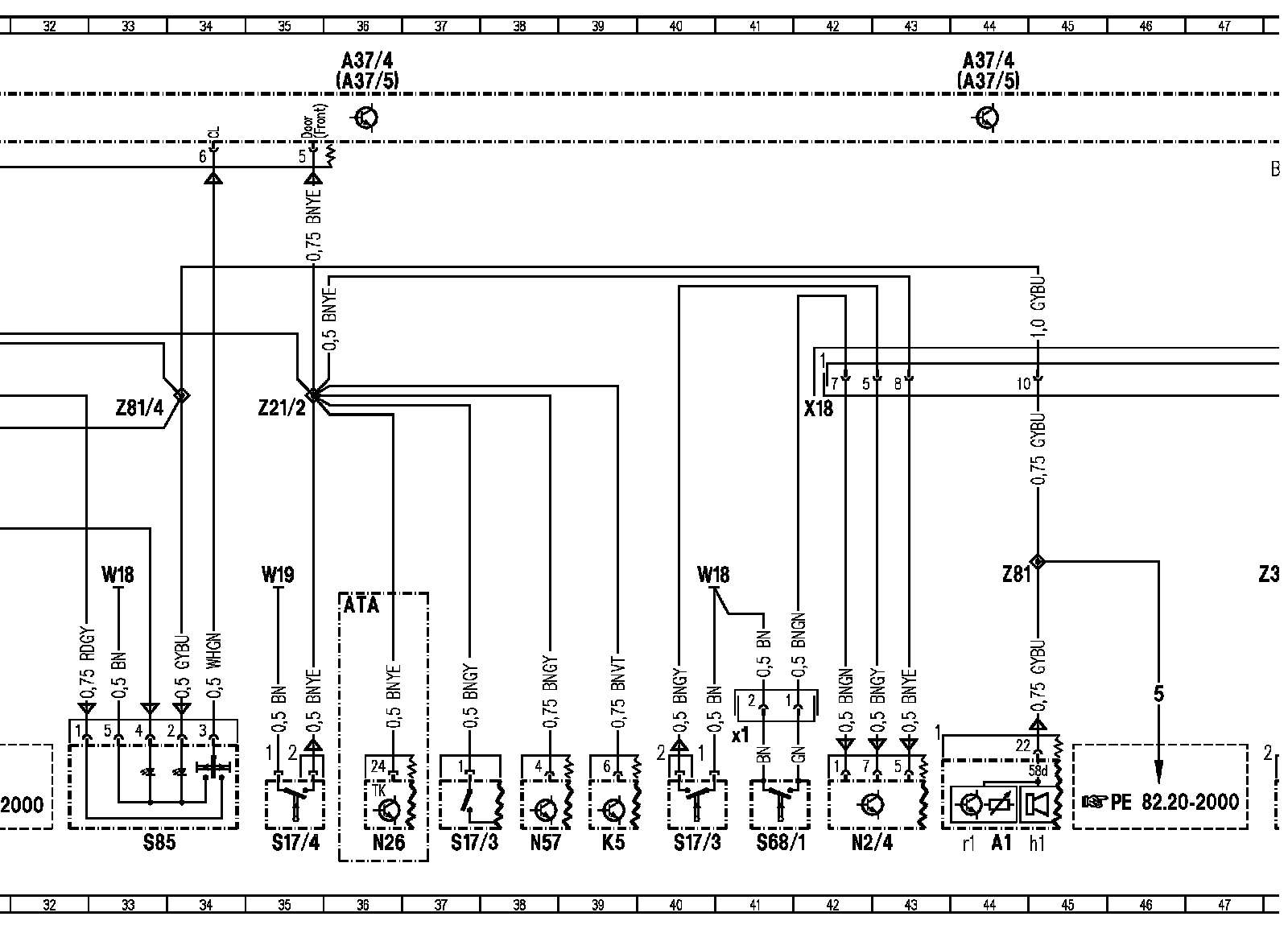

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

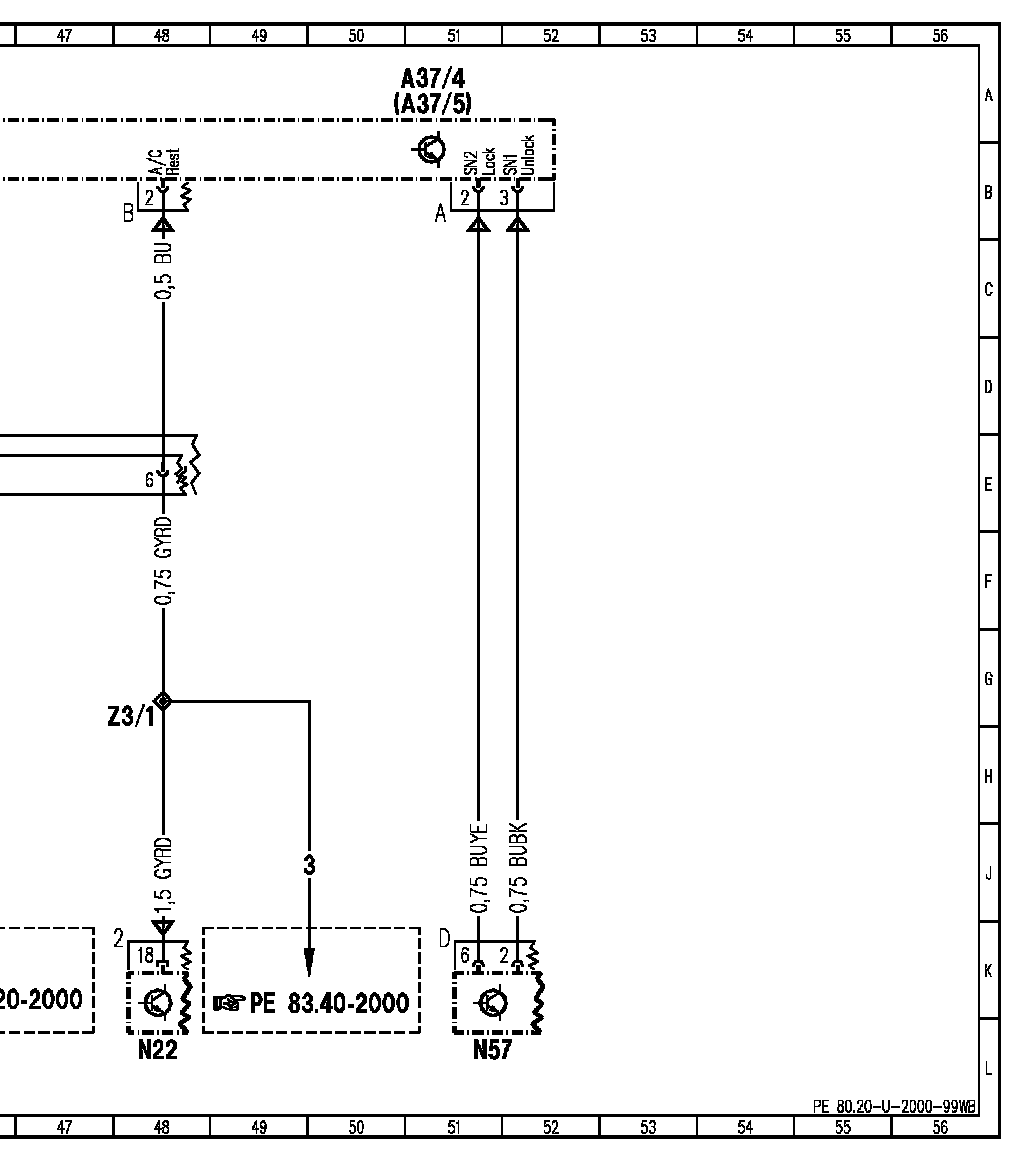

Wiring Diagram, Part 4:

Component Description/Coordinates, A1 To N26:

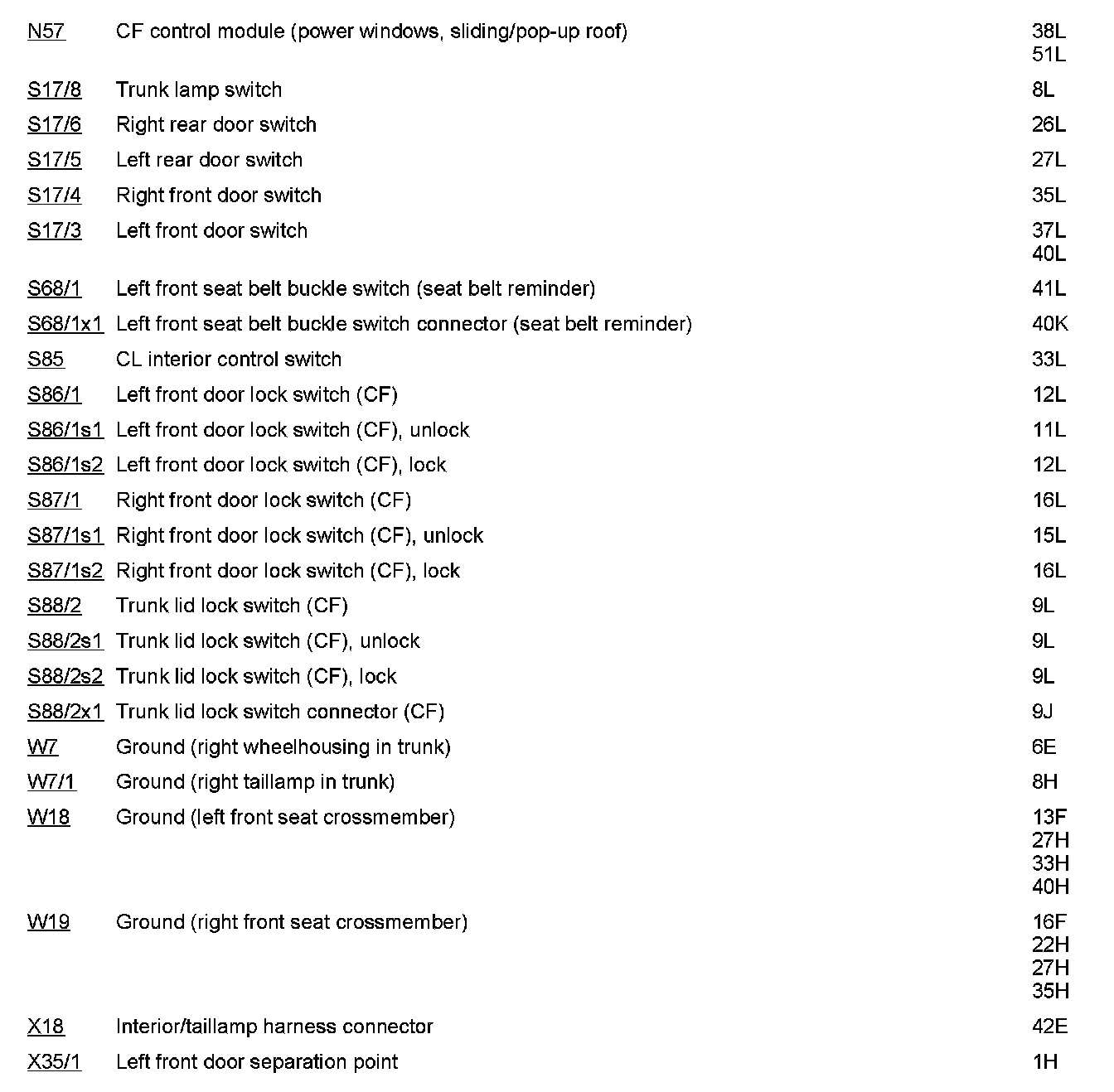

Component Description/Coordinates, N57 To X35/1:

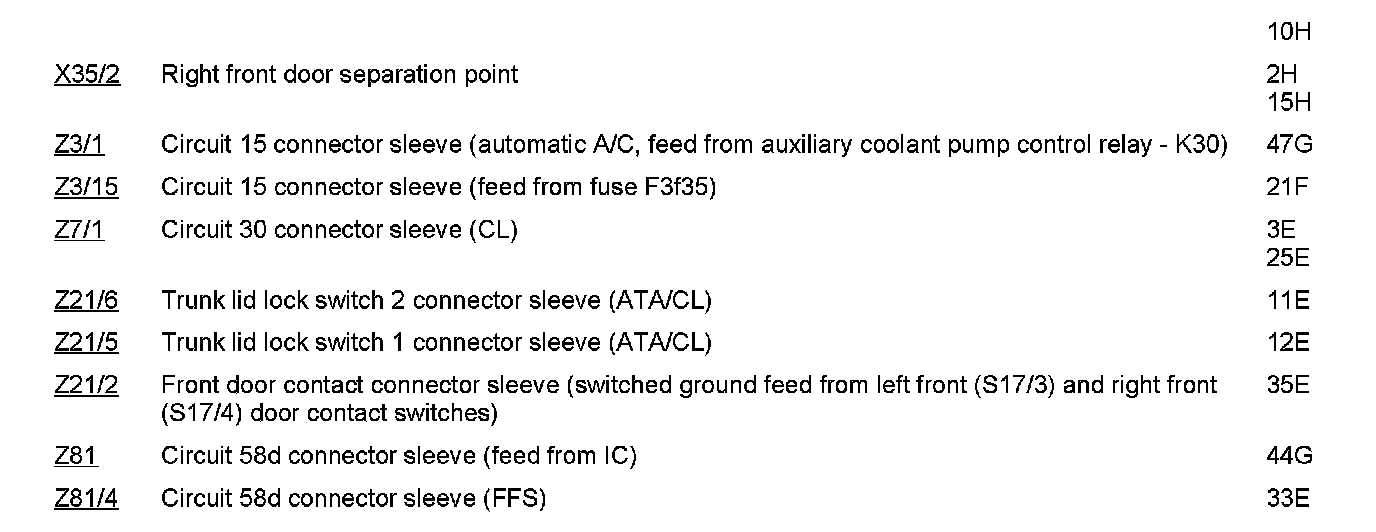

Component Description/Coordinates, X35/2 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
