System Diagram

Starter, Generator PE15.00-U-2000WA

Wiring Diagram, Part 1:

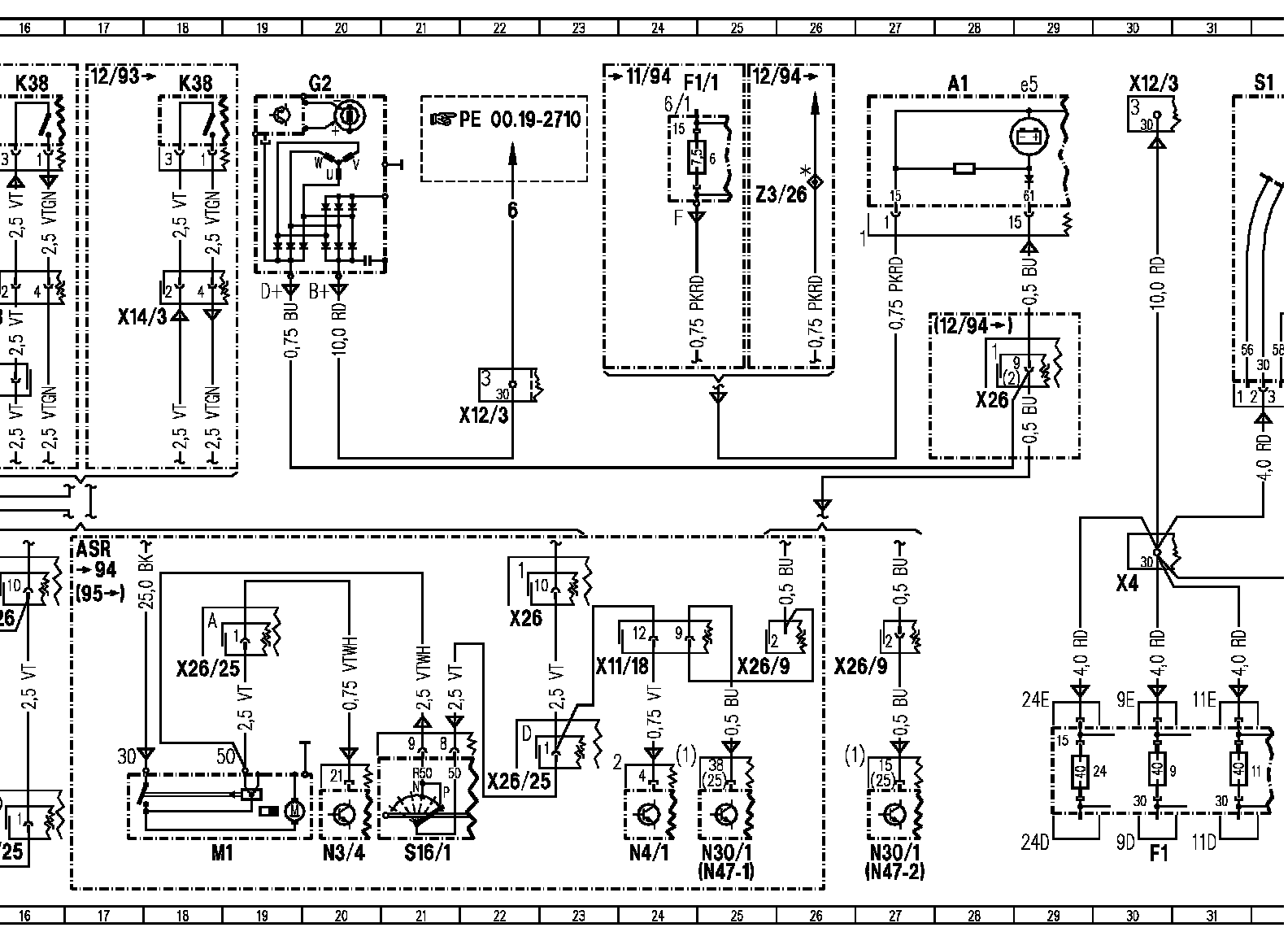

Wiring Diagram, Part 2:

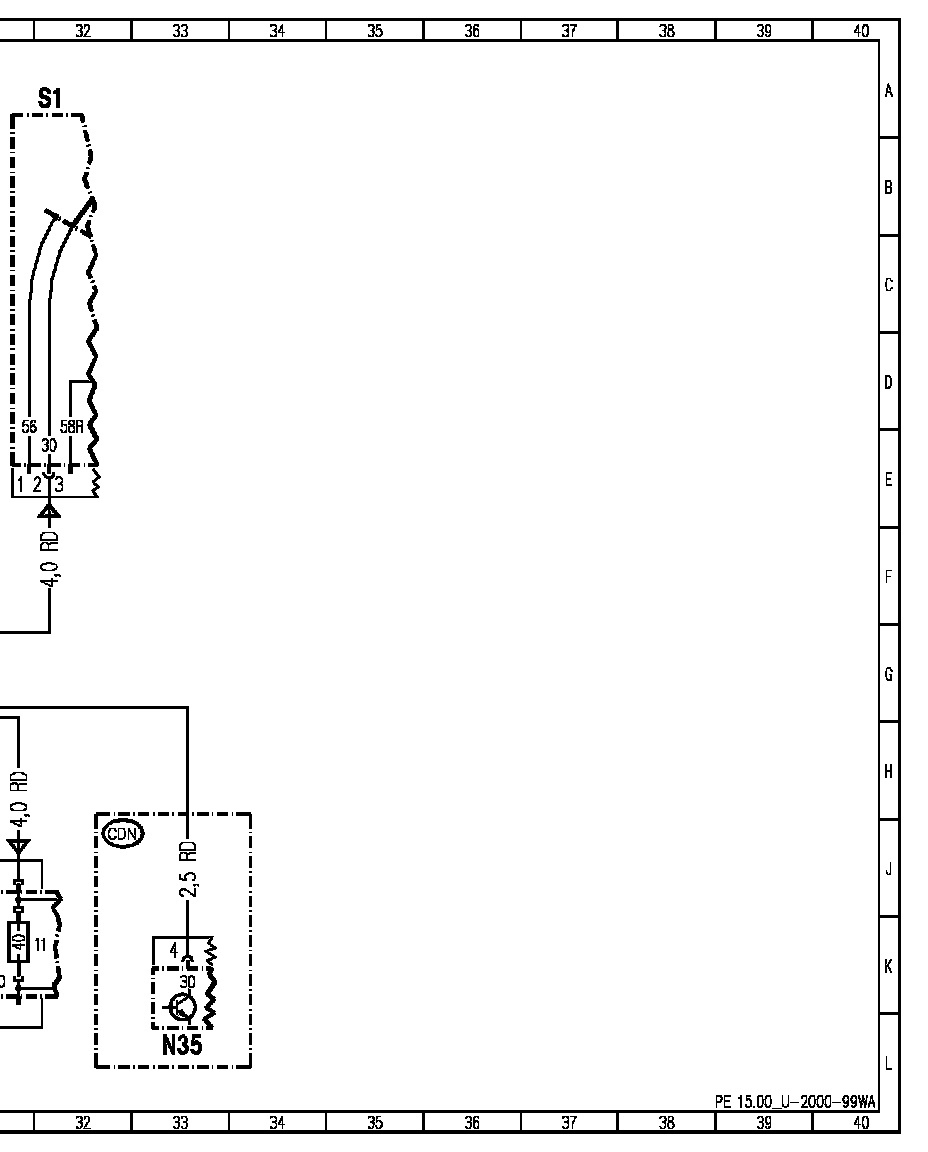

Wiring Diagram, Part 3:

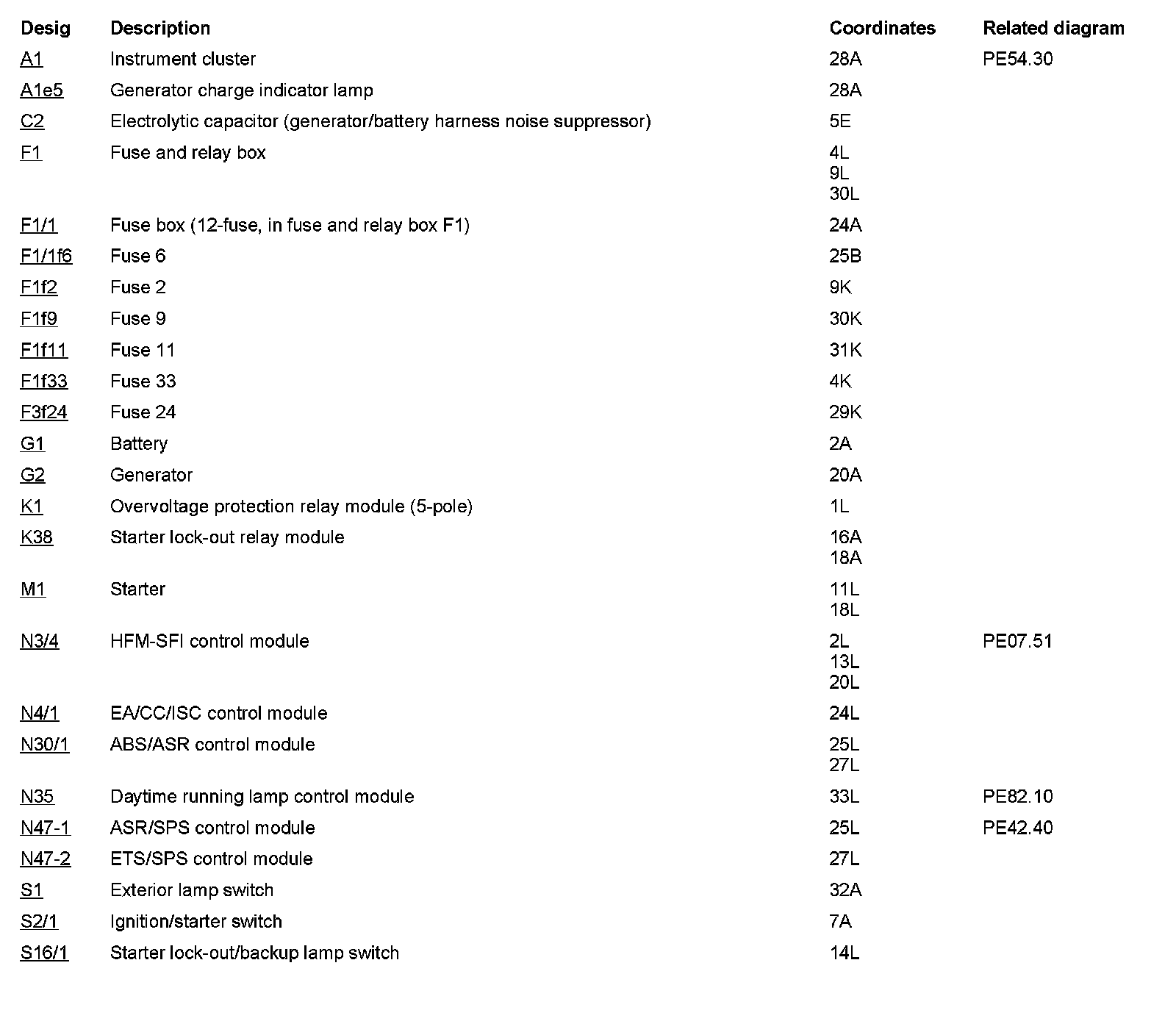

Component Description/Coordinates, A1 To S16/1:

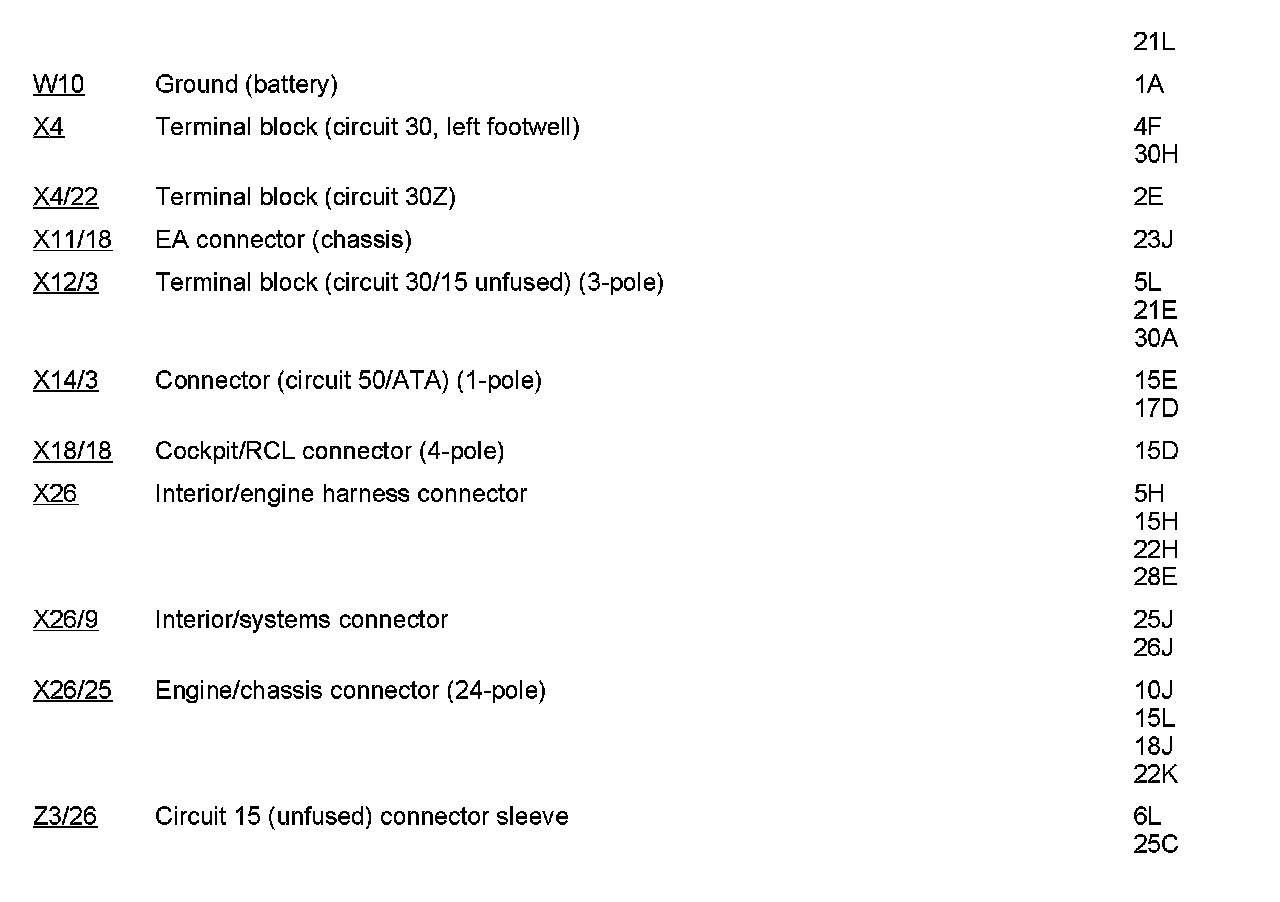

Component Description/Coordinates, W10 To Z3/26:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
