Air Conditioning (Automatic) PE83.40-U-2000WB (As of 12/94)

Air Conditioning (automatic) PE83.40-U-2000WB
- As of 12/94

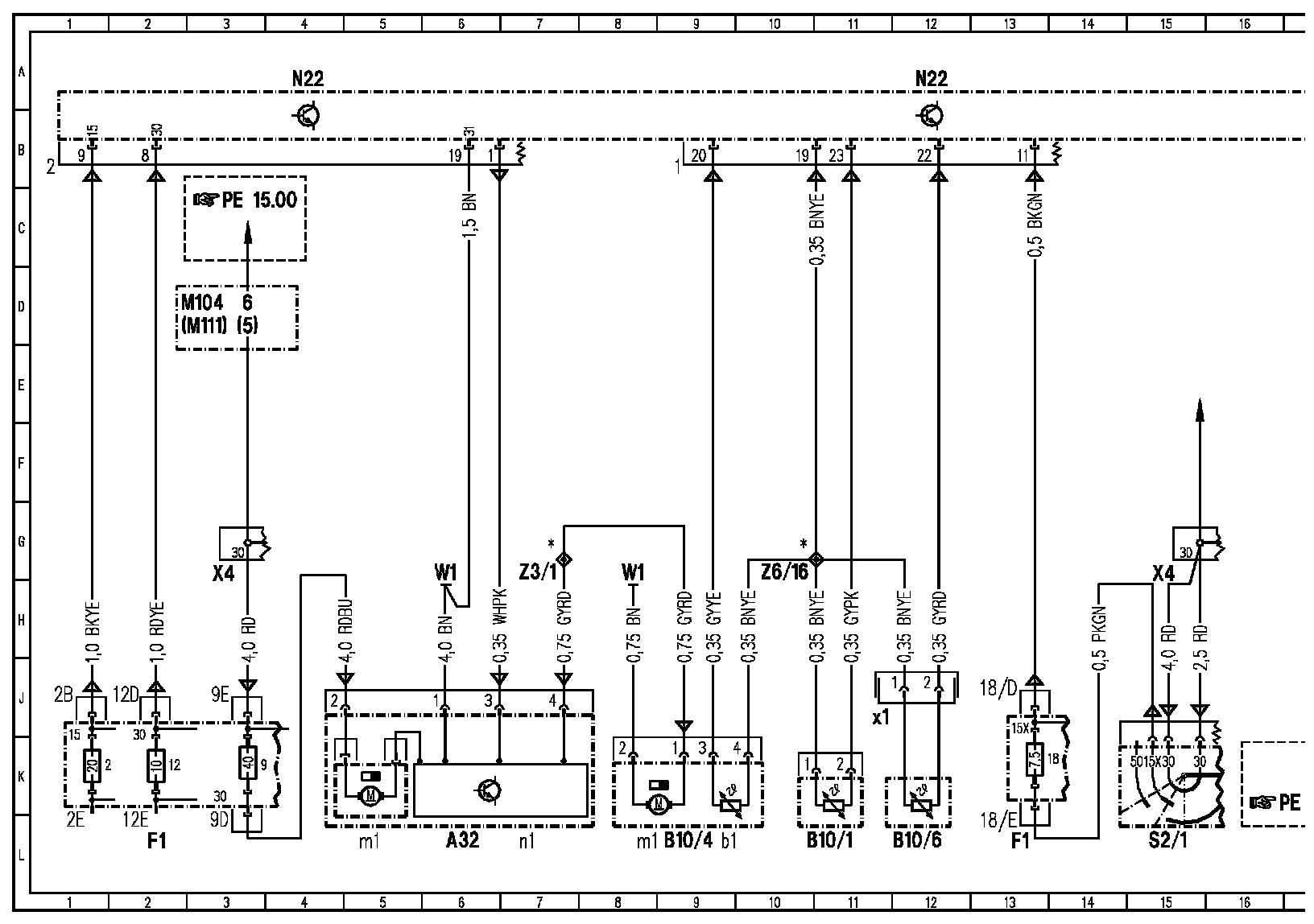

Wiring Diagram, Part 1:

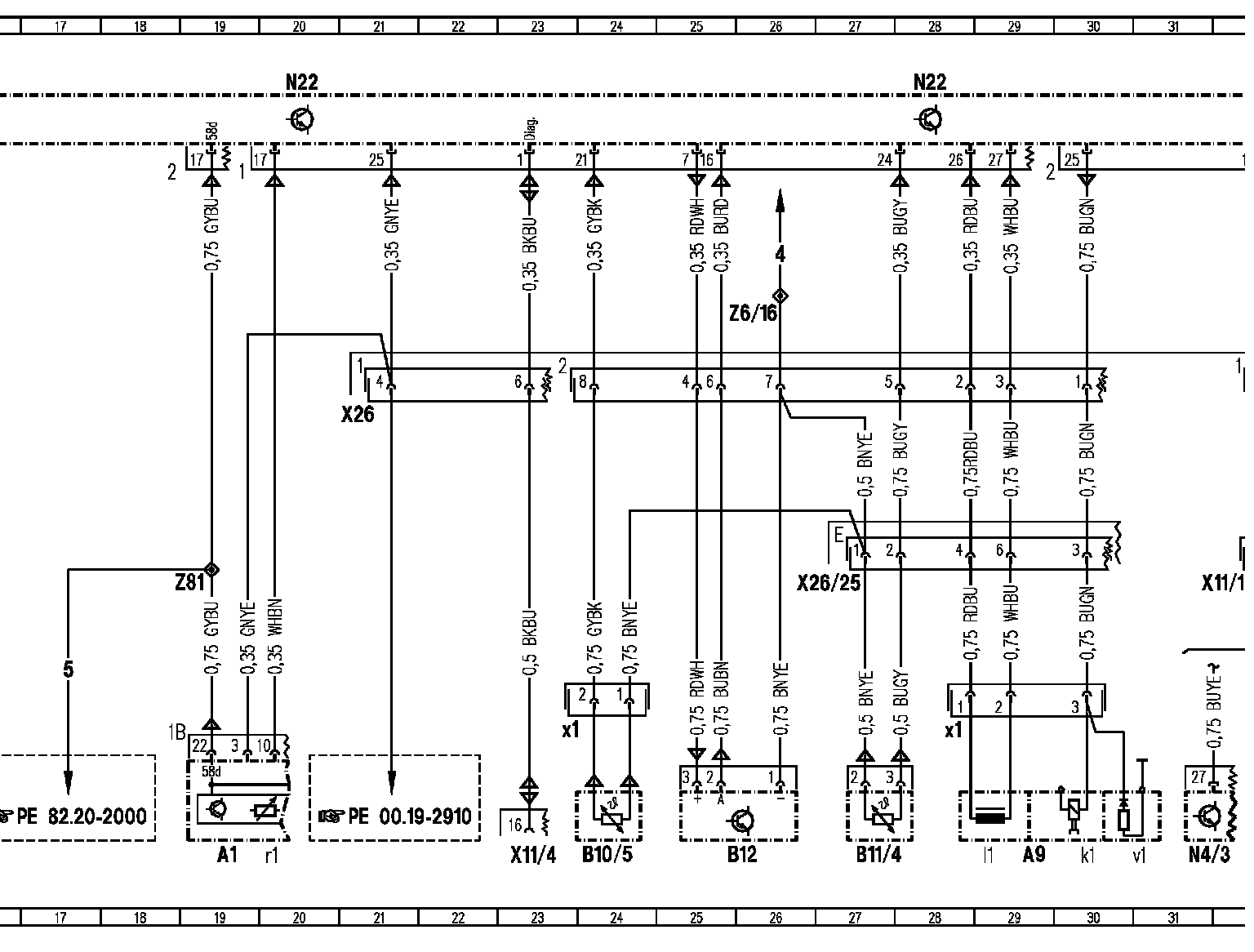

Wiring Diagram, Part 2:

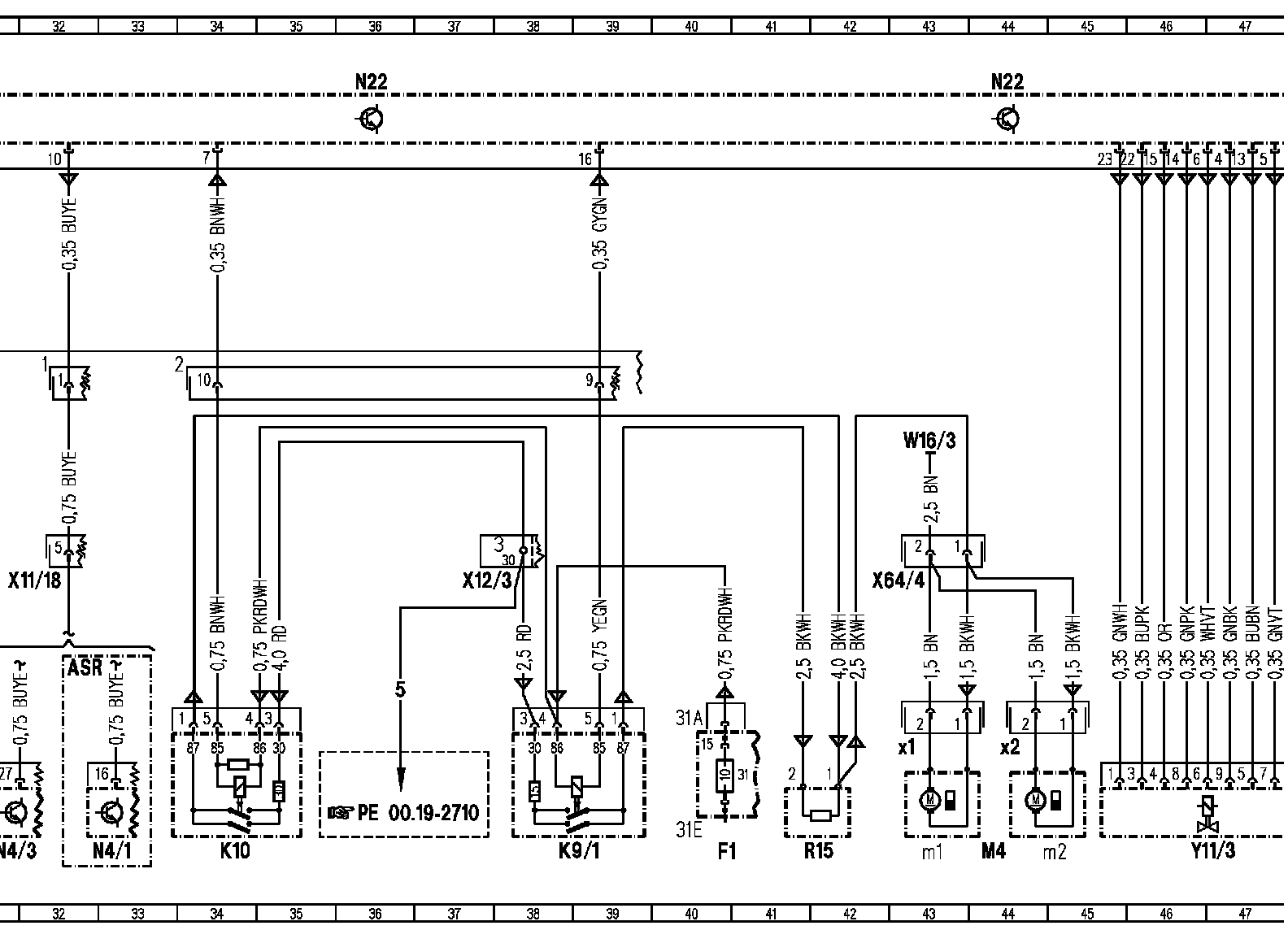

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

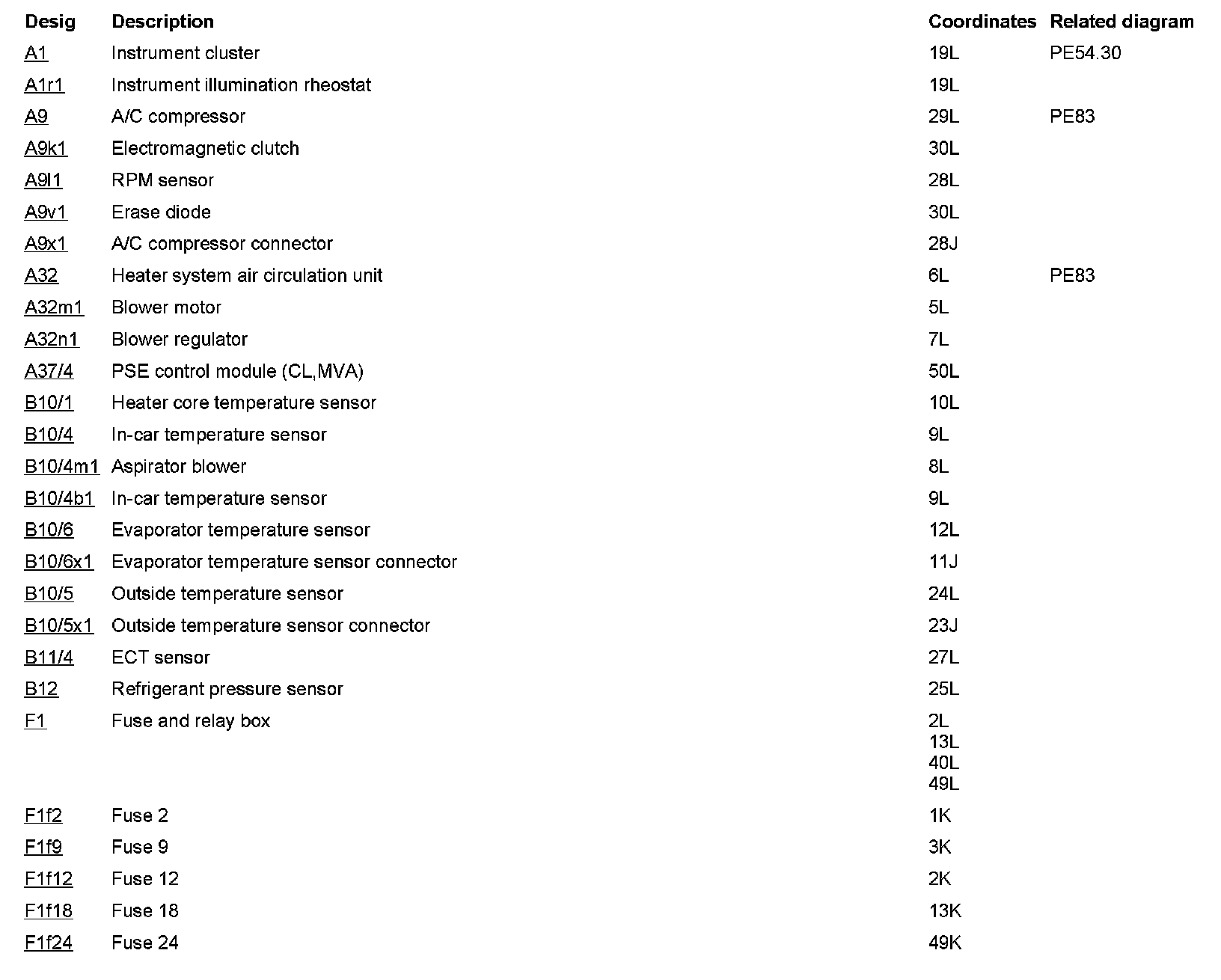

Component Description/Coordinates, A1 To F1f24:

Component Description/Coordinates, F1f31 To X64/4:

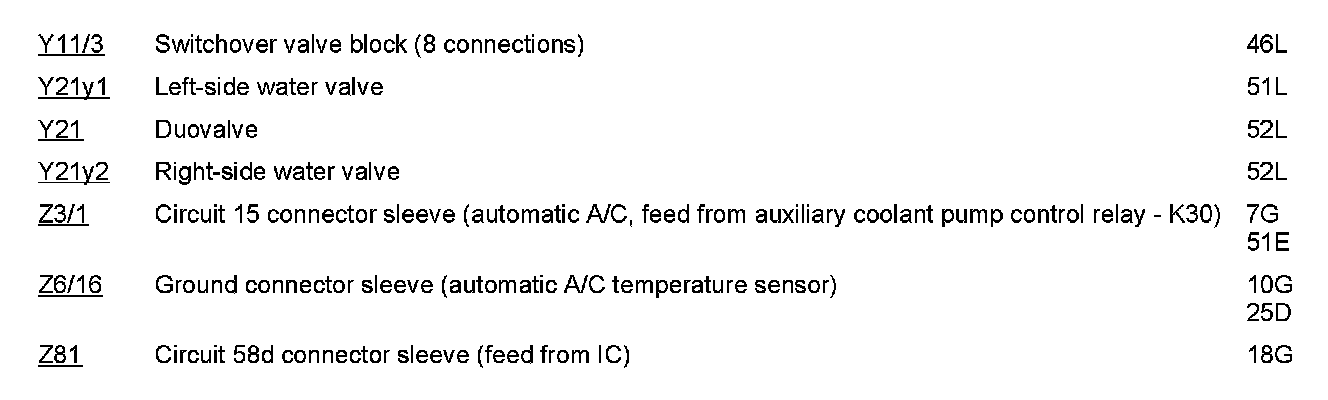

Component Description/Coordinates, Y11/3 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
