ETP - Test [23] - Step 16.0




Air Conditioning (A/C)

Models 202 (up to MY 1995)


Electrical Test Program (ETP)

Preliminary Information
Component Locations ETP - Component Locations [21]
Preparation for Test ETP - Preparation For Test [22]
Figures ETP - Figures [23]

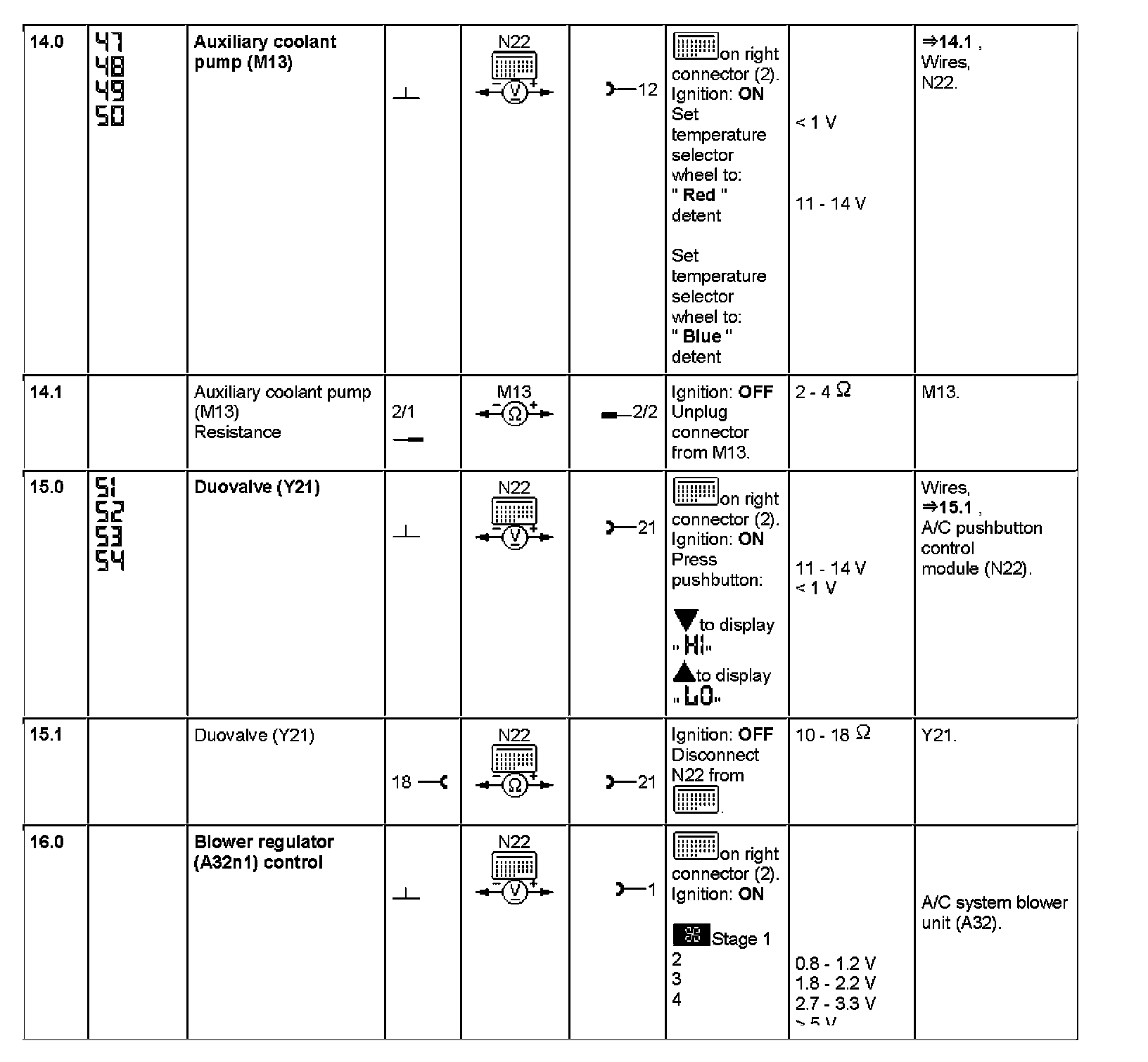

Test Steps 14.0 - 16.0:
