Instrument Cluster (CLUS) PE54.30-U-2000WB (As of 12/94)

Instrument Cluster (CLUS)/display Instruments/warning Devices PE54.30-U-2000WB
- As of 12/94

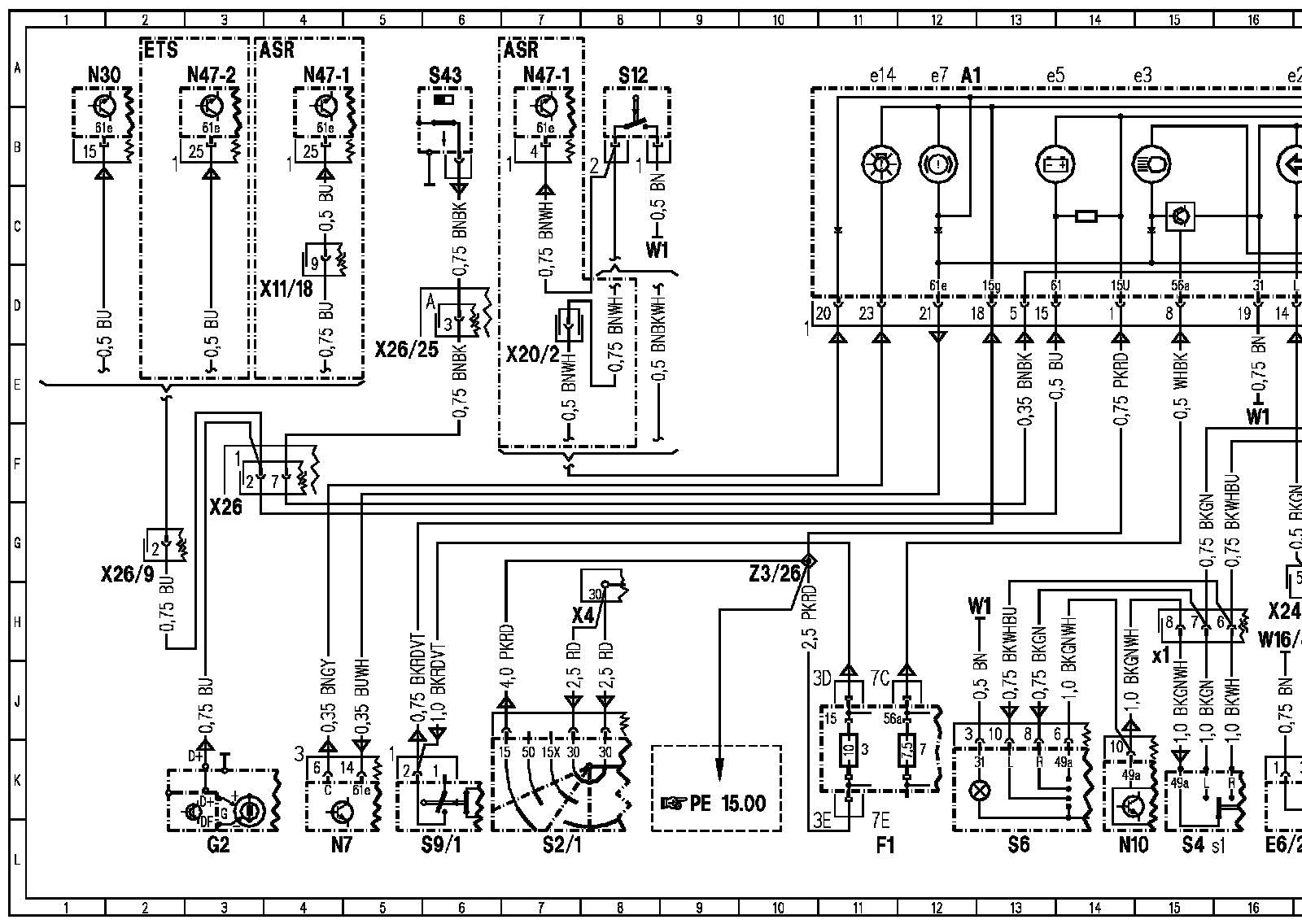

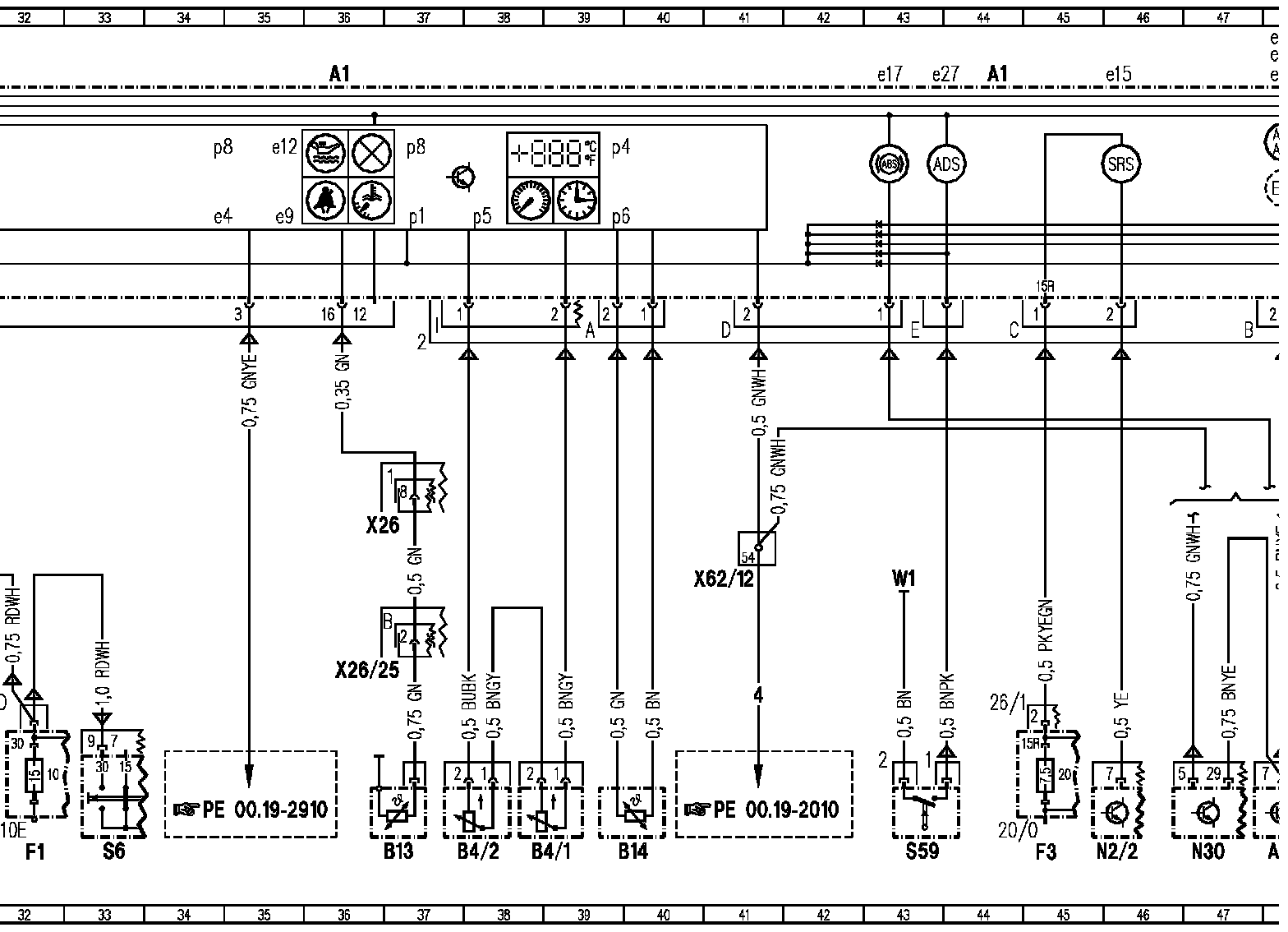

Wiring Diagram, Part 1:

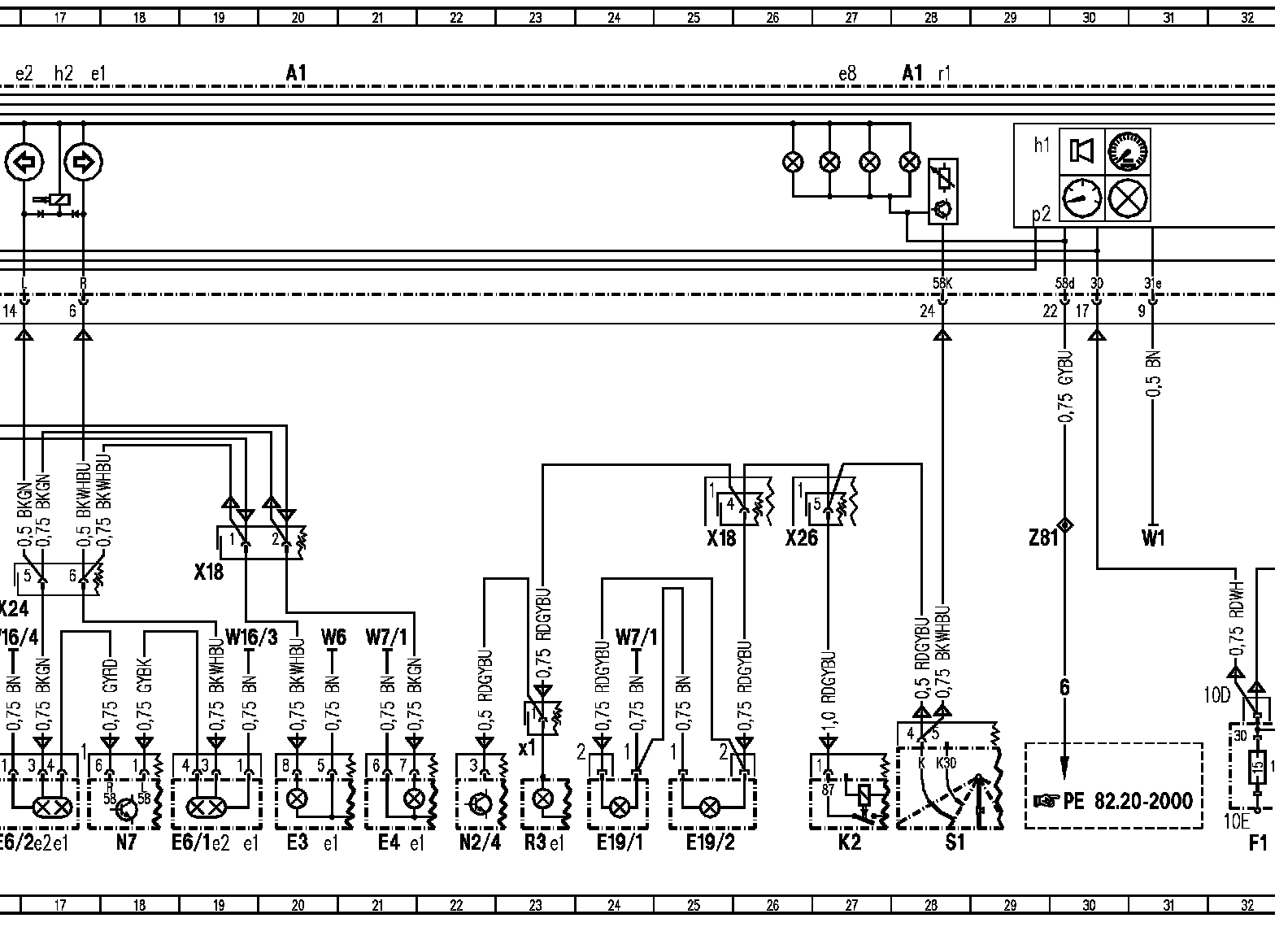

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

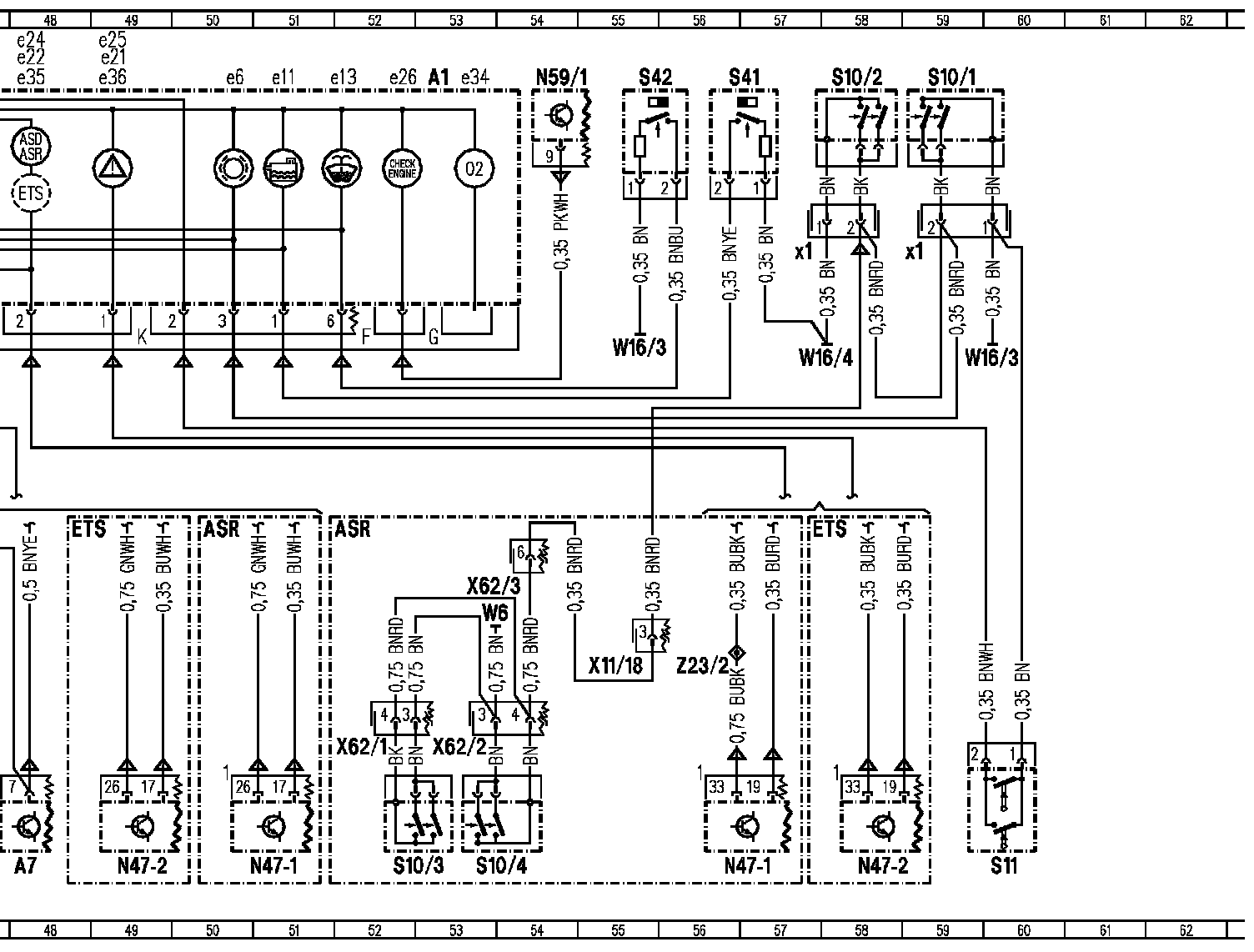

Wiring Diagram, Part 5:

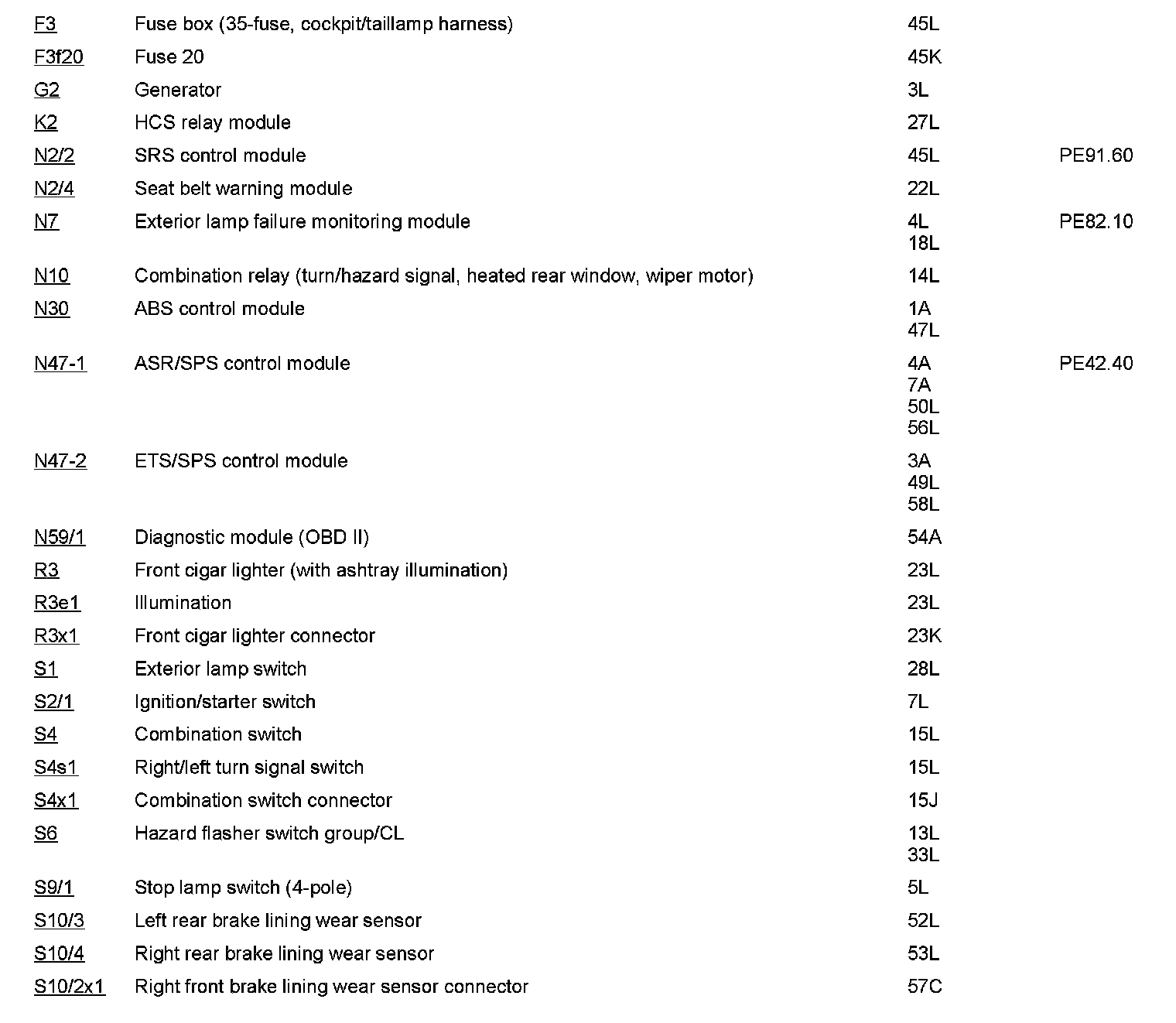

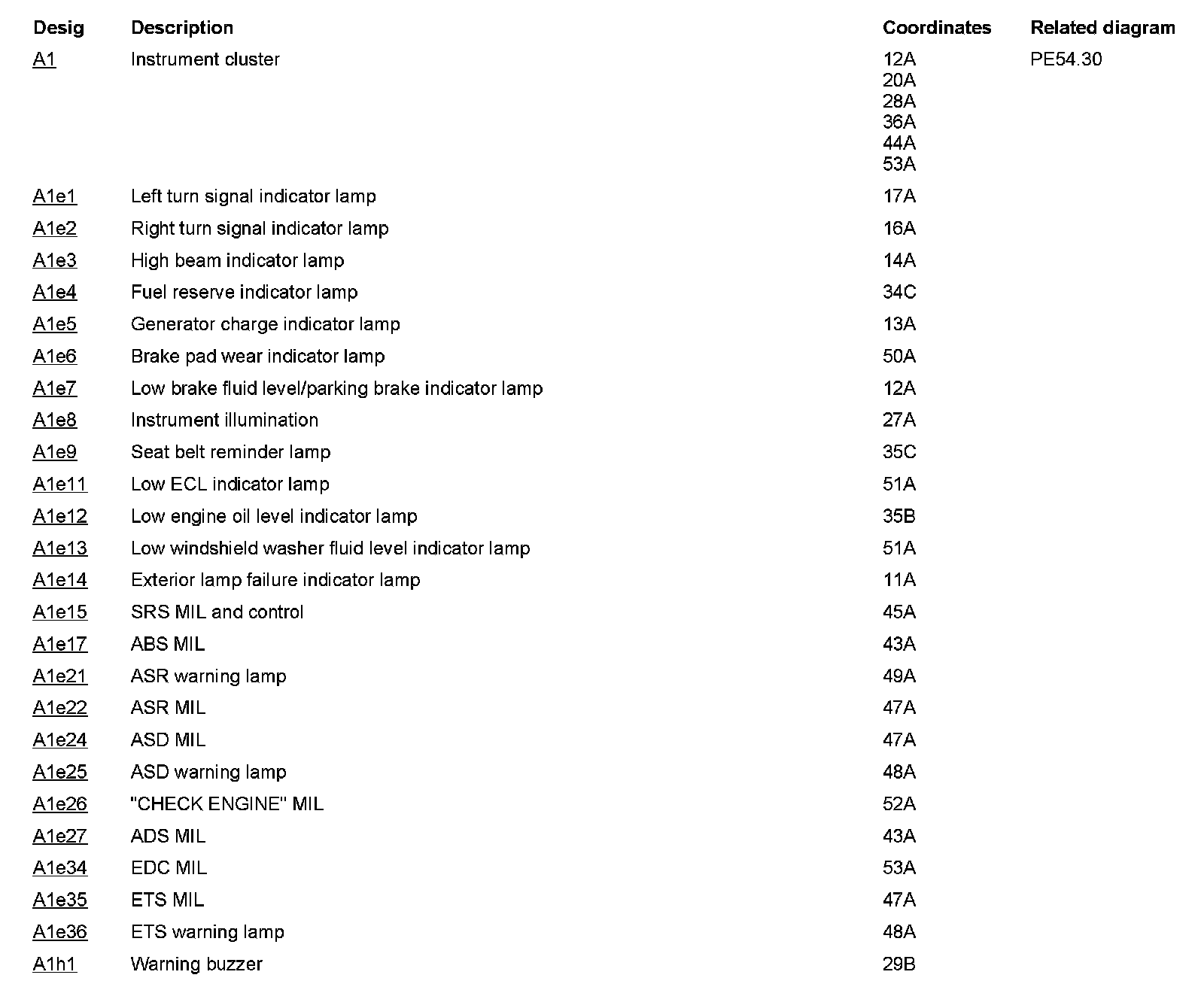

Component Description/Coordinates, A1 To A1h1:

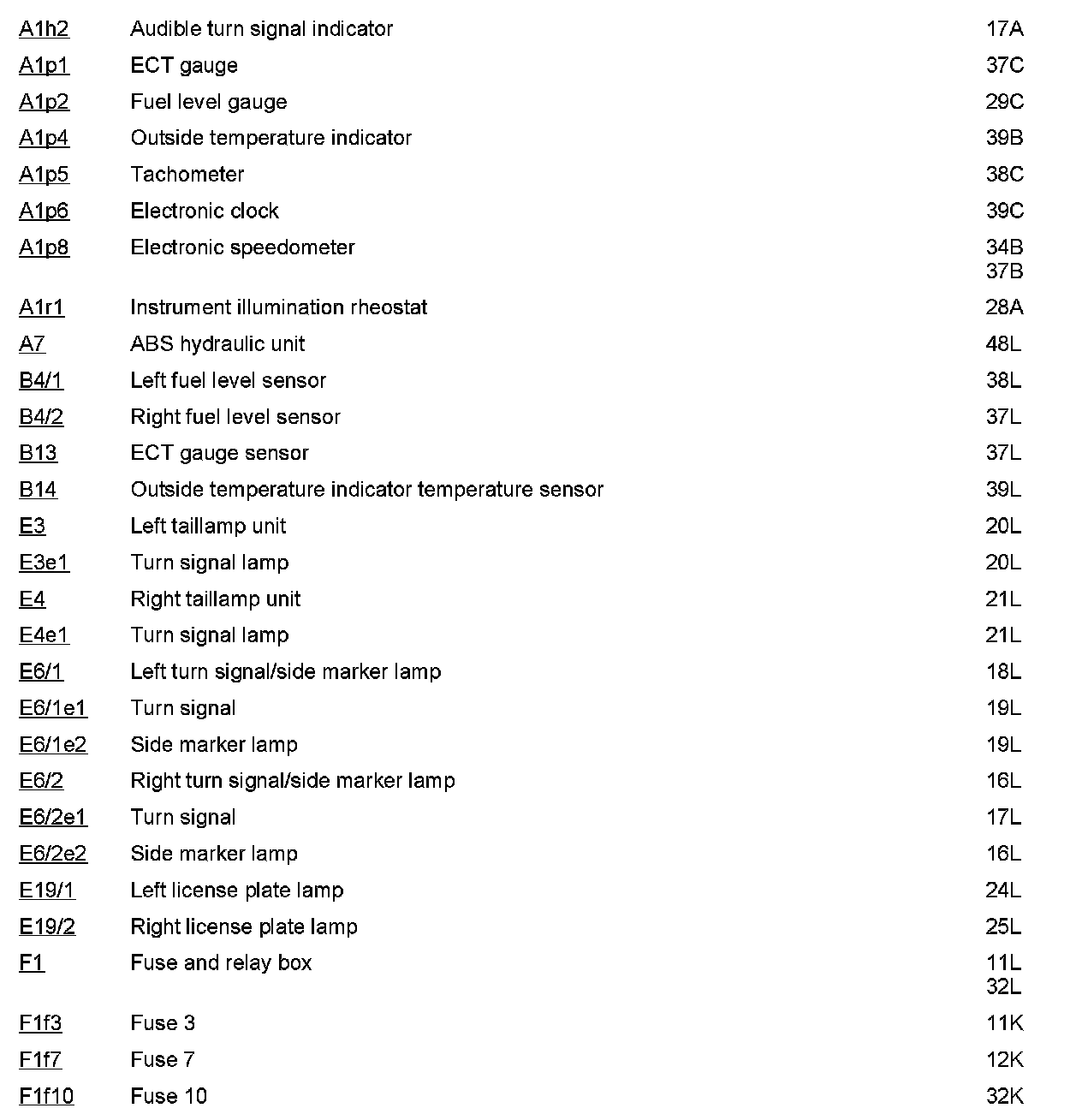

Component Description/Coordinates, A1h2 To F1f10:

Component Description/Coordinates, F3 To S10/2x1:

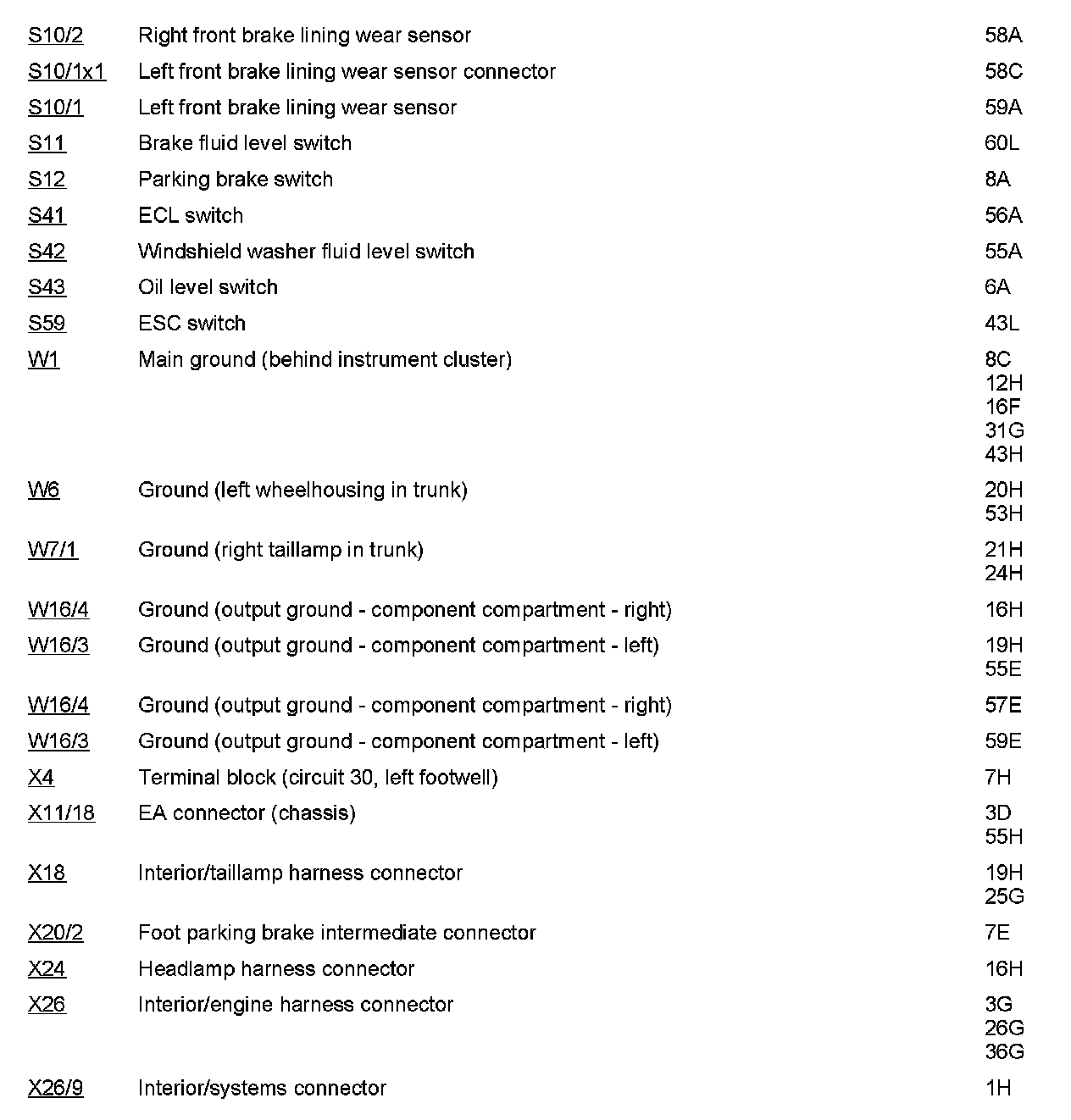

Component Description/Coordinates, S10/2 To X26/9:

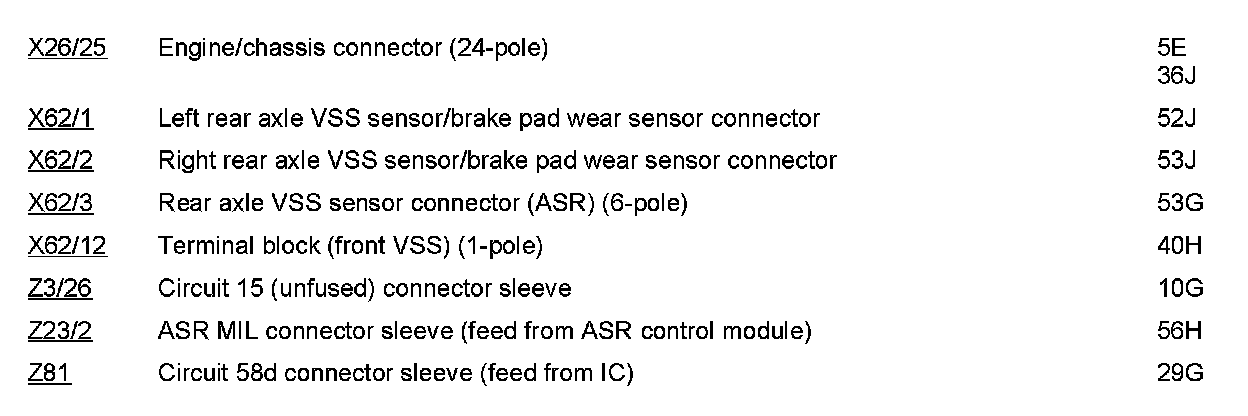

Component Description/Coordinates, X26/25 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
