Daytime Dipped Headlight PE82.10-U-2100WB

Daytime Dipped Headlight PE82.10-U-2100WB

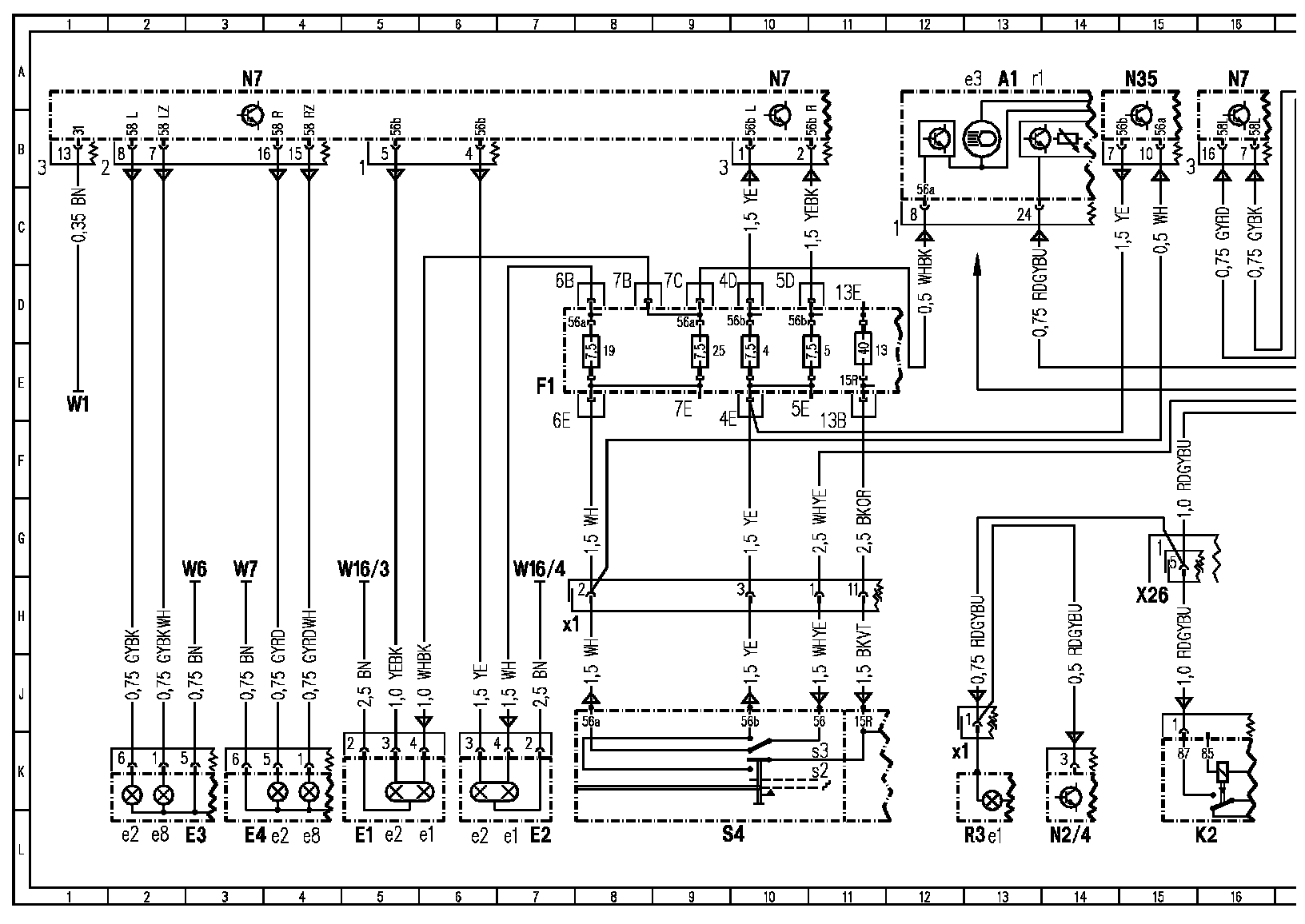

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

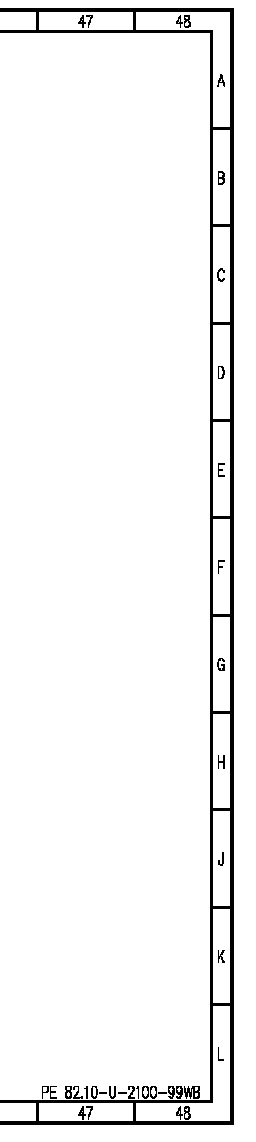

Wiring Diagram, Part 4:

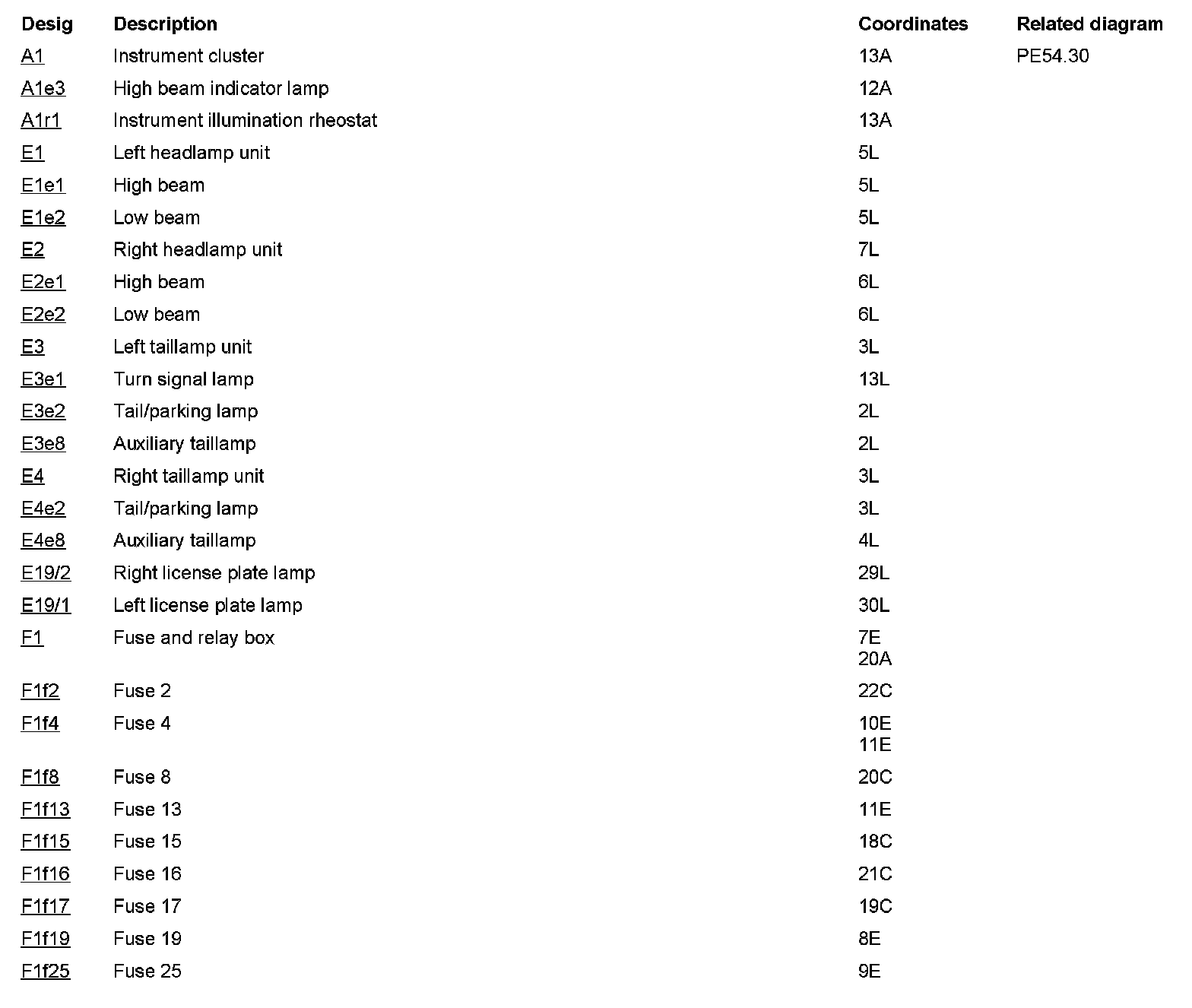

Component Description/Coordinates, A1 To F1f25:

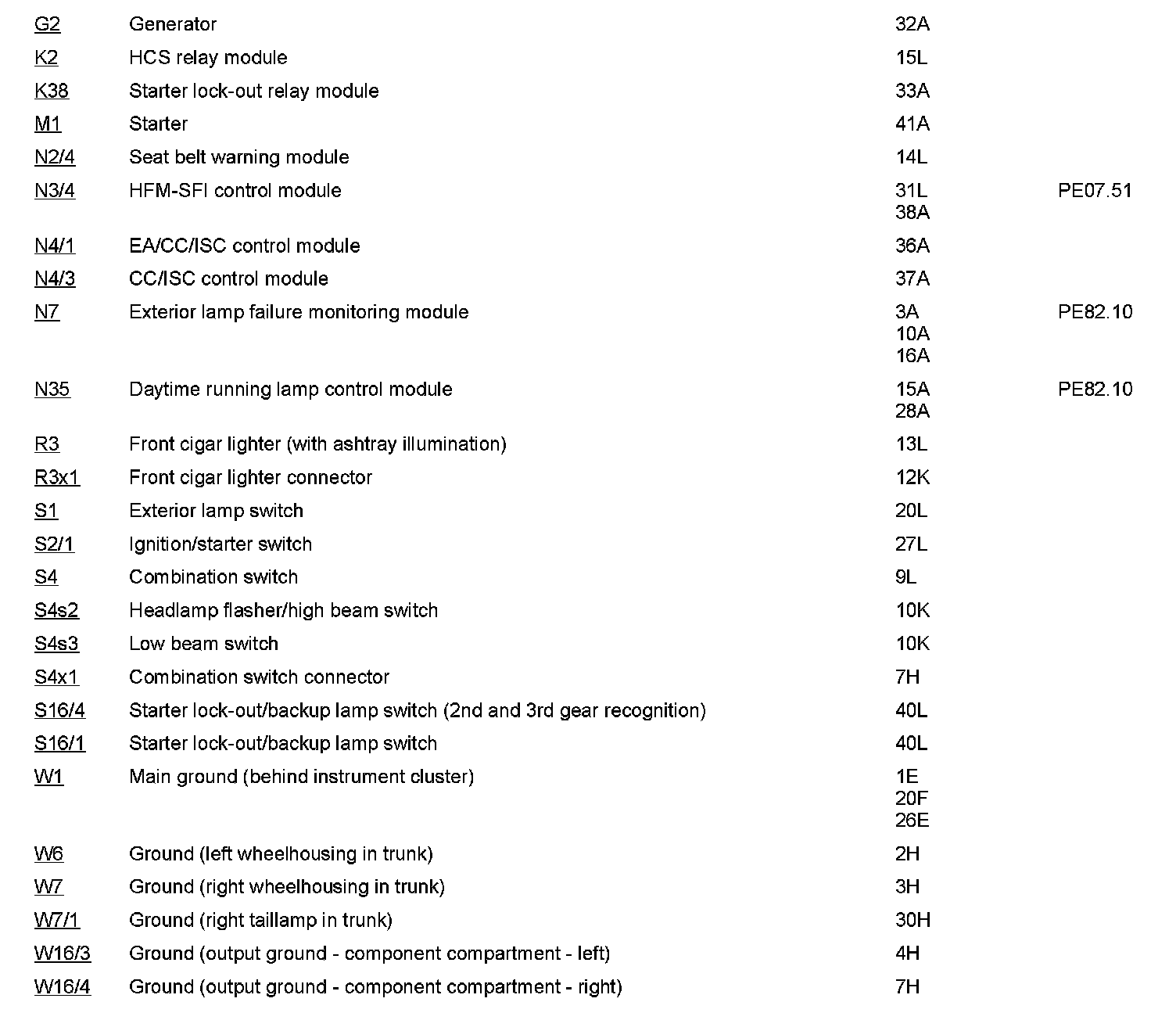

Component Description/Coordinates, G2 To W16/4:

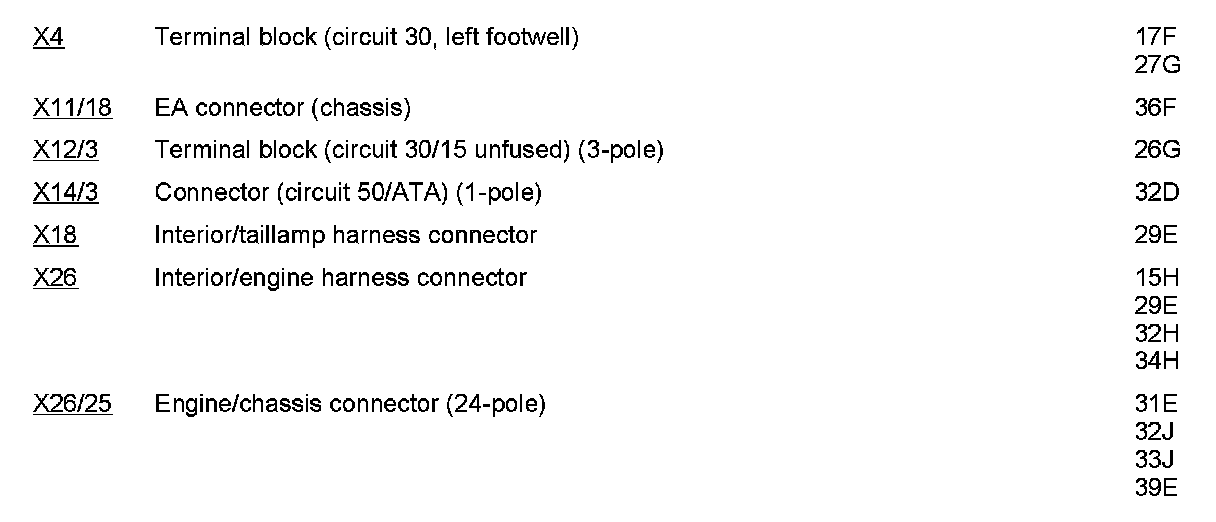

Component Description/Coordinates, X4 To X26/25:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
