Exterior Lights PE82.10-U-2000WB

Exterior Lights PE82.10-U-2000WB

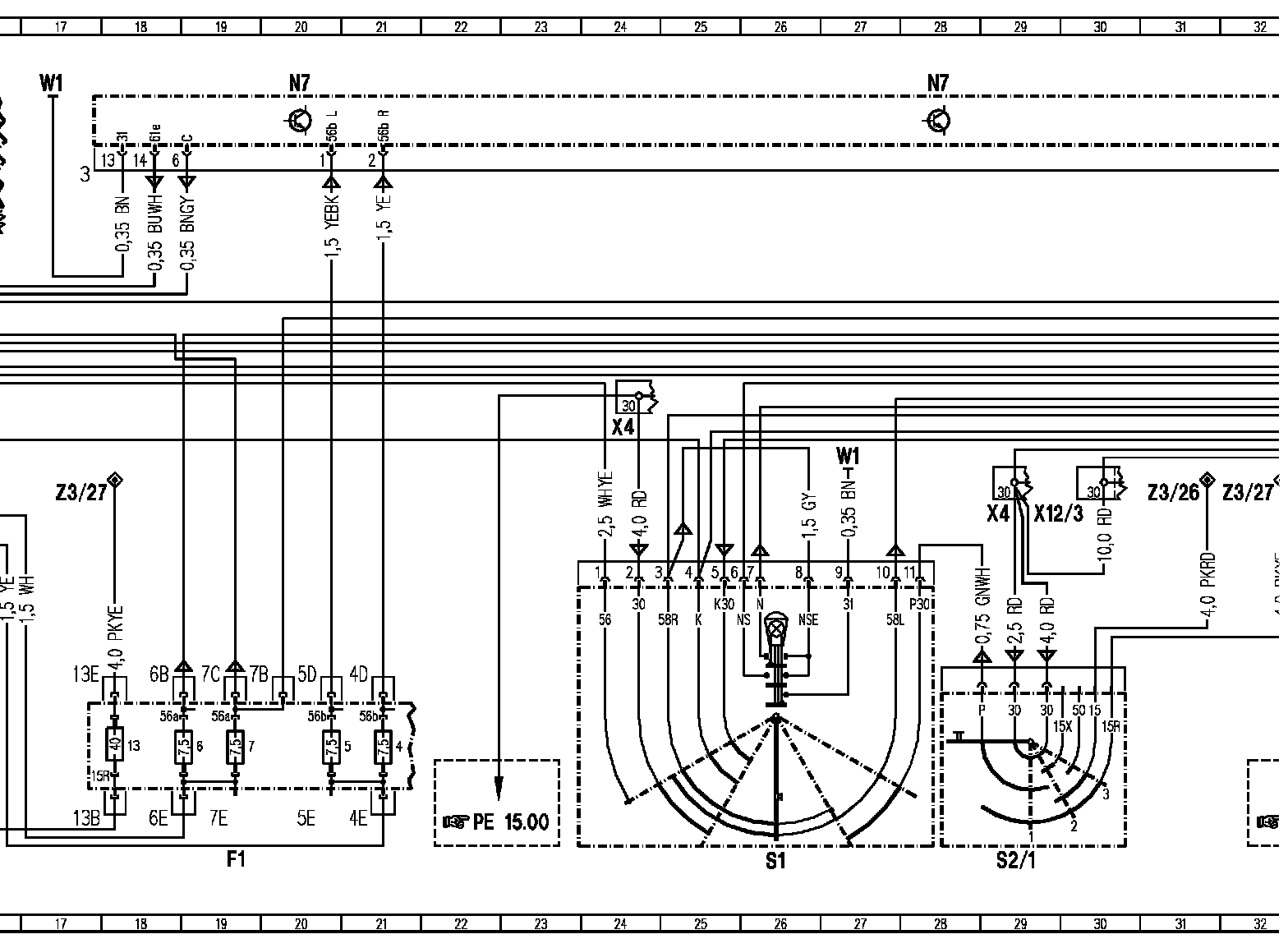

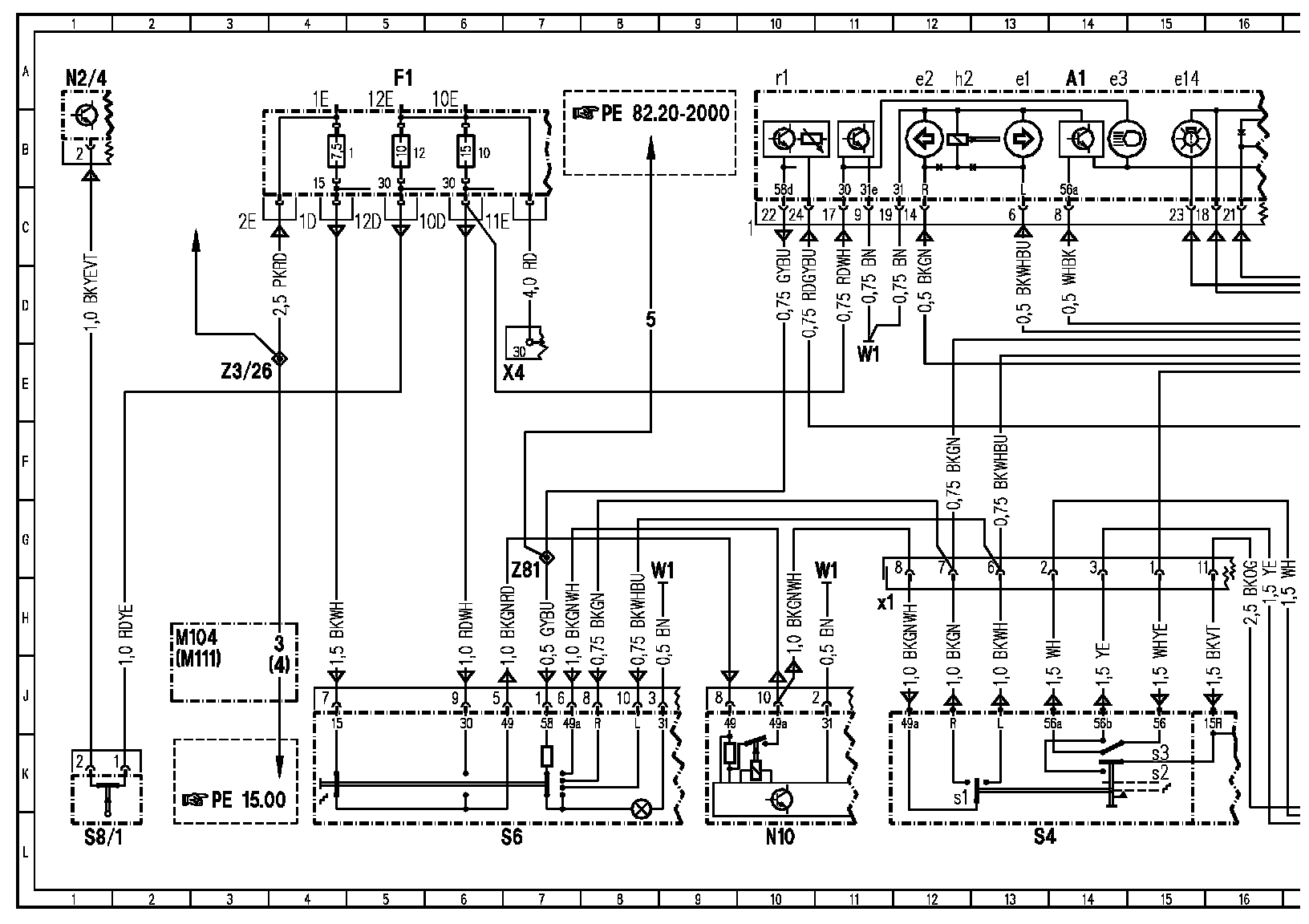

Wiring Diagram, Part 1:

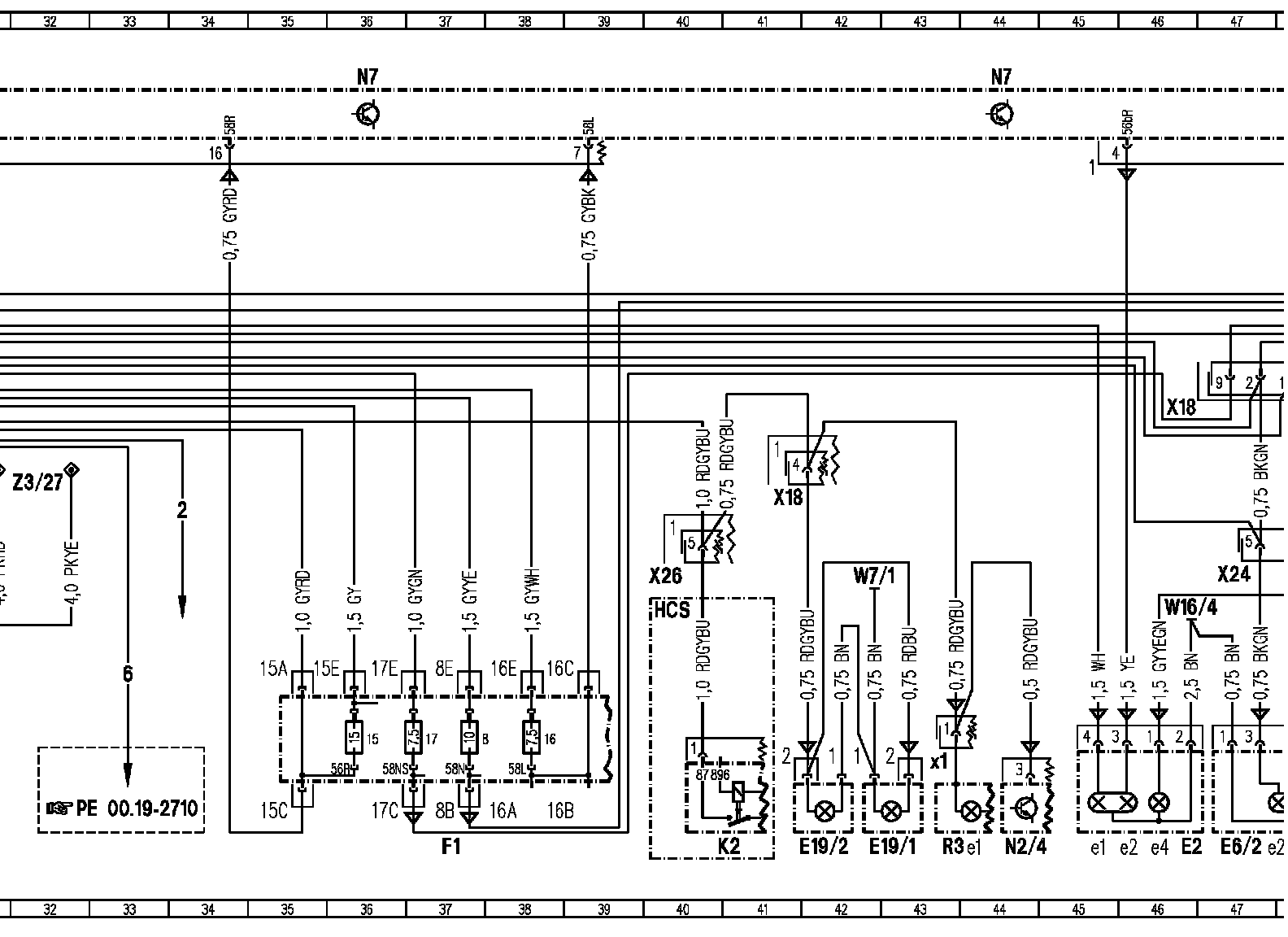

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

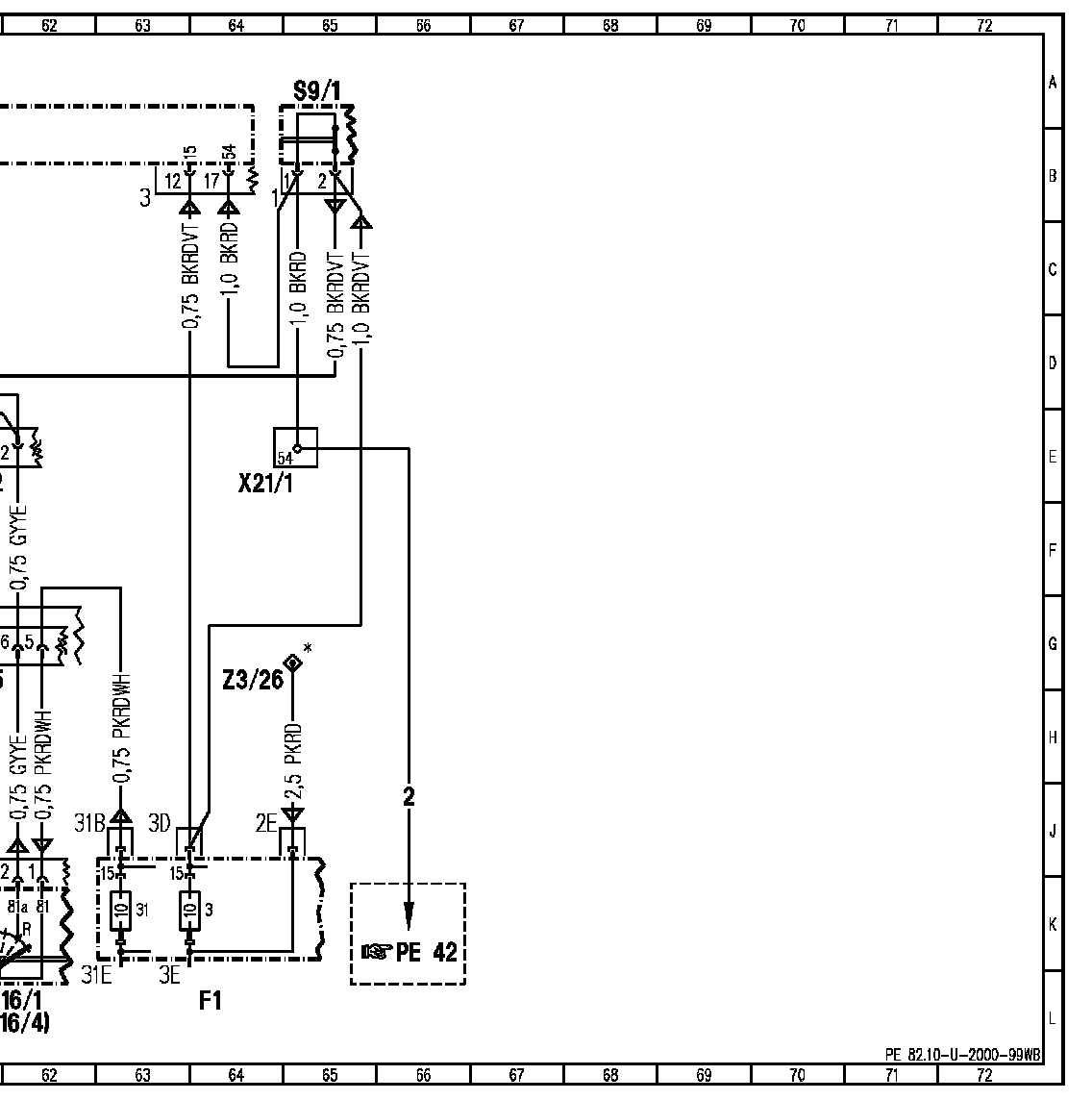

Wiring Diagram, Part 5:

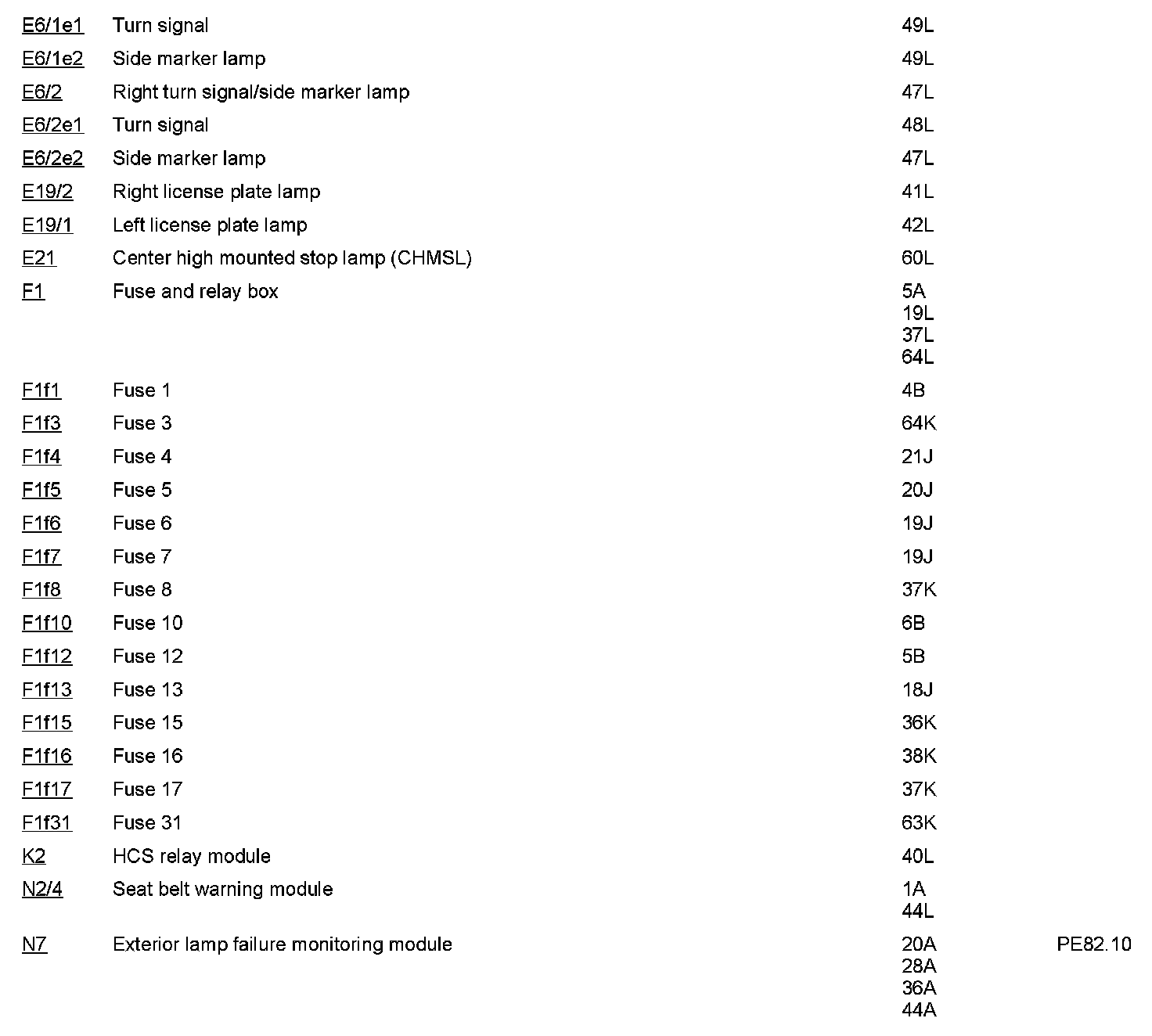

Component Description/Coordinates, A1 To E6/1:

Component Description/Coordinates, E6/1e1 To N7:

Component Description/Coordinates, N10 To X4:

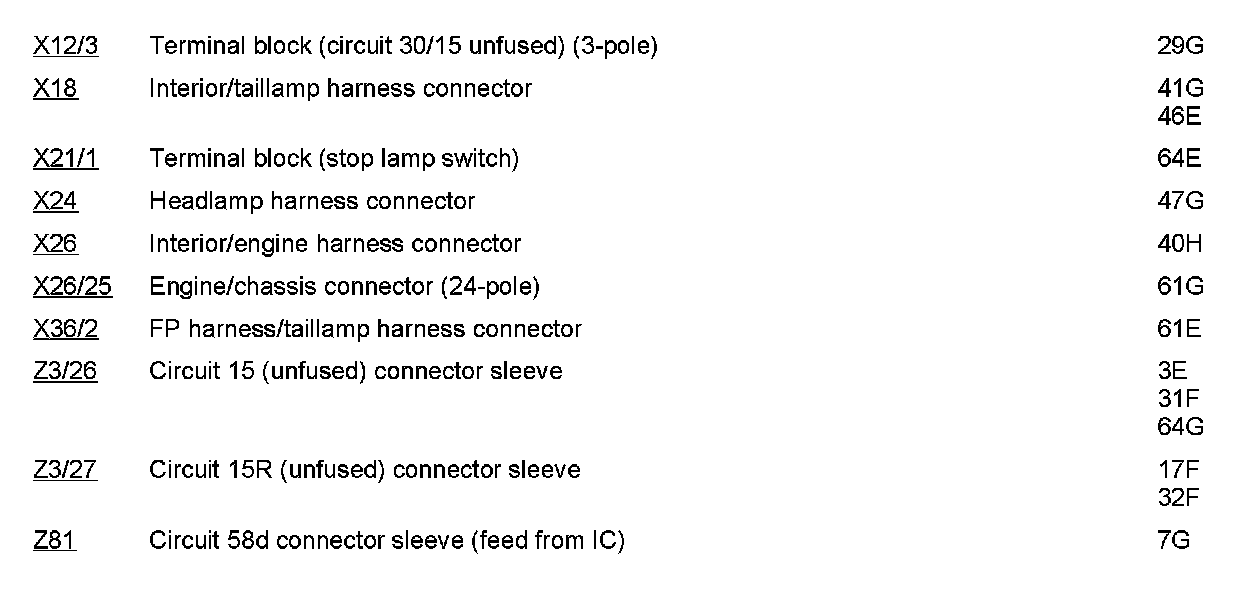

Component Description/Coordinates, X12/3 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
