HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000WA

HFM-SFI Fuel Injection/ignition System PE07.51-U-2000WA
- Interior compartment

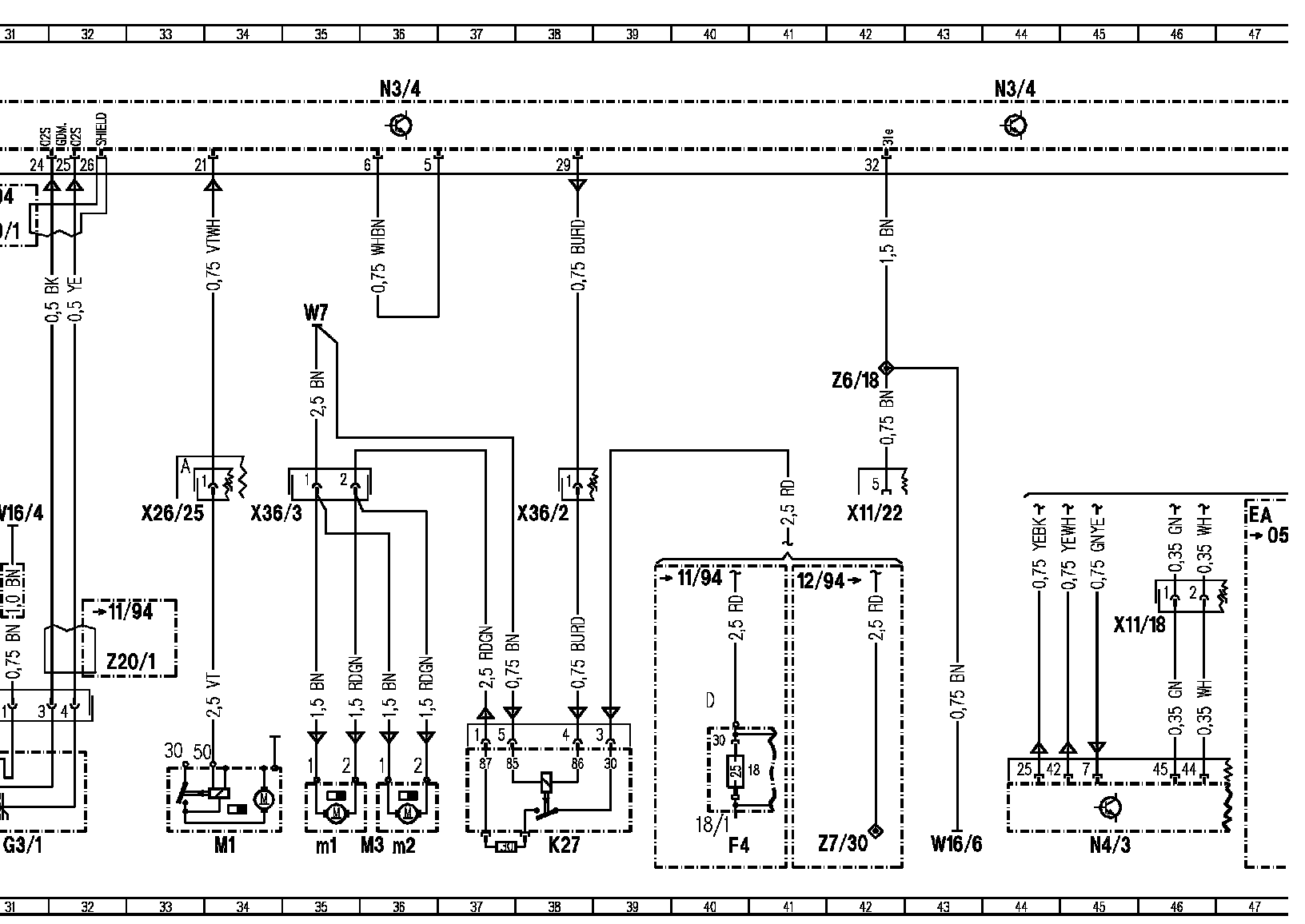

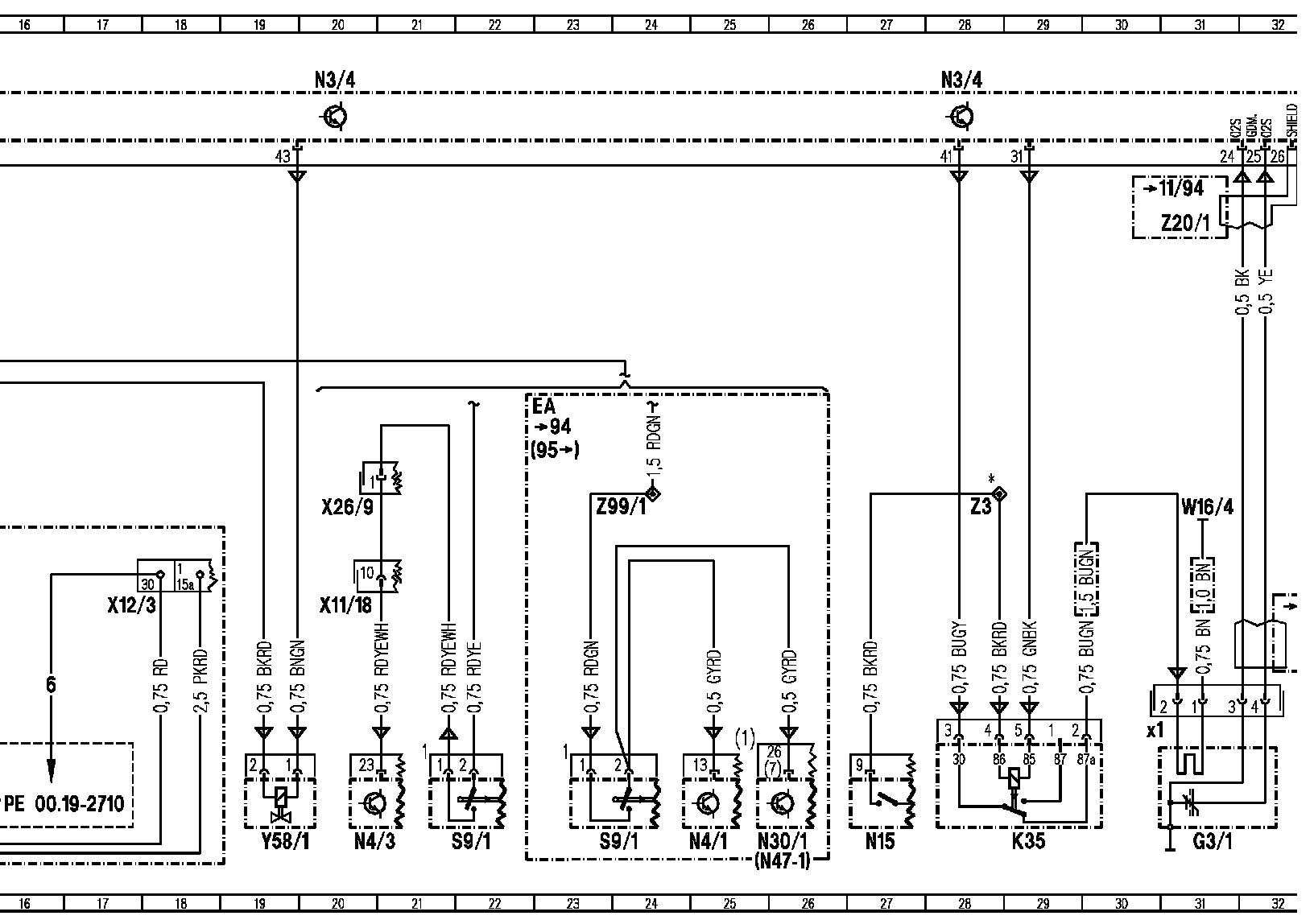

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

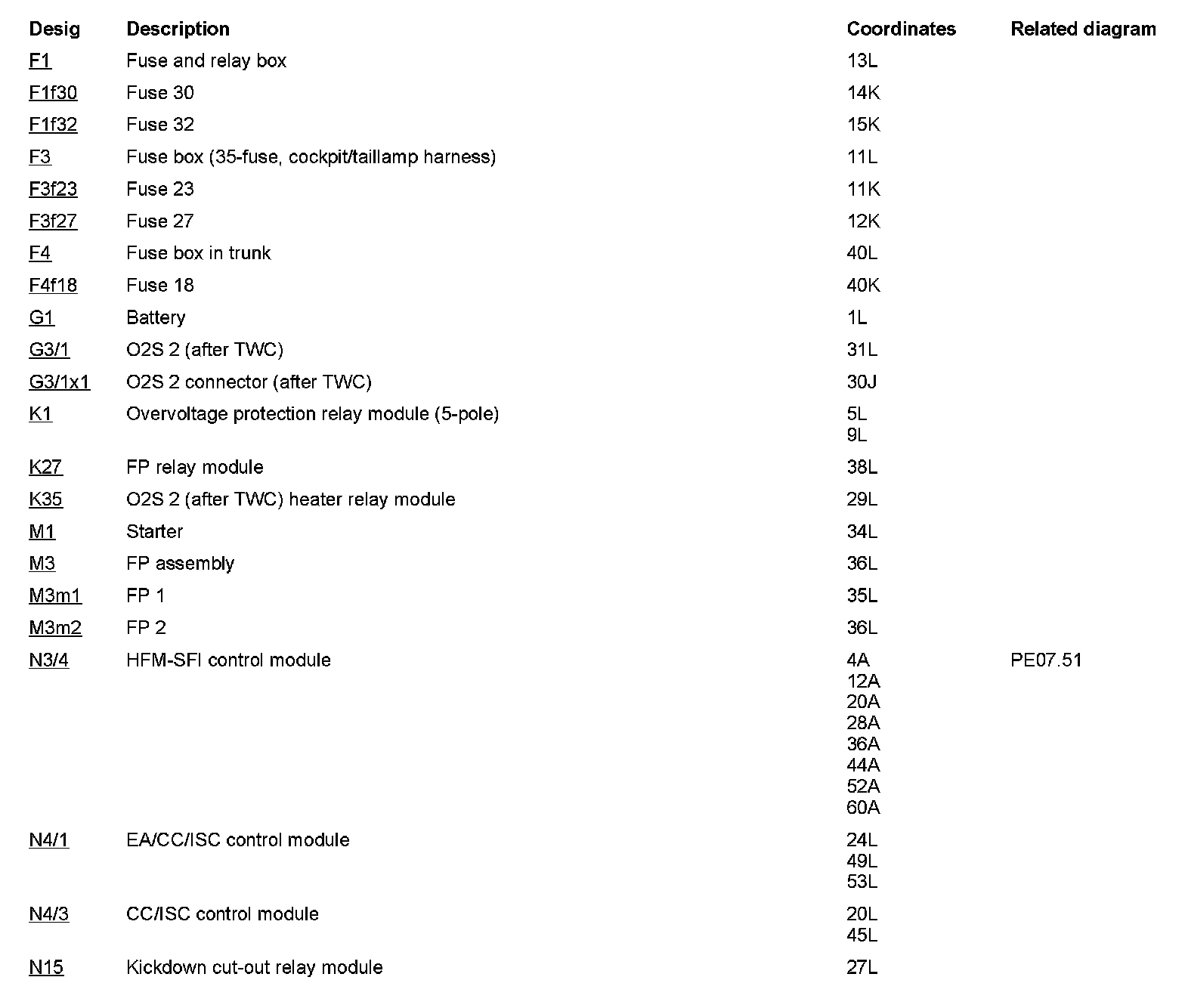

Component Description/Coordinates, F1 To N15:

Component Description/Coordinates, N30/1 To Z3:

Component Description/Coordinates, Z6/18 To Z99/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
