HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000WB

HFM-SFI Fuel Injection/ignition System PE07.51-U-2000WB
- Engine compartment

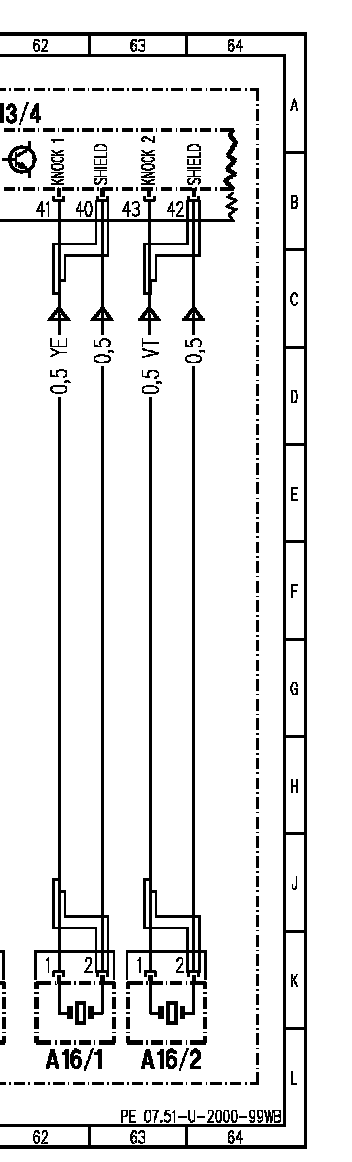

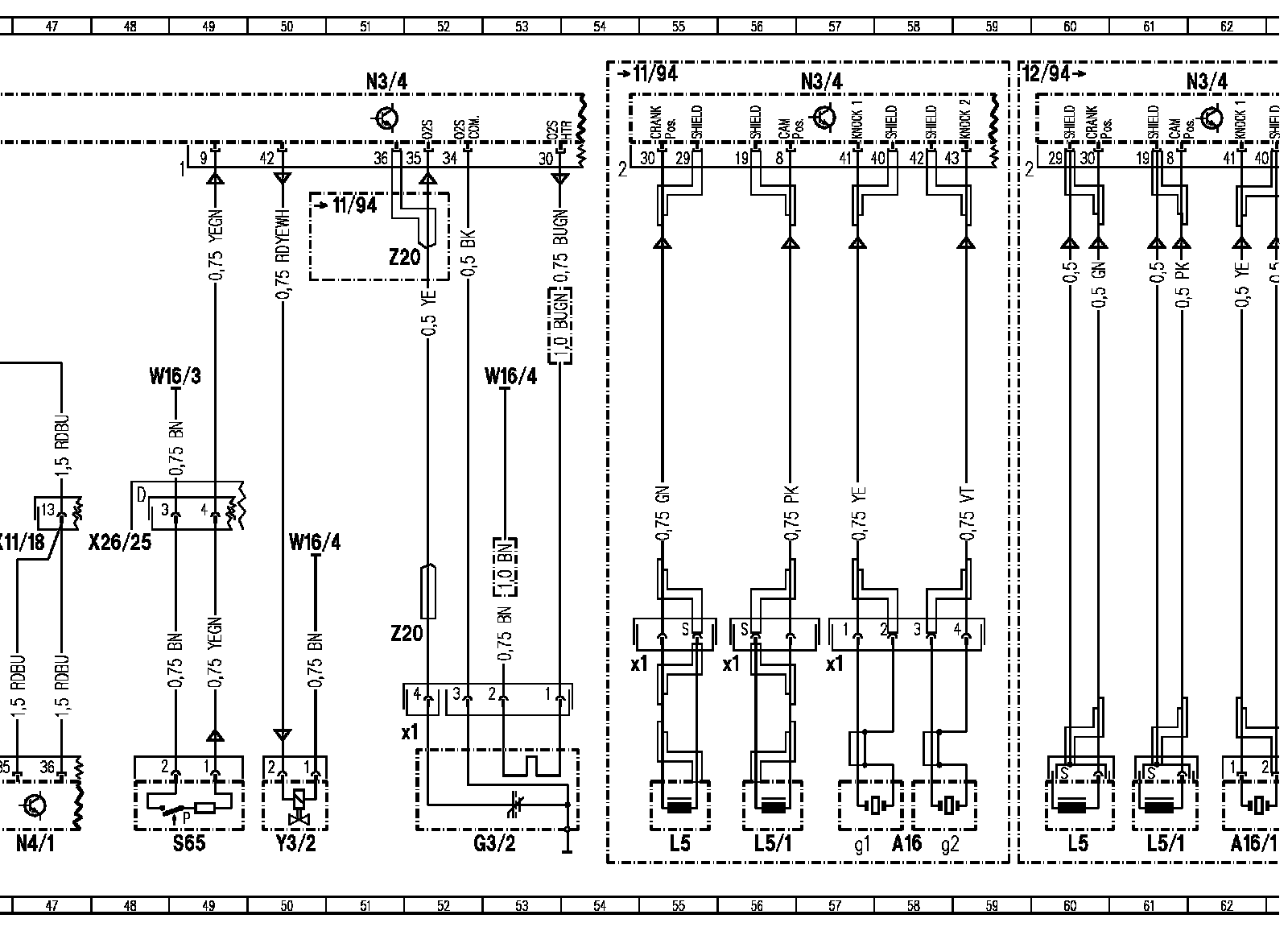

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Component Description/Coordinates, A1 To N3/4:

Component Description/Coordinates, N4/1 To Y22/6:

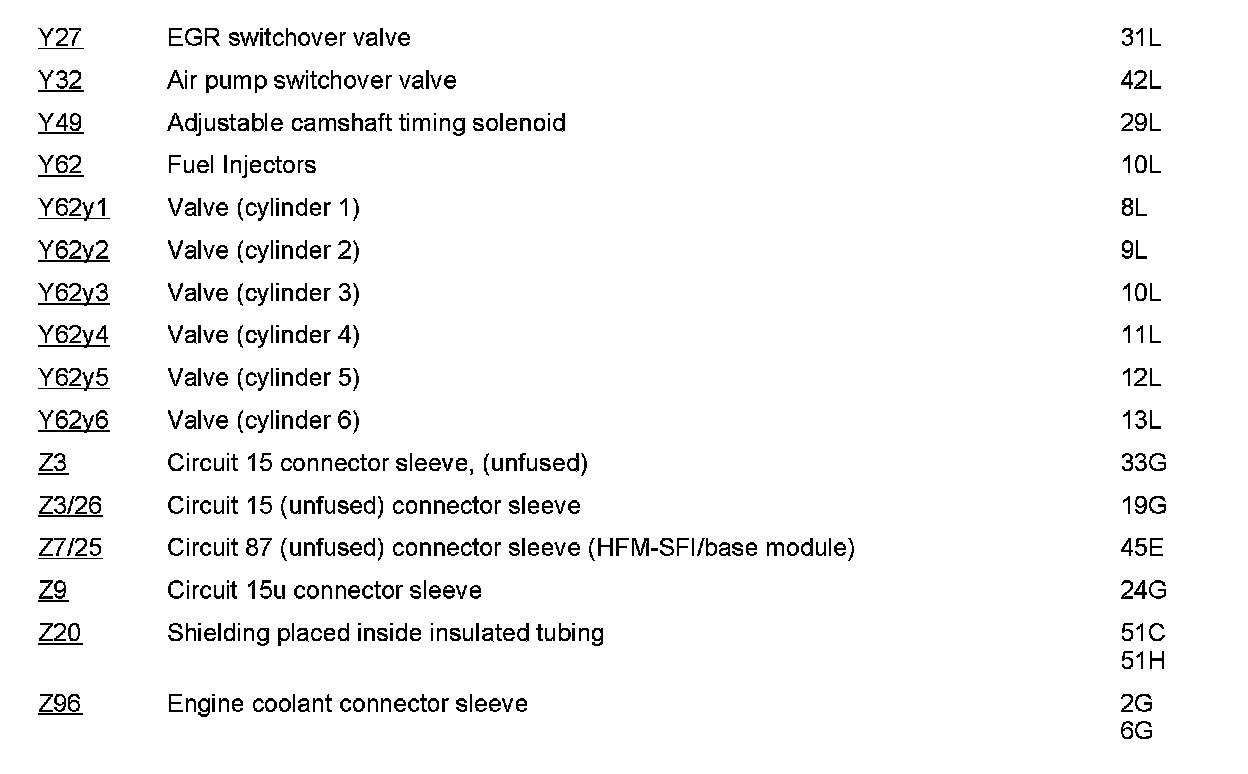

Component Description/Coordinates, Y27 To Z96:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
