Air Register: Diagrams

AIR OUTLETS
Automatic Climate Control/Rear Passenger Compartment Climate Control

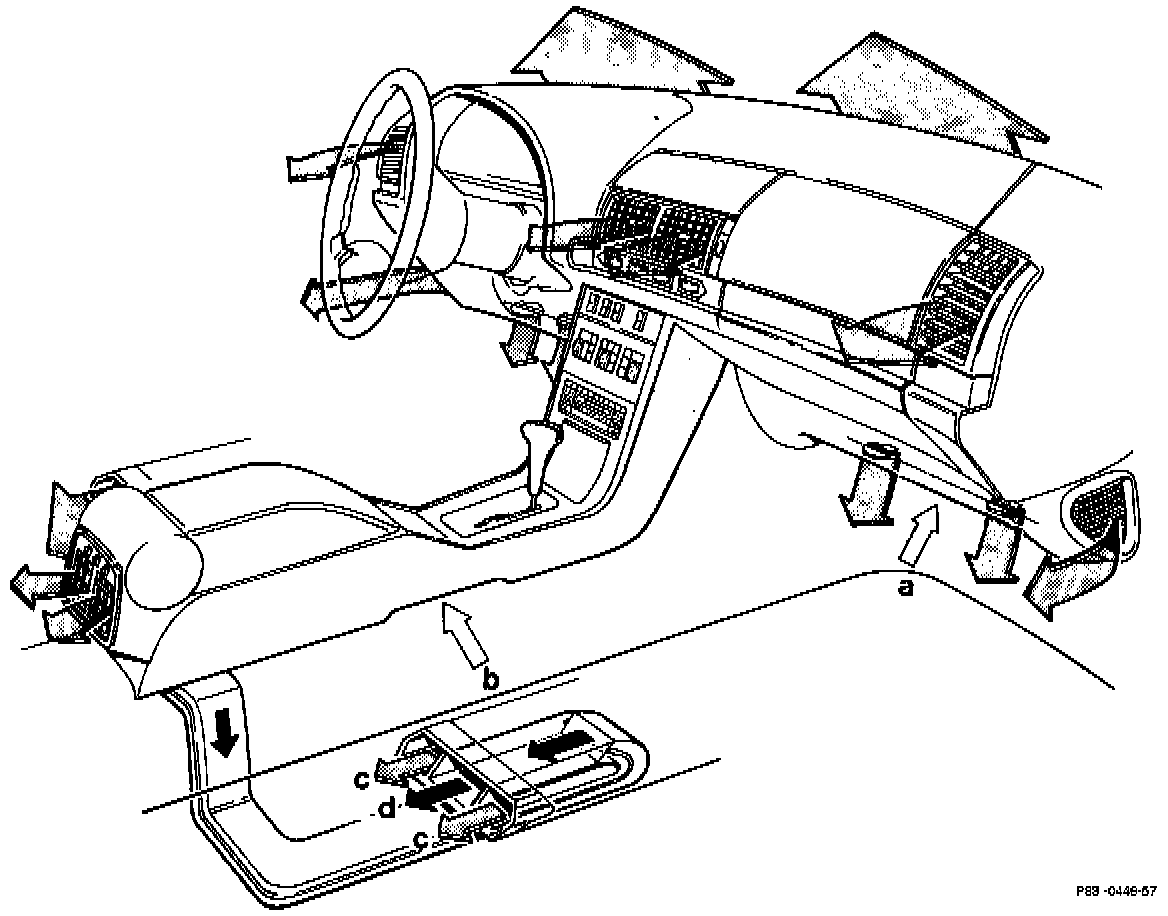

Air Flow - Air Outlets:

Image Reference;
a. Recirculated air intake, automatic climate control
b. Recirculated air intake, rear passenger compartment climate control
c. Left and right rear footwell air outlets, air from automatic climate control
d. Center rear footwell air outlet, air from rear passenger compartment climate control
