Transmission and Drivetrain: Diagrams

5 Speed Automatic Transmission

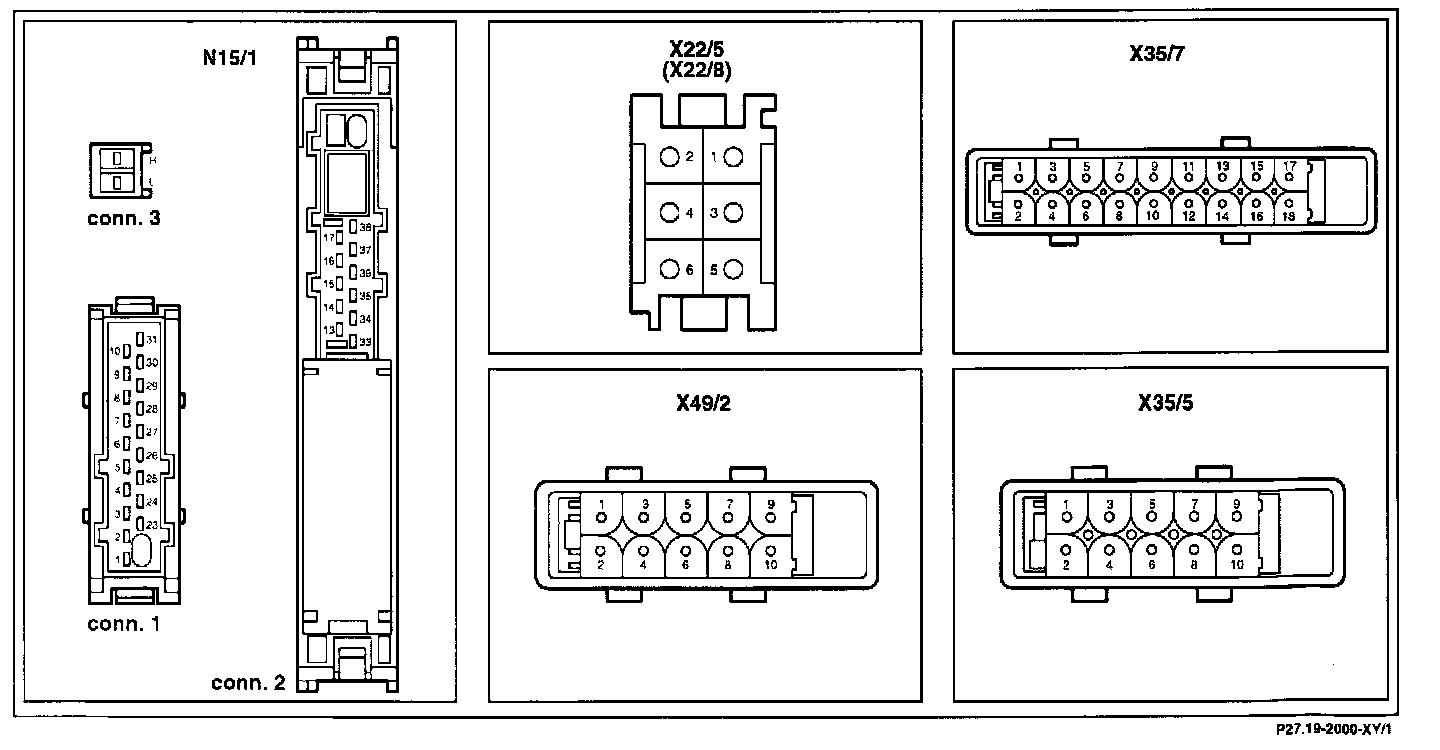

Connector Assignment:

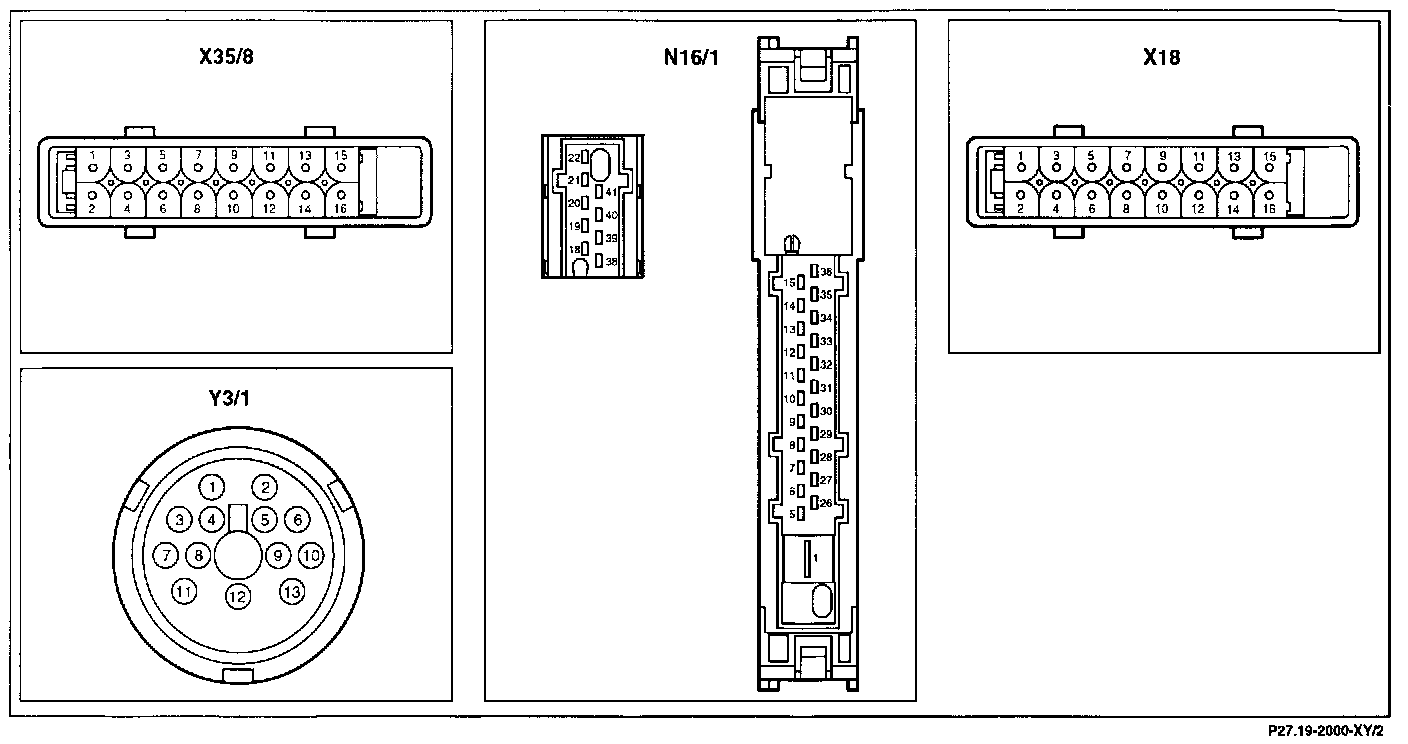

Connector Assignment:

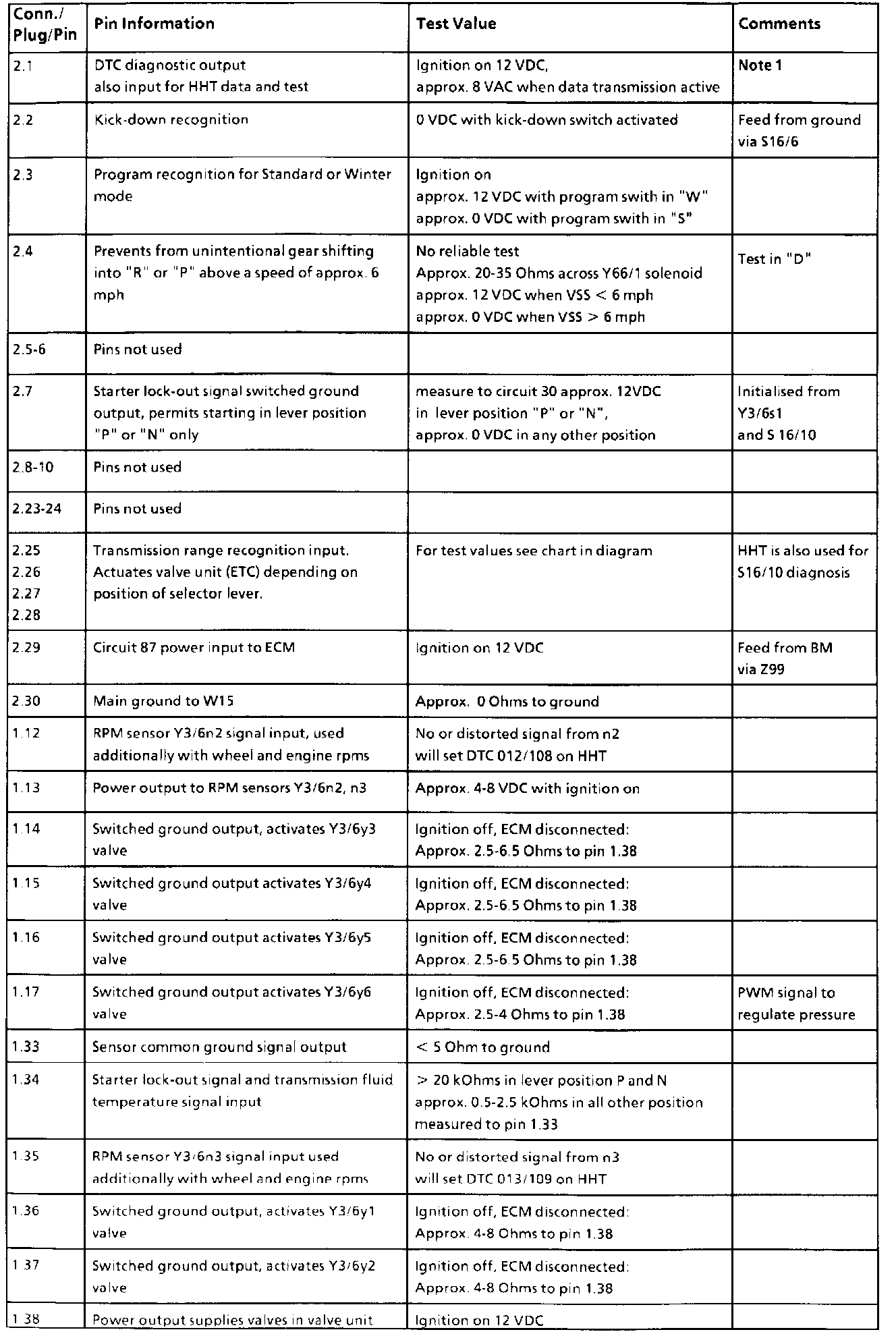

Pin Information, Part 1:

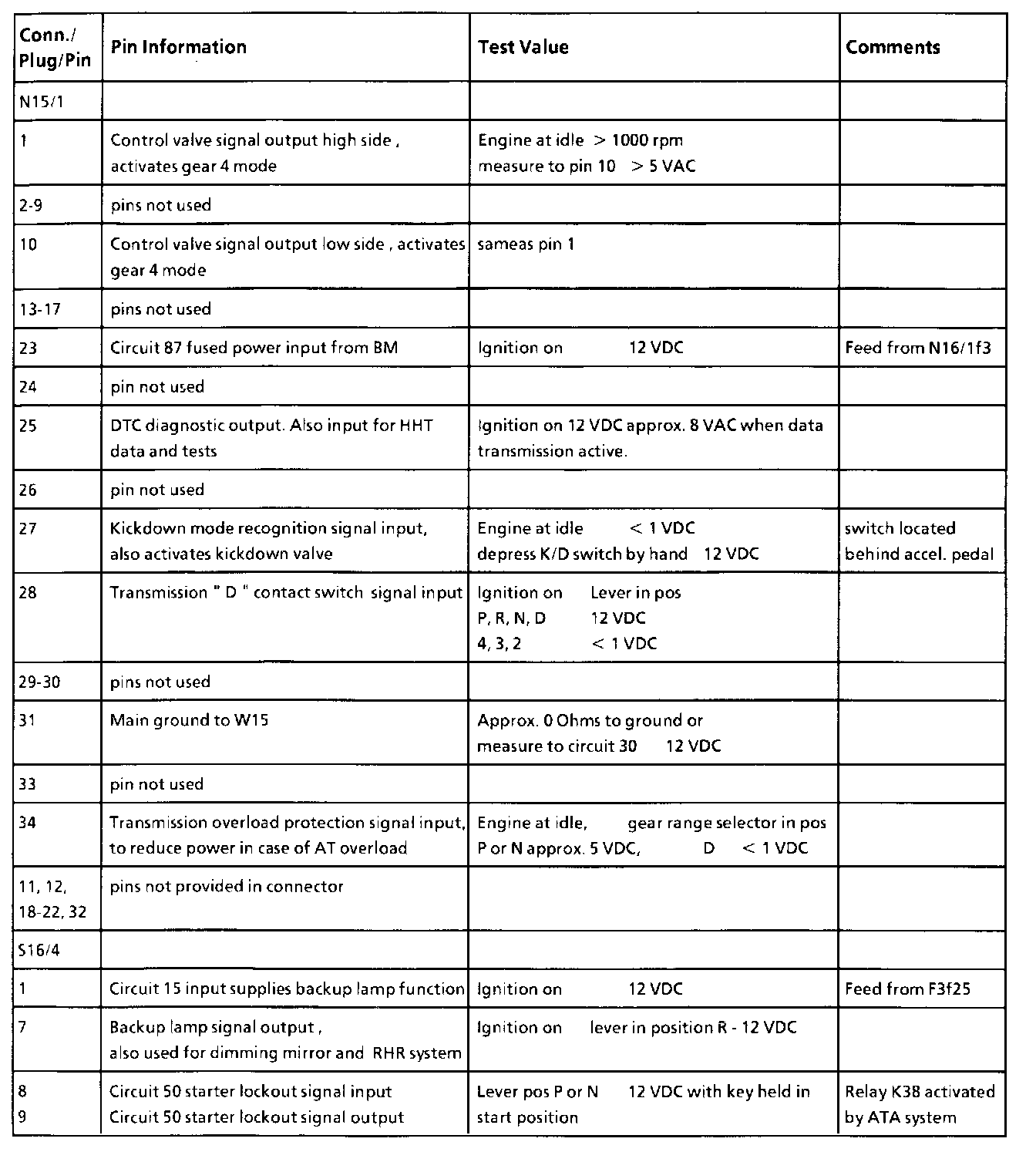

Pin Information, Part 2:

All values measured to ground unless otherwise noted
