Mercedes Benz
>>
1995
>>
S 350 (140.134) L6-3.5L DSL Turbo (603.971)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

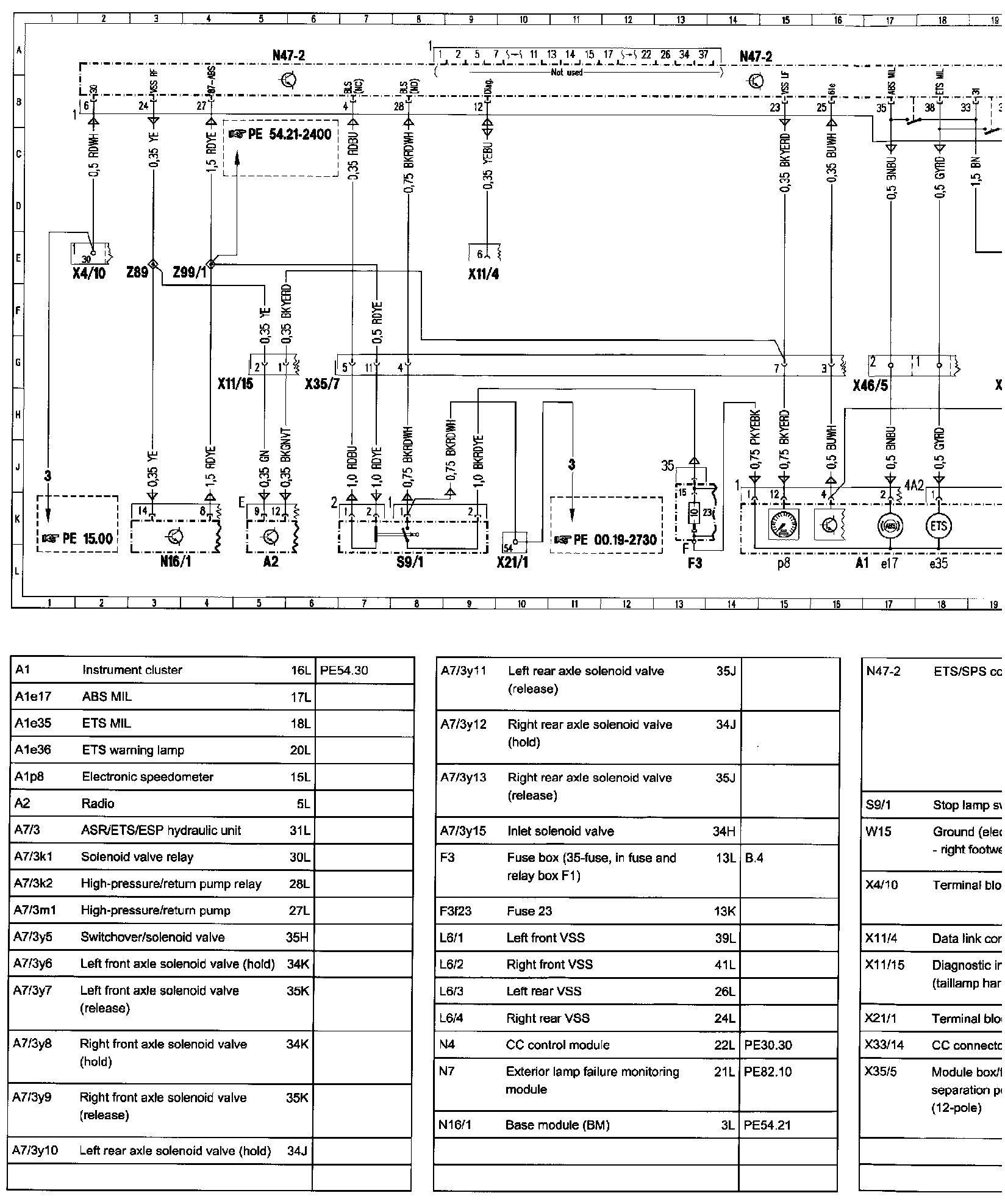

%�p%{q%PE42.35-U-2000-XZ - Electronic Traction Support (ETS):
