Component Locations Not In Passenger Compartment

Component Locations Not In Passenger Compartment:

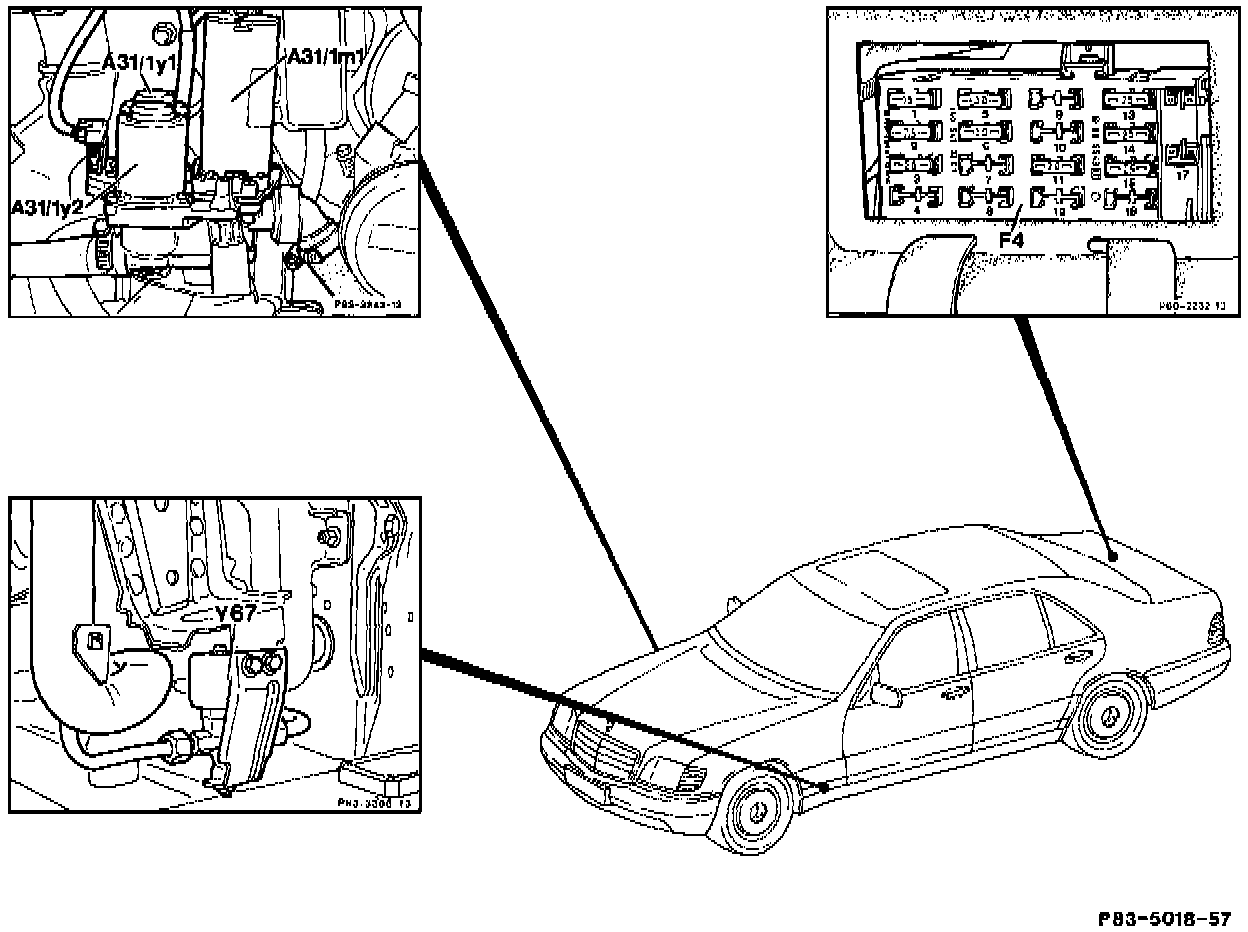

Image Reference:
A31/1m1 Coolant circulation pump (right front wheelhousing)
A31/1y1 Left duovalve
A31/1y2 Right duovalve
F4 Rear fuse box (17-fuse in trunk)
Y67 Rear refrigerant shut-off valve (left front wheelhousing)
