Work Instructions

GROUP: 42

NUMBER: 331

DATE: March 1995

SUBJECT:
MODEL 140, MODEL YEAR 1995
DE-BURRING AND INSPECTION OF REAR AXLE VEHICLE SPEED SIGNAL (VSS) SENSOR MOUNTING BORES





Effective Serial Number Range

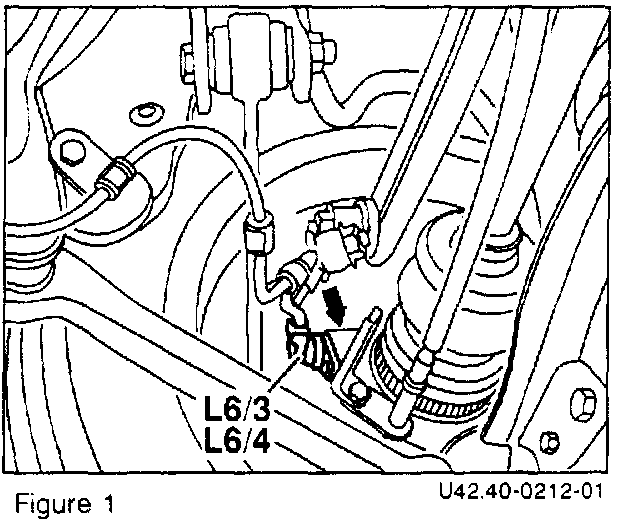

On vehicles with ETS/ASR within the chassis end number range given in the table shown, the mounting bores (arrow, Figure 1) for the rear axle VSS sensors (L6/3, L6/4) must be de-burred with a small magnet and inspected.

Approximately 600 vehicles are affected. Upon arrival of vehicles for repair, check Vehicle Master Inquiry (VMI). A list of vehicles is being sent via MB Net, which contains the vehicles on our record as being in your dealer inventory or sold by your dealer.

Procedure





1. Remove self-locking allen bolts (a, Figure 2) securing left and right rear axle VSS sensors (L6/3, L6/4) to mounting bores (b).

NOTE:
Always replace with new self-locking allen bolts (never reuse) (a, Figure 2).

Tightening torque:
Torque allen bolts (a, Figure 2) to 8 +/- 2 Nm.

2. Remove VSS sensors (L6/4, L6/3, Figure 2) from mounting bores (b).

3. Remove foreign material from tip of VSS sensor that may be present.

4. Run a small magnet through the left and right mounting bores in order to remove any burr(s) that may be present. Inspect mounting bores to ensure that burrs (if any) have been removed from the bore.

Note:
Lightly lubricate mounting bores (b, Figure 2) with long-term lubricating grease (NLGI Class 2) e.g. Molykote Longterm 2 Plus (manufactured by Dow Corning).





Parts Information





Operation:
VSS sensor mounting bores, de-burr (Repair Code 11)

Warranty Claim Submission Information - Recall Campaign 95-0233





Associated Warranty Claim Submission Information

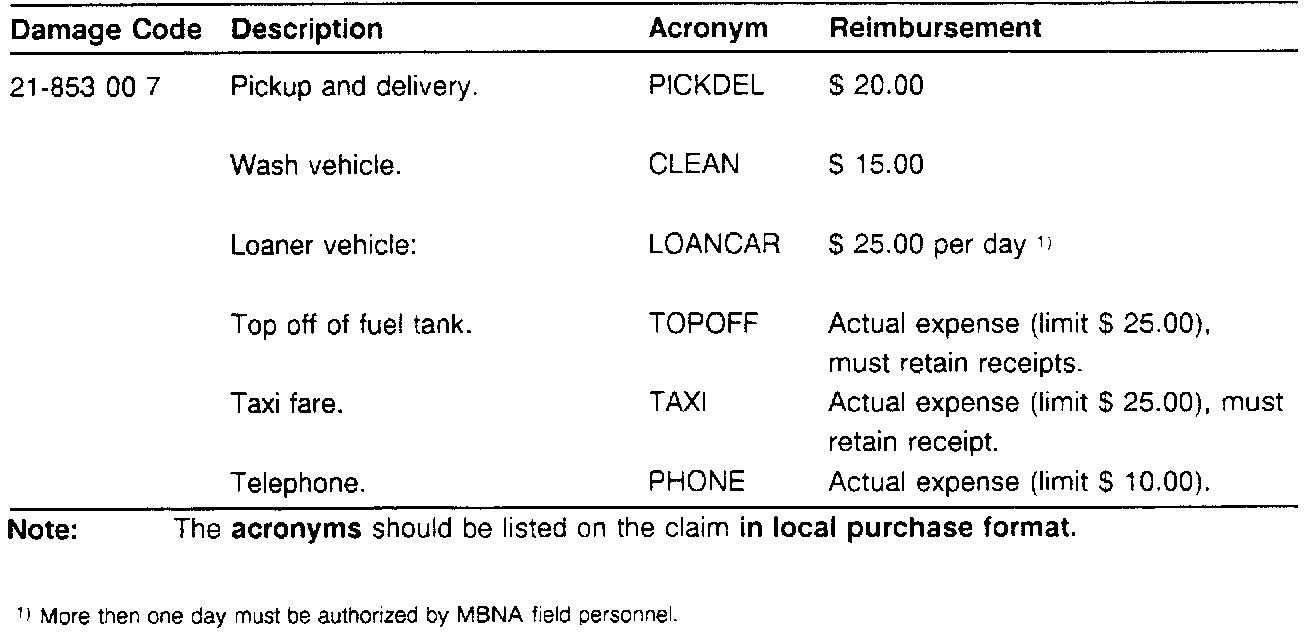

Note:
A separate additional claim is required for reimbursement of customer care related measures.
