Electrical Seat Adjustment (ESA) PE91.29-U-2000XD
Electrical Seat Adjustment (ESA) PE91.29-U-2000XD

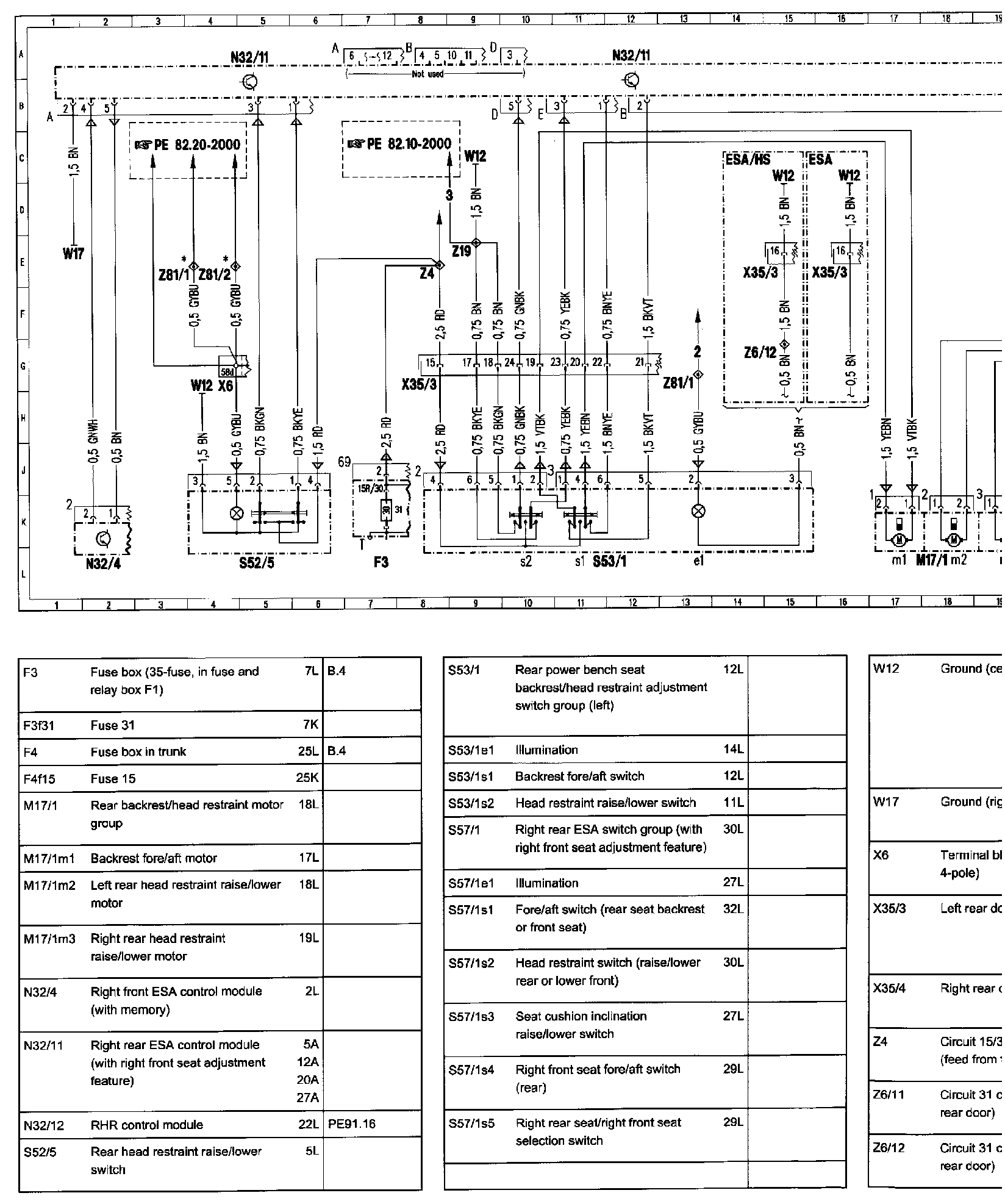

��_N39`NPE91.29-U-2000-XD - Rear Power Seats (Bench Seat):
